180° Panoramic 16MP PanoVu Network Camera for Wide Area Monitoring

Share to:

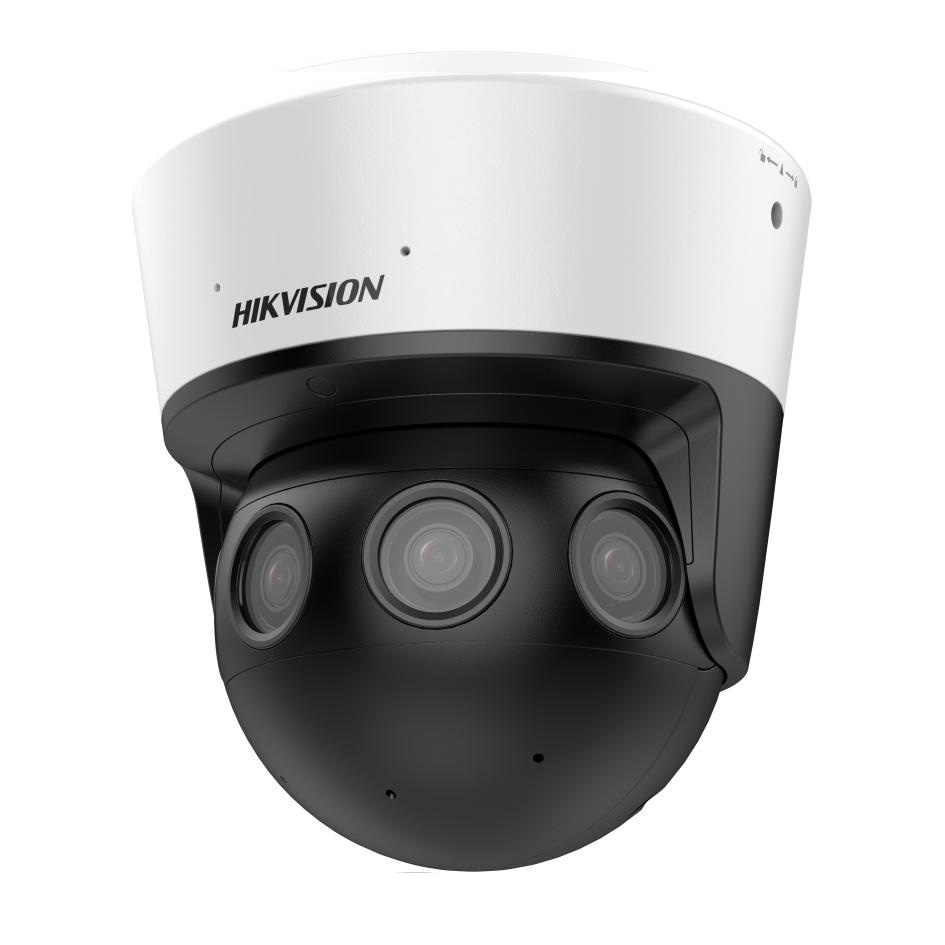

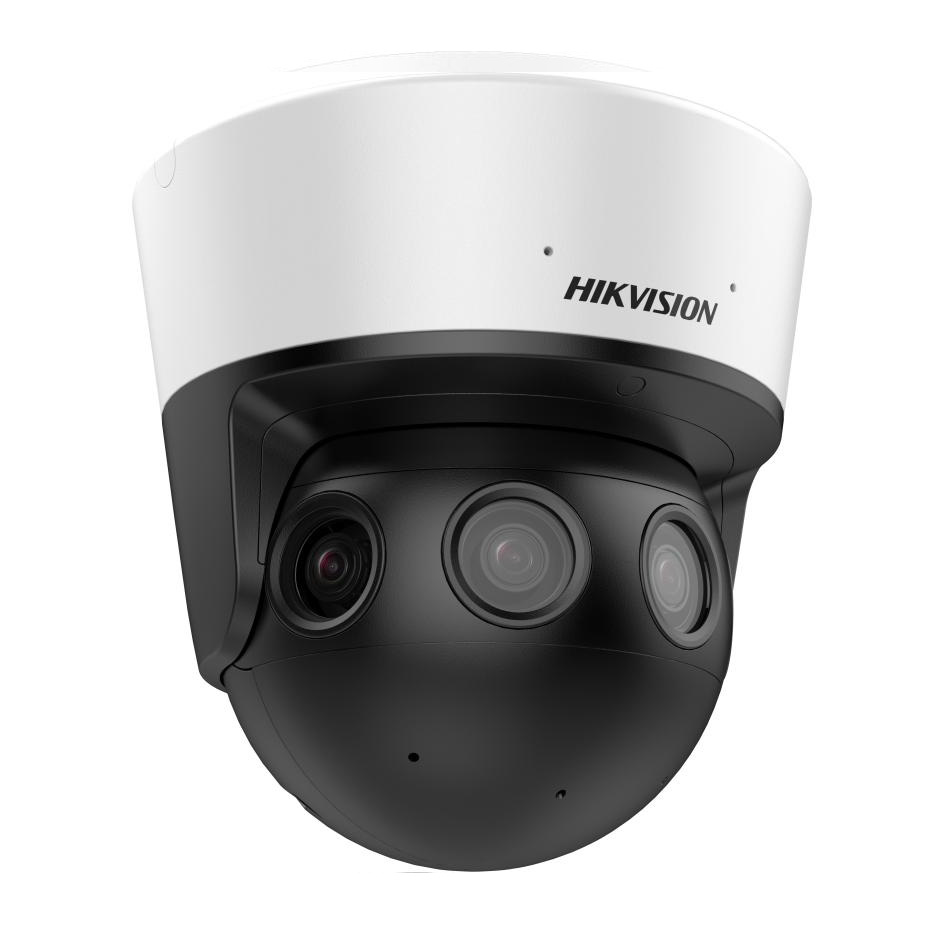

180° Panoramic 16MP PanoVu Network Camera for Wide Area Monitoring

This 16MP PanoVu network camera captures expansive panoramic views with sharp detail, excels in low - light scenarios, withstands tough conditions, and allows for remote angle adjustment.

Characteristics

• 16MP high resolution
• 180° splicing panoramic view
• DarkFighter technology for high - quality imaging in dim light
• Remote motorized pan and tilt for easy angle adjustment
• Built - in heater for ultra - low temperature startup (down to - 40 °C)
• IP67 water and dust resistance, IK10 vandal proofing

Availability:



Inquire Add to Basket

Model:
DS-2CD6944G1-IHS(U)Y
Brand:
Hikvison
Code:
8525801302

DS-2CD6944G1-IHS(U)Y Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	4800 × 2688
Min. Illumination	Color: 0.002 Lux @ (F1.0, AGC ON), B/W: 0.0005 Lux @ (F1.0, AGC ON)
Day & Night	Day, Night, Auto, Schedule, Alarm Trigger (with IR cut filter)
Zoom	Fixed focal (2.8 mm)
Focal Length	2.8 mm
FOV	Single lens: horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5° Panorama: horizontal FOV 185°, vertical FOV 110°
Focus	Fixed (fixed focal lens)
Supplement Light Range	Up to 20 m (IR)
Movement Range (Pan)	0° to 340°
Movement Range (Tilt)	0° to 90°
Main Stream	Panorama mode: 50 Hz: 50 fps (4800 × 2688); 60 Hz: 60 fps (4800 × 2688) Original mode: 50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	Digital WDR
Dimension	Ø214.6 mm × 213 mm (Ø8.45" × 8.39")
Weight	Approx. 4.2 kg (9.25 lb.) (device only)；Approx. 6.2 kg (13.67 lb.) (with package)
Material	Aluminum alloy & plastic
Protection	IP67, IK10；NEMA 4X

Application

Large Public Spaces: Ideal for airports, shopping malls, and train stations, leveraging 180° panoramic view and 16MP high resolution to monitor wide areas with clear detail.
Outdoor Harsh Environments: Suited for parking lots, industrial sites, and cold regions, with IP67, IK10 protection, and ultra - low temperature startup (-40 °C) ensuring reliable operation.
Security - Critical Areas: Perfect for government buildings, data centers, and corporate lobbies, where remote motorized pan/tilt, high - quality imaging , and robust durability meet strict surveillance needs.

Product standards

Imaging: 16MP high resolution for clear detail; DarkFighter technology for high - quality color imaging in dim light.
Panoramic & Control: 180° splicing image for full panoramic coverage; remote motorized pan/tilt for easy angle adjustment.
Environmental Adaptation: Built - in heater for ultra - low temperature startup (-40 °C); IP67 water/dust resistance, IK10 vandal proofing.
