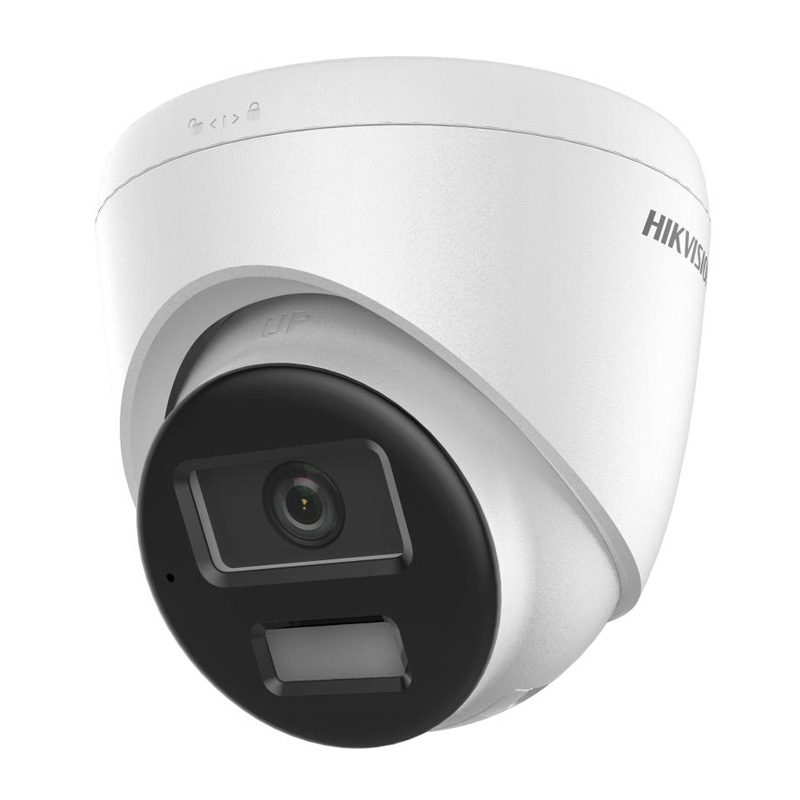

8MP Smart Hybrid Light Fixed Turret Network Camera Human And Vehicle Detection

This 8 MP Smart Hybrid Light Fixed Turret Network Camera delivers sharp imaging, enables smart human and vehicle detection, and ensures reliable surveillance with advanced lighting, two - way audio, and durable design.

Characteristics

• 8 MP resolution for clear imaging
• Supports Human and Vehicle Detection
• Smart Hybrid Light for long - range visibility
• Efficient H.265+ compression technology
• Supports on - board storage up to 512 GB (SD card slot)
• Built - in two - way audio for real - time security
• IP67 water and dust resistance

Lens:	2.8mm 4mm
Availability:



Inquire Add to Basket

Model:
DS-2CD1383G2-LIUF/SL
Brand:
Hikvison
Code:
8525801302

DS-2CD1383G2-LIUF/SL Datasheet

Image Sensor	1/2.7" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Focal Length	2.8 mm, 4 mm (optional)
FOV	2.8 mm: horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm: horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
Supplement Light Range	Up to 30 m
Movement Range (Pan)	0° to 360°
Movement Range (Tilt)	0° to 75°
Main Stream	50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	120 dB
Dimension	Ø110 mm × 102.7 mm (Ø4.33" × 4.04")
Weight	Approx. 385 g (0.85 lb.) (device only); Approx. 586 g (1.3 lb.) (with package)
Material	Metal & Plastic
Protection	IP67 (IEC 60529-2013)

Application

Commercial Security: Luxury shopping malls, corporate headquarters, art galleries (8MP ultra - high resolution for detailed imaging, smart hybrid light for long - range visibility, two - way audio for interactive security).
Precision Monitoring Scenarios: Airport terminals, railway stations, large - scale warehouses (supports Human and Vehicle Detection for targeted surveillance, efficient H.265+ compression for smooth data transmission, on - board storage up to 512GB for local recording).

Product standards

Imaging: 8MP resolution, efficient H.265+ compression technology.
Smart Features: Supports Human and Vehicle Detection, smart hybrid light with long - range coverage.
Durability: IP67 water and dust resistance, support for on - board storage up to 512GB (SD card slot).
Audio: Built - in two - way audio for real - time security, network - compatible for remote access.
