4K Fixed Bullet Network Camera HighDefinition Security

Share to:

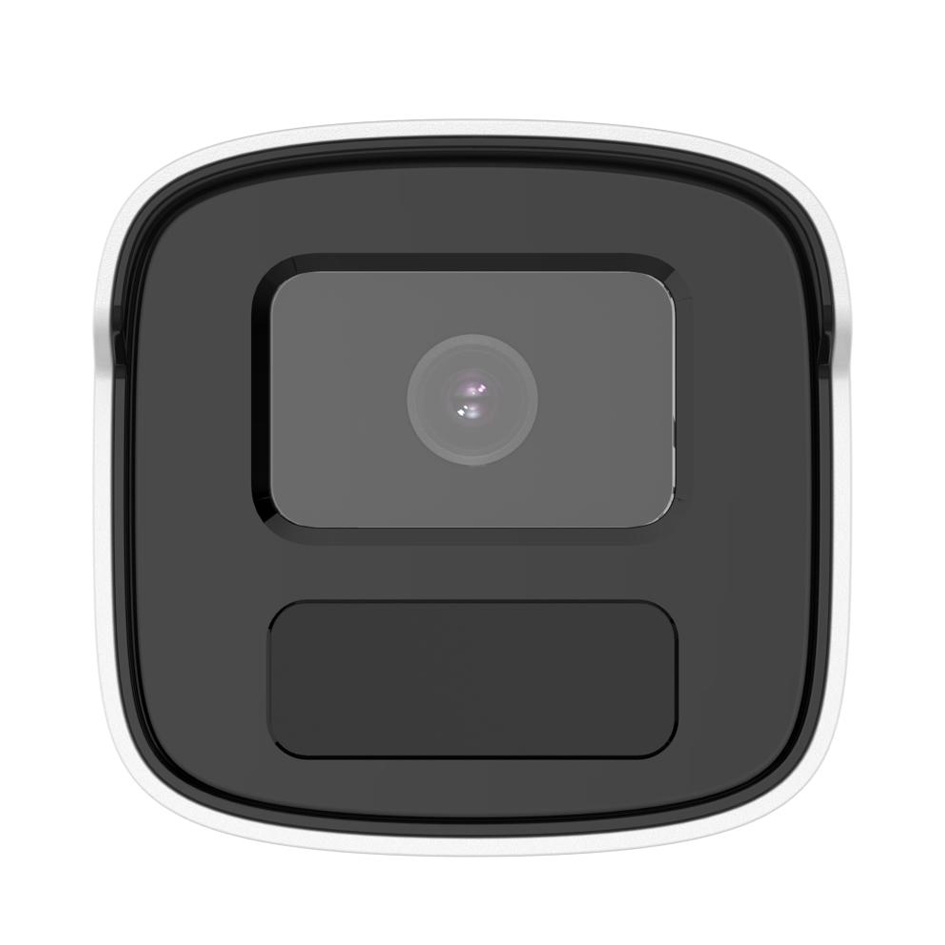

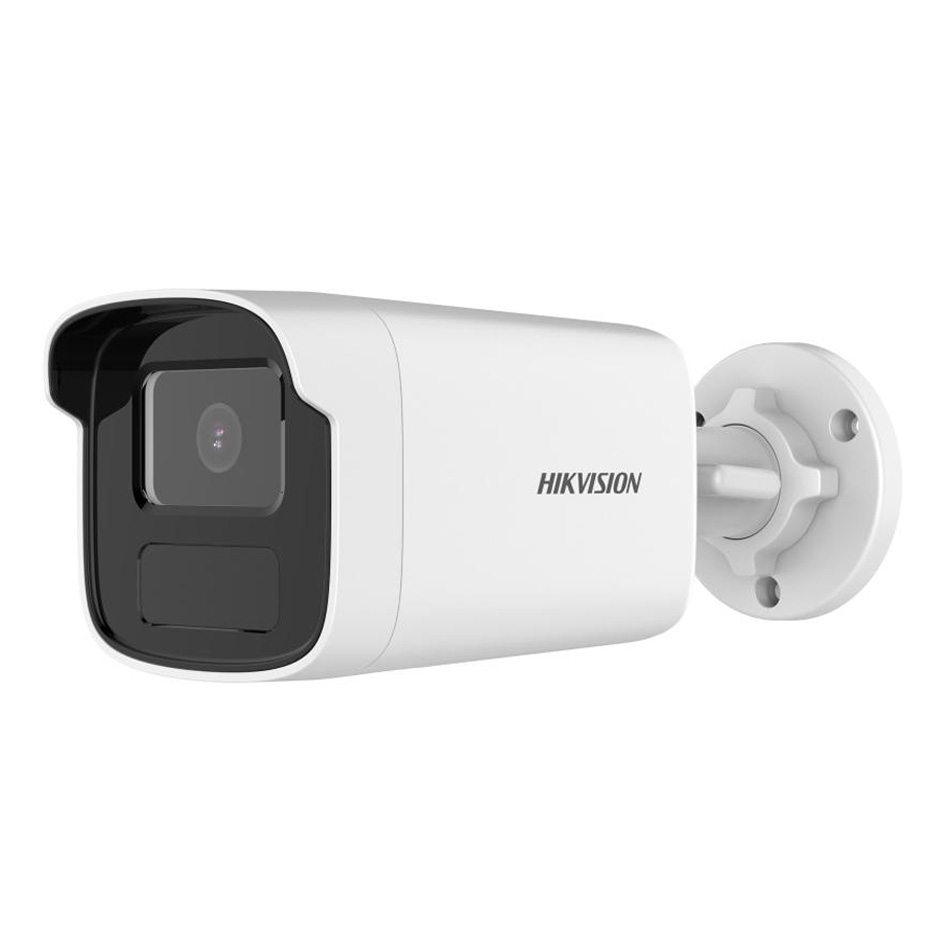

4K Fixed Bullet Network Camera HighDefinition Security

This 4K Fixed Bullet Network Camera delivers high-quality imaging, handles challenging lighting, and ensures durable, convenient surveillance.

Characteristics

• 8 MP resolution for high-quality imaging
• 120 dB WDR for clear imaging against strong backlight
• Efficient H.265+ compression technology
• IP67 water and dust resistance
• Easy installation with Power over Ethernet (PoE)

Availability:



Inquire Add to Basket

Model:
DS-2CD1T83G0-I(UF)
Brand:
Hikvison
Code:
8525801302

DS-2CD1T83G0-I(UF) Datasheet

Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Focal Length	2.8 mm, 4 mm (optional)
FOV	2.8 mm: horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° 4 mm: horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
Supplement Light Range	Up to 30 m
Movement Range	0° to 360°
Movement Range	0° to 75°
Main Stream	50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Video compression: H.265+/H.264+/H.265/H.264
Wide Dynamic Range (WDR)	120 dB
Dimension	Ø110 mm × 85.3 mm (Ø4.3" × 3.4")
Weight	Approx. 340 g (0.7 lb.) (device only); Approx. 550 g (1.2 lb.) (with package)
Material	Metal & Plastic
Protection	IP67 (IEC 60529-2013)

Application

Indoor/Outdoor Surveillance: Offices, stores, small factories (8MP for clear imaging, IP67 for all - weather use, built - in mic for audio security).
Low - Light Scenarios: Bars, warehouses (EXIR 2.0 for night vision, 120 dB WDR for backlight handling).
