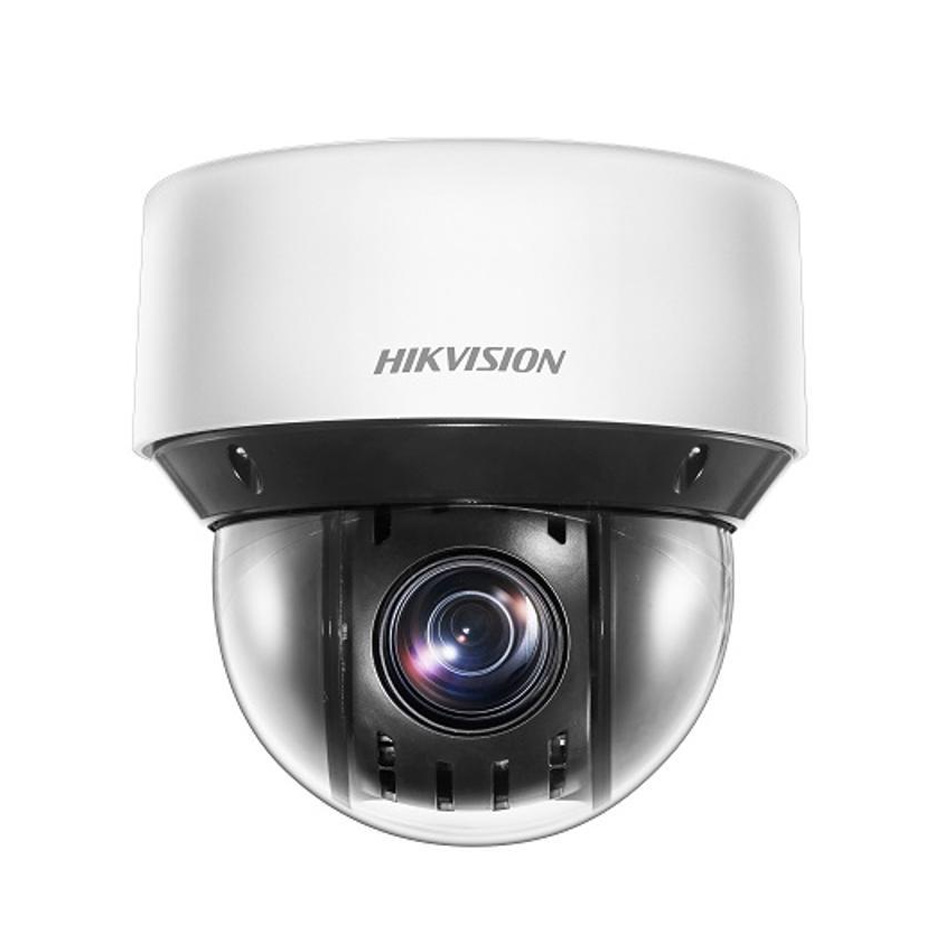

4MP 25X DarkFighter IR Acusense Network Speed Dome Camera

Share to:

4MP 25X DarkFighter IR Acusense Network Speed Dome Camera

This 4 MP 25X Network Speed Dome, powered by DarkFighter IR Acusense, offers high-quality imaging, excellent low-light performance, and smart target classification for comprehensive surveillance.

Characteristics

• 4 MP resolution with up to 30 fps for clear imaging
• Powered-by-DarkFighter technology for superior low-light performance
• 120 dB WDR technology for clear imaging against strong backlighting
• Pan and tilt ability to monitor zones of interest
• 25× optical zoom for closer viewing in expansive areas
• Up to 50 m IR range for night safety

Availability:



Inquire Add to Basket

Model:
DS-2DE4A425IWG-E
Brand:
Hikvison
Code:
8525801302

DS-2DE4A425IWG-E Datasheet

Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Zoom	25 × optical, 16 × digital
Focal Length	4.8 to 120 mm
FOV	Horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3°
Focus	Auto, semi-auto, manual
Zoom Speed	Approx. 3.4 s
Supplement Light Range	IR Distance: up to 50 m
Movement Range (Pan)	0° to 360°
Movement Range (Tilt)	-5° to 90°
Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	120 dB
Dimension	Ø 169 mm × 161 mm (Ø 6.65" × 6.34")
Weight	Approx. 2.45 kg (5.40 lb.)
Protection	IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Application

Large - Scale Venues: Stadiums, airports, shopping malls (25× optical zoom and pan - tilt ability enable monitoring of expansive areas and specific zones of interest).
Low - Light Environments: Parking lots, dark streets (powered - by - DarkFighter technology and up to 50 m IR range ensure clear imaging at night).
Smart Security Areas: Industrial parks, residential communities (deep learning - based human and vehicle target classification for accurate security alerts; IP66 protection for all - weather use).

Product standards

Imaging: 4 MP resolution with up to 30 fps; 120 dB WDR technology for clear imaging against strong backlighting.
Zoom: 25× optical zoom; pan (0° to 360°) and tilt (-5° to 90°) with configurable speed.
Intelligence: Deep learning - based human/vehicle classification; IP66 water and dust resistance; up to 50 m IR night vision range.
