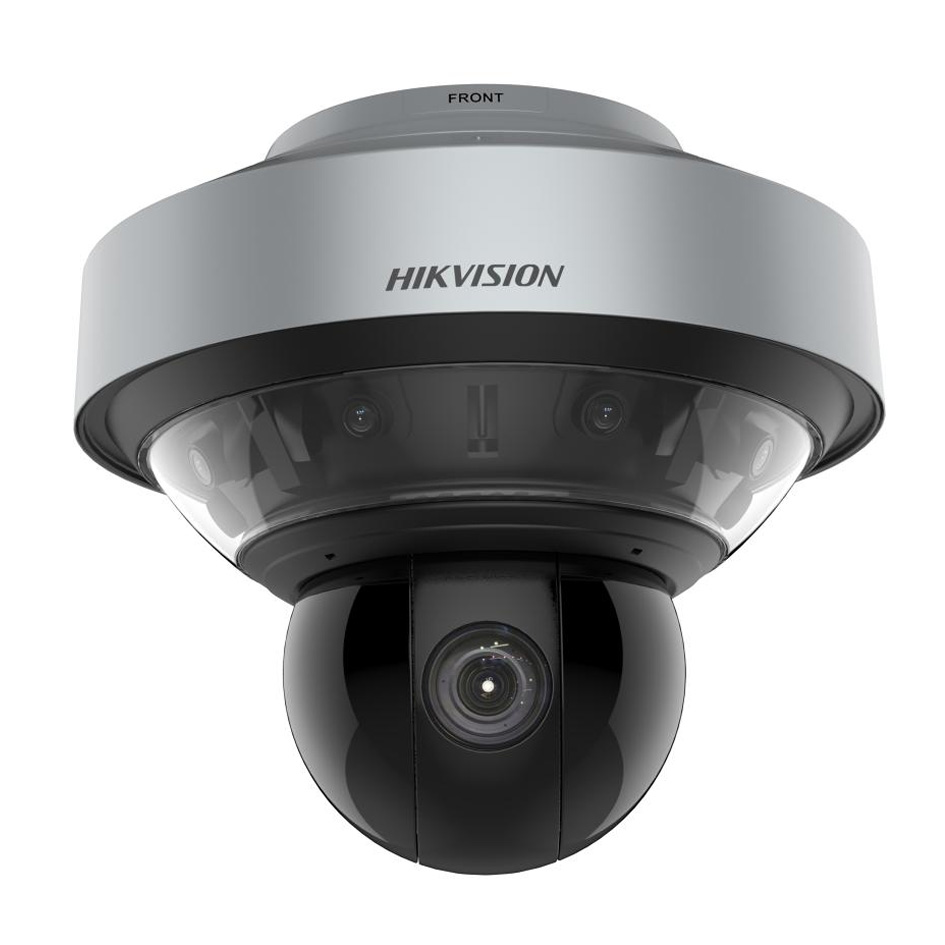

180° Panoramic PTZ Camera 8MP 40x Optical Zoom Smart Tracking

Share to:

180° Panoramic PTZ Camera 8MP 40x Optical Zoom Smart Tracking

This 8MP 180° panoramic & PTZ camera enables wide - ranging, clear surveillance with strong low - light performance, flexible zoom, and stable tracking.

Characteristics

• 8MP resolution for high - quality imaging, up to 4096 × 1800 @30 fps for panoramic channels
• Excellent low - light performance with DarkFighter technology
• 40x optical zoom and 16x digital zoom for close - up views over expansive areas
• Up to 250 m IR night vision range
• Automatic PTZ detail display with one click on panoramic channel

Availability:



Inquire Add to Basket

Model:
DS-2DP8A440IXG-LEF/408(F0)(B)
Brand:
Hikvison
Code:
8525801302

DS-2DP8A440IXG-LEF/408(F0)(B) Datasheet

Image Sensor	1/1.8" progressive scan CMOS
Max. Resolution	4096 × 1800
Min. Illumination	Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON) PTZ channel: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Day & Night	Day, night, auto, scheduled-switch (with IR cut filter)
Zoom	[PTZ channel] 40x optical, 16x digital
Focal Length	[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
FOV	[Panoramic channel] Horizontal FOV 360°, vertical FOV 85° [PTZ channel] Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
Focus	Auto, semi-auto, manual, rapid focus
Zoom Speed	[PTZ channel] Approx. 5.6 s
Supplement Light Range	Up to 250 m (IR)
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Main Stream	[Panoramic channel]: 50Hz:25fps (4096×1800,3840×1680,2720×1192) 60Hz: 30fps (4096×1800,3840×1680,2720×1192) [PTZ channel]: 50Hz:25fps (2560x1440,1920×1080,1280×960,1280x720) 60Hz:30fps (2560x1440,1920x1080,1280x960,1280x720) Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	[PTZ channel] 120 dB
Dimension	Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Weight	Approx. 18 kg (39.68 lb.)
Material	ADC12
Protection	IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Application

Large Scale Surveillance Areas: Stadiums, industrial parks, large campuses (360° panoramic coverage + 40x PTZ zoom balance wide monitoring and close-up details).
Low Light Environments: Nighttime logistics hubs, remote perimeters (ultra-low illumination performance ensures clear imaging in dim conditions).
Smart Tracking Scenarios: Traffic hubs, public squares (auto-tracking and multi-target switching support real-time monitoring of moving objects like crowds or vehicles).

Product standards

Imaging: 8MP resolution (4096×1800); panoramic 360° FOV + PTZ 56.6°-1.8° adjustable view for full-range monitoring.
Night Vision: Up to 250m IR range; 40x optical + 16x digital zoom for long-distance detail capture.
Durability: IP67, IK10 protection; supports face capture, multi-target detection, and smart tracking for reliable outdoor use.
