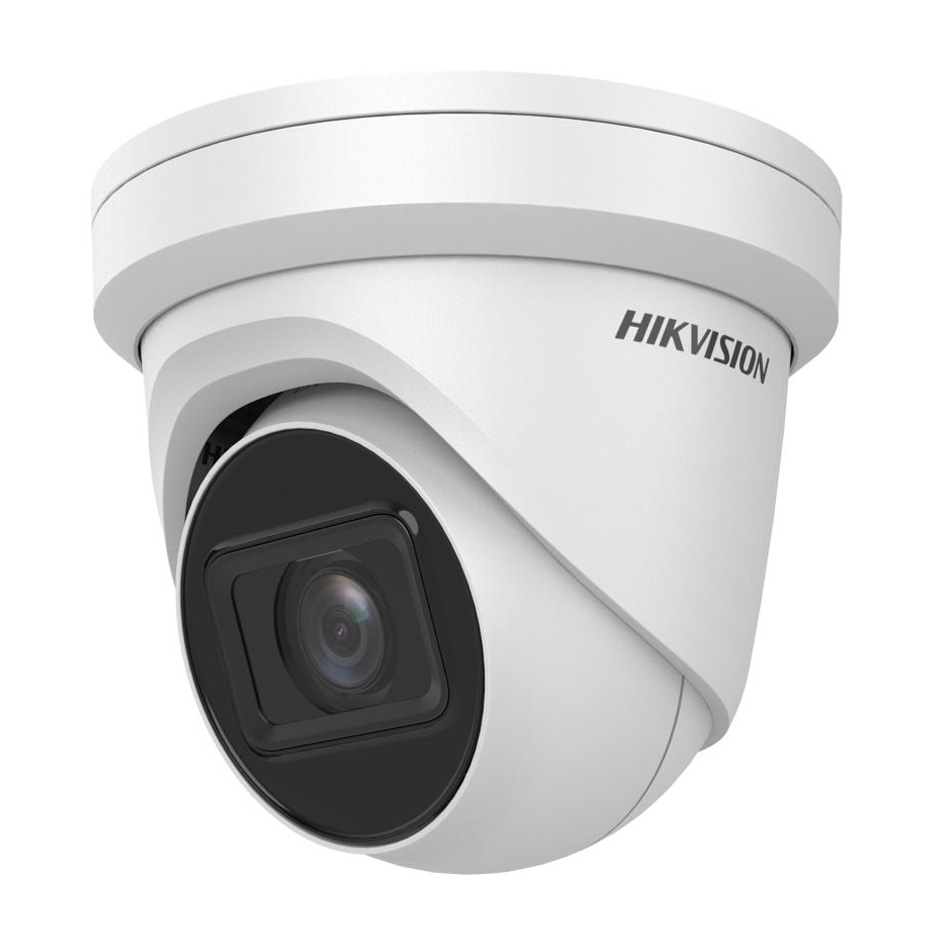

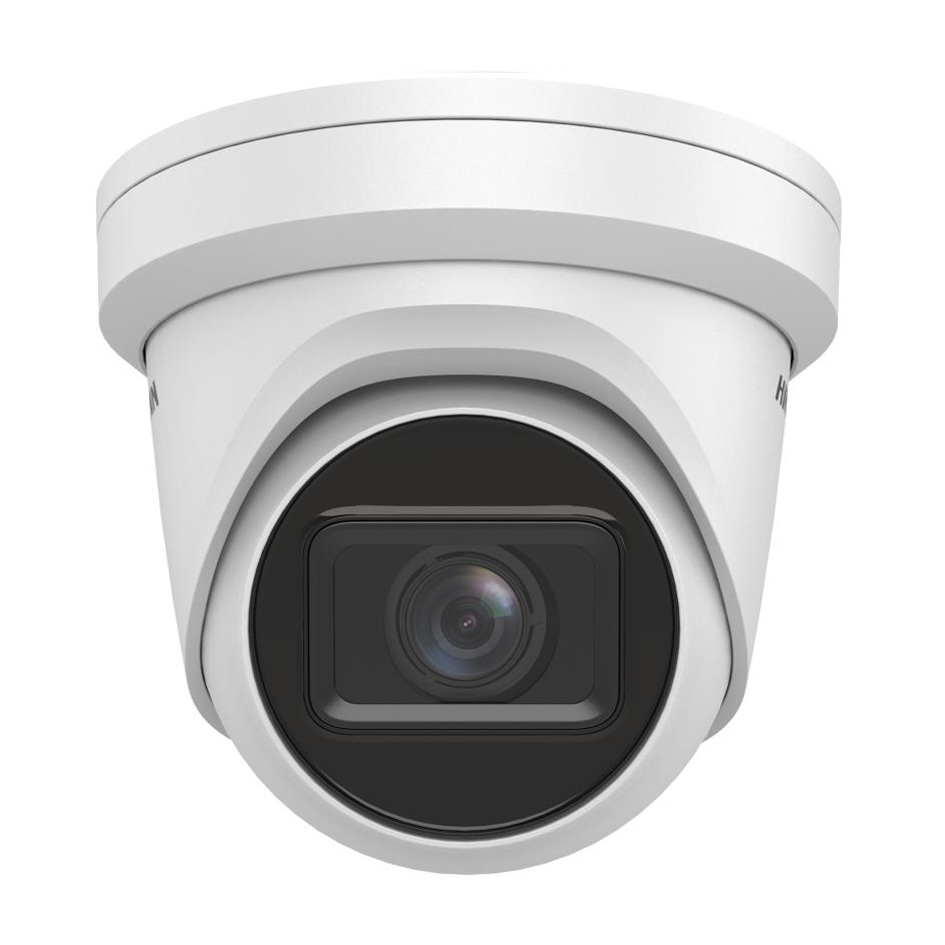

4K Turret Network Camera Acusense Motorized Varifocal Lens

Share to:

4K Turret Network Camera Acusense Motorized Varifocal Lens

This 4K Acusense Motorized Varifocal Turret Network Camera delivers high-quality imaging, excellent low-light performance, and smart target classification with durable and versatile features.

Characteristics

• 8 MP resolution for high-quality imaging
• Motorized varifocal lens for easy installation and monitoring
• Powered-by-DarkFighter technology for excellent low-light performance
• Efficient H.265+ compression technology
• 120 dB true WDR technology for clear imaging against strong backlight
• Deep learning-based human and vehicle target classification

Availability:



Inquire Add to Basket

Model:
DS-2CD2H86G2T-IZS
Brand:
Hikvison
Code:
8525801302

DS-2CD2H86G2T-IZS Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.003 Lux @ (F1.4, AGC ON); B/W: 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Focal Length	2.8 to 12 mm
FOV	Horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
Supplement Light Range	Up to 40 m
Movement Range (Pan)	0° to 360°
Movement Range (Tilt)	0° to 75°
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Video compression: H.265/H.264/H.264+/H.265+
Wide Dynamic Range (WDR)	120 dB
Dimension	Ø138.3 mm × 126 mm (Ø5.5" × 5.0")
Weight	Approx. 850 g (1.9 lb.) (device only); Approx. 1145 g (2.5 lb.) (with package)
Material	Metal
Protection	IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Application

Indoor/Outdoor Monitoring: Shopping malls, parking lots, building entrances (8 MP resolution, motorized varifocal lens, and IP67 & IK10 protection enable clear, flexible, and durable surveillance in various environments).
Low - Light Areas: Night - time streets, dimly lit warehouses (powered - by - DarkFighter technology ensures excellent low - light performance).
Smart Security Zones: Industrial parks, residential communities (deep learning - based human and vehicle target classification, along with audio and alarm interfaces, provide accurate and responsive security).

Product standards

Imaging: 8 MP resolution for high - quality imaging; efficient H.265+ compression technology; 120 dB true WDR technology for clear imaging against strong backlight.
Lens: Motorized varifocal lens for easy installation and monitoring; powered - by - DarkFighter technology for excellent low - light performance.
Intelligence: Deep learning - based human and vehicle target classification; audio and alarm interfaces available; IP67 water and dust resistance and IK10 vandal proof.
