2MP Acusense PTZ Camera Outdoor Mini Design Smart Security

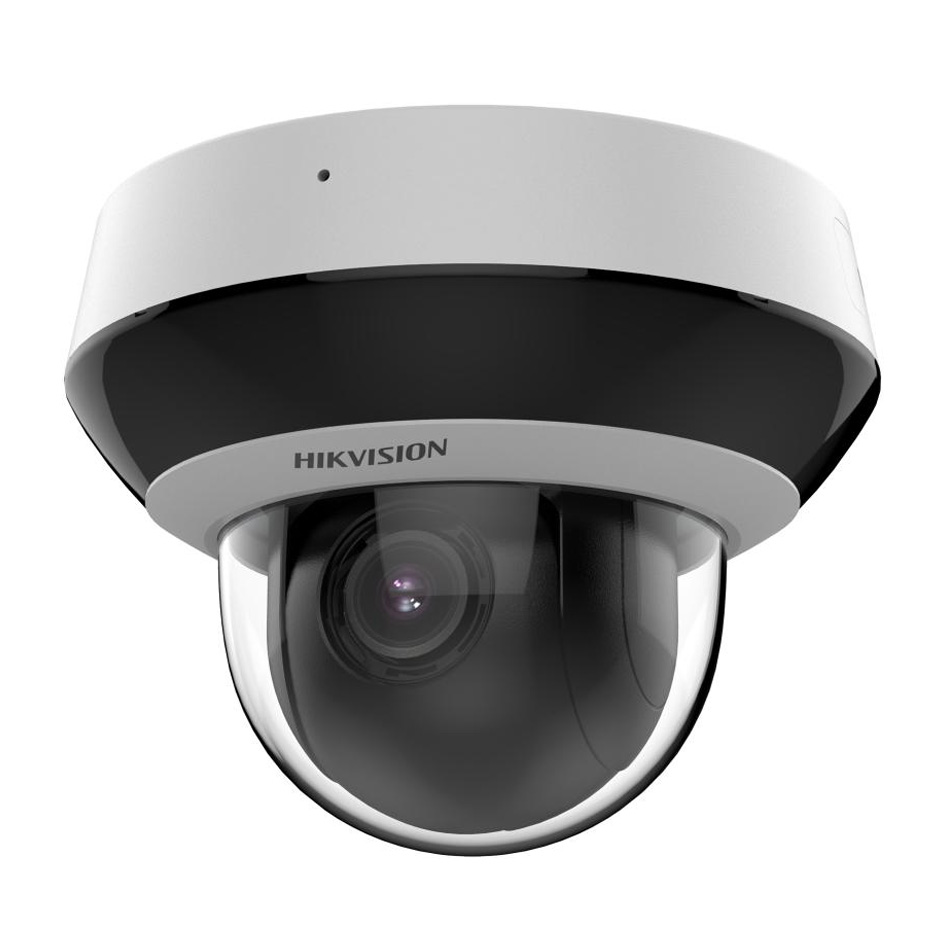

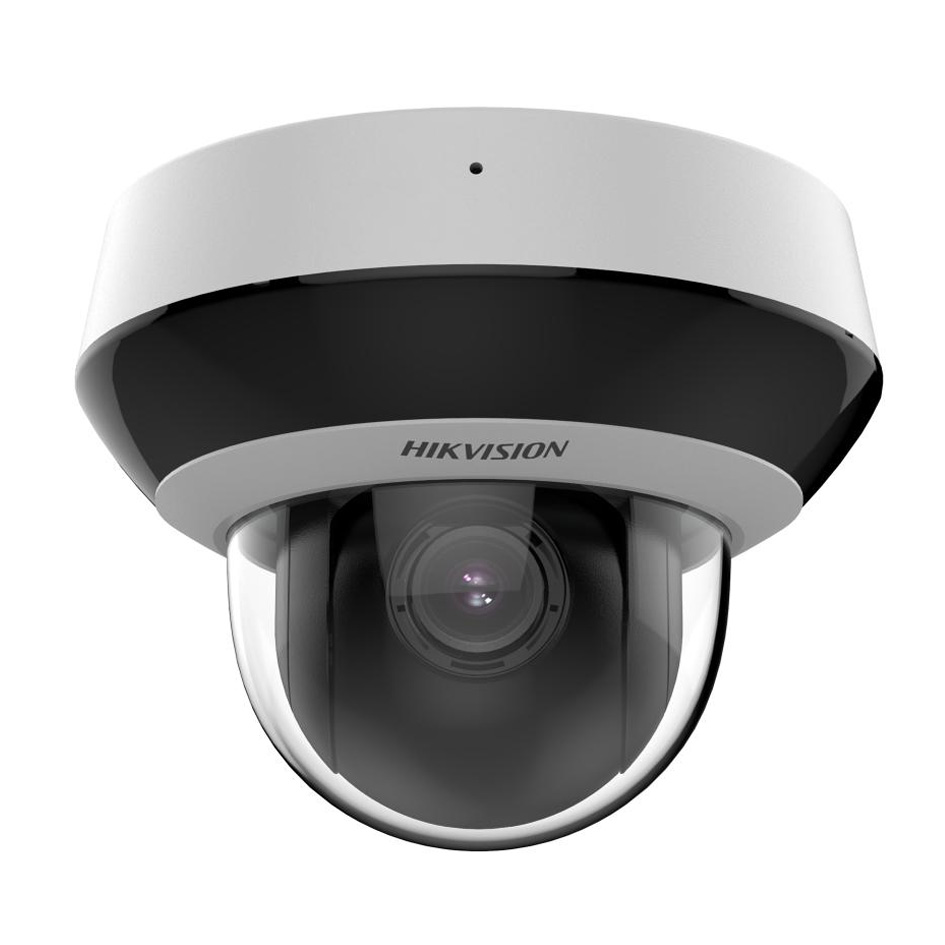

This 2MP mini outdoor PTZ camera enables clear surveillance with smart human/vehicle classification, good low - light performance, and durable use.

Characteristics

• 2MP resolution for high - quality imaging
• Deep learning - based human and vehicle classification
• Excellent low - light performance via DarkFighter technology
• 4x optical zoom for closer viewing in expansive areas
• Up to 20 m IR night vision range

Availability:



Inquire Add to Basket

Model:
DS-2DE2A204IWG1-E
Brand:
Hikvison
Code:
8525801302

DS-2DE2A204IWG1-E Datasheet

Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.005 Lux @ (F1.8, AGC ON), B/W: 0.001 Lux @ (F1.8, AGC ON), 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Zoom	4x optical, 16x digital
Focal Length	2.8 to 12 mm, 4 × Optical
FOV	Horizontal field of view: 99.4° to 30.6° vertical field of view: 51.8° to 17.2° diagonal field of view: 120° to 35.1°
Focus	Auto, semi-auto, manual
Zoom Speed	Approx. 2 s
Supplement Light Range	IR Distance: up to 20 m
Movement Range (Pan)	0° to 355°
Movement Range (Tilt)	0° to 90°
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	120 dB
Dimension	Ø130.7 mm × 103.6 mm (Ø5.15" × 4.00")
Weight	Approx. 560 g (1.23 lb.) (device only)；Approx. 780 g (1.72 lb.) (with package)
Protection	IP66, IK10, TVS 4000V lightning protection, surge protection and voltage transient protection

Application

Small - Scale Outdoor Surveillance: Residential areas, small business premises (2MP resolution, 4x optical zoom, and 20m IR range meet daily monitoring needs for yards, storefronts, etc.).
Smart Security Zones: Neighborhood entrances, parking lots (deep learning - based human and vehicle classification helps identify targets accurately).

Product standards

Imaging: 2MP resolution; 4x optical zoom for flexible viewing range adjustment.
Night Vision: Up to 20m IR night vision; DarkFighter technology for excellent low - light performance; deep learning - driven human and vehicle classification.
Durability: IP66 water/dust resistance, IK10 vandal proofing; built - in microphone and speaker for two - way audio.
