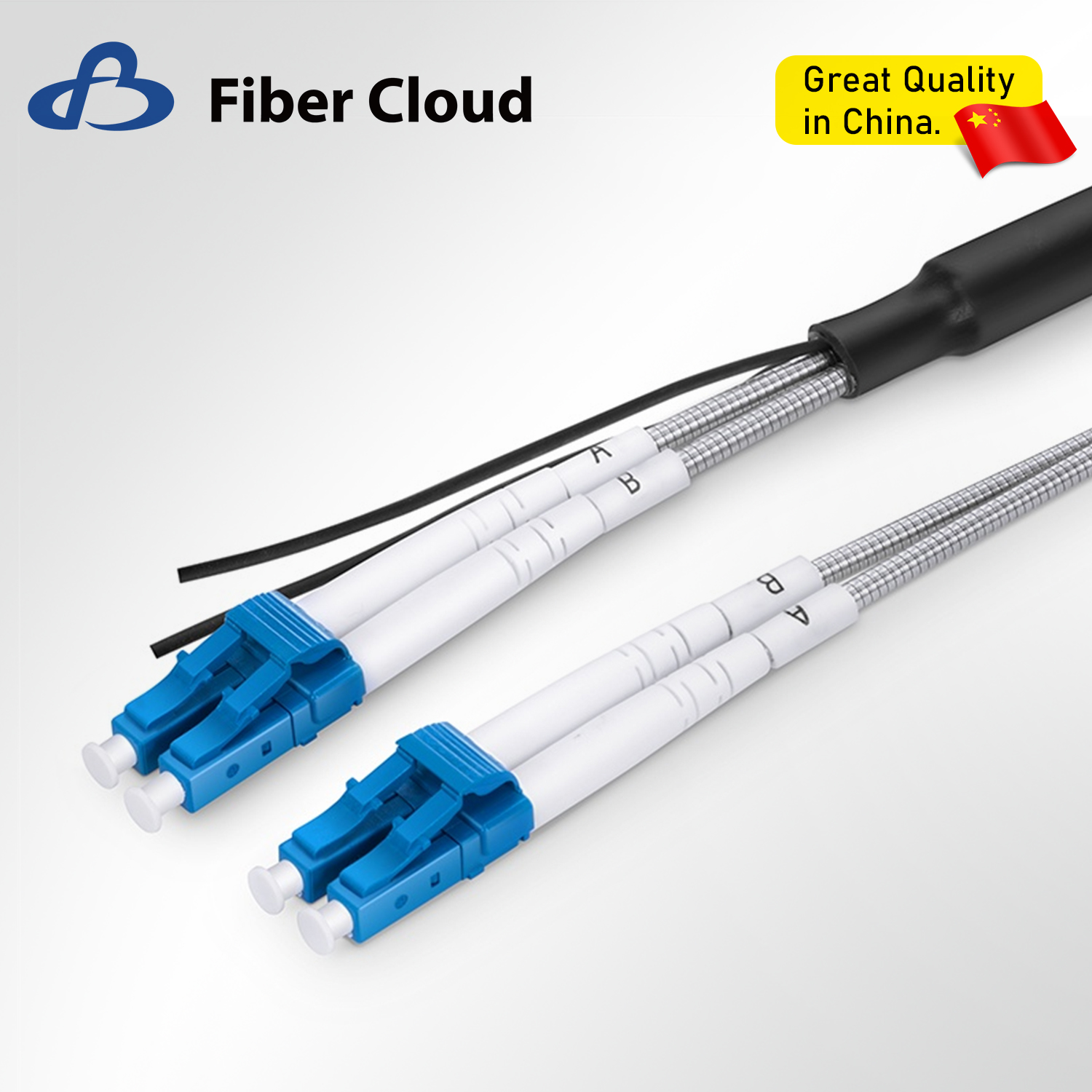

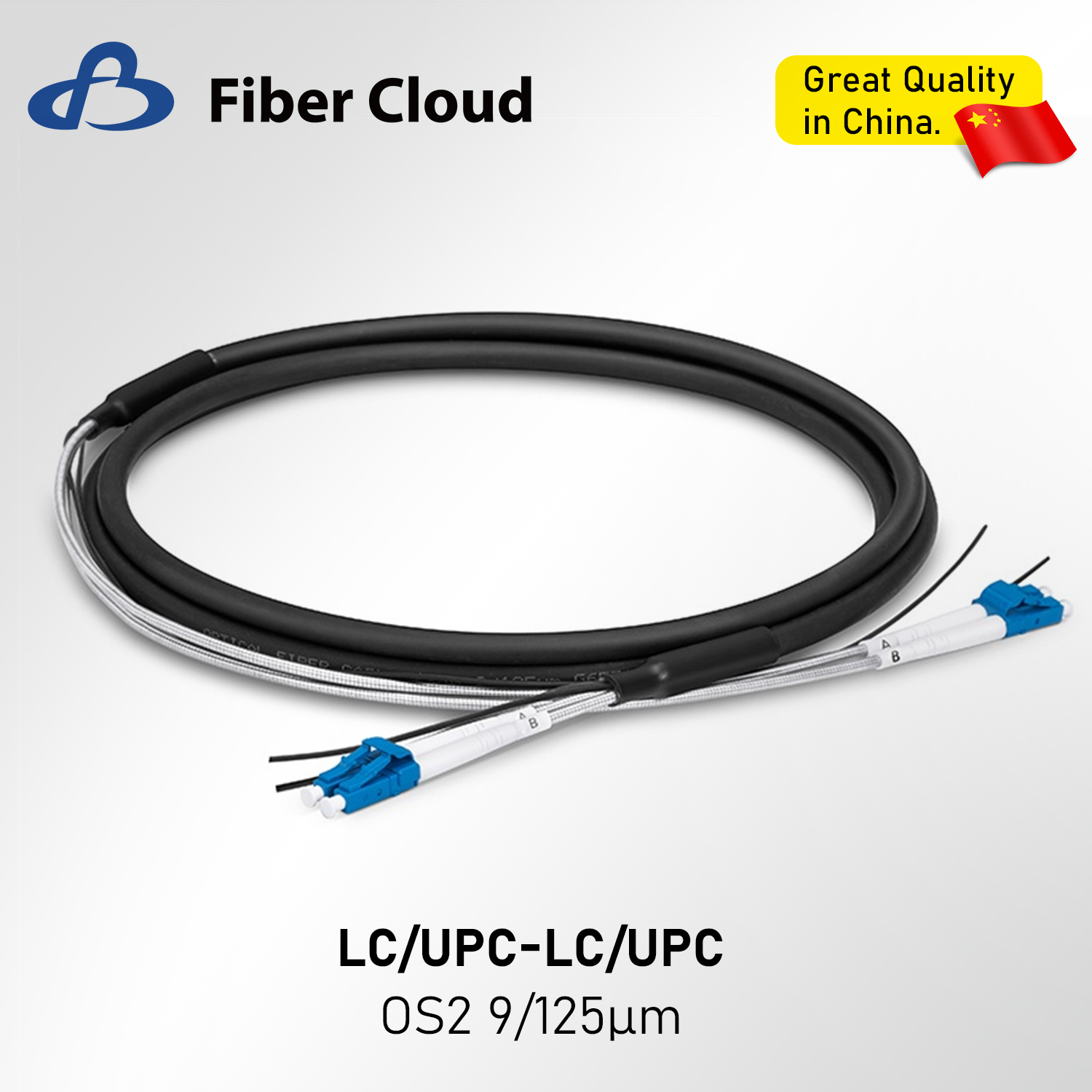

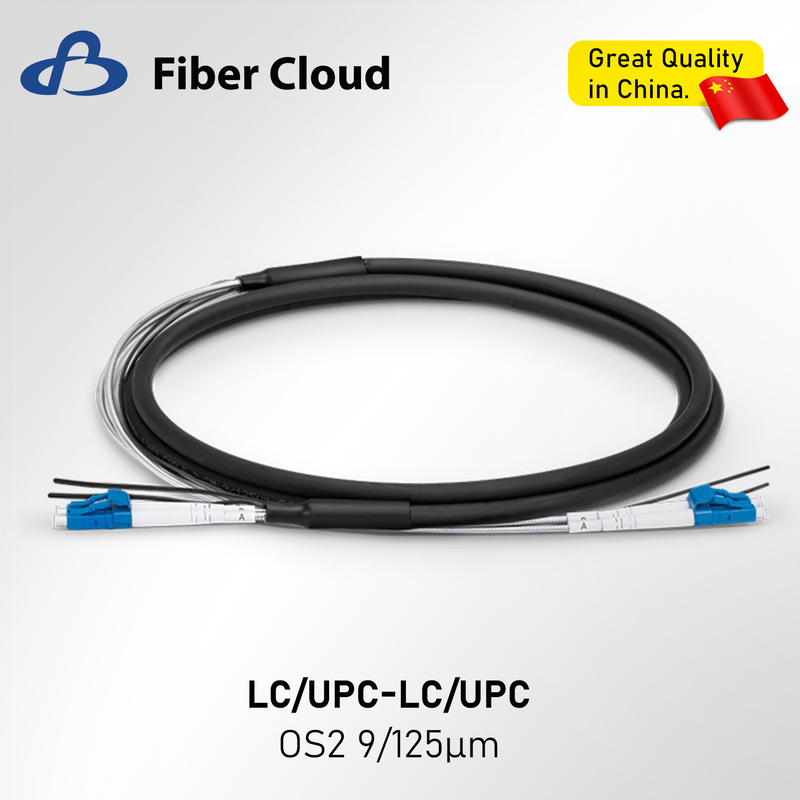

1m LC/UPC to LC/UPC Duplex OS2 7.0/2.0mm LSZH Ftta Outdoor Fiber Armoured Patch Code Cable Wire

Share to:

1m LC/UPC to LC/UPC Duplex OS2 7.0/2.0mm LSZH Ftta Outdoor Fiber Armoured Patch Code Cable Wire

Pigtails and patch-cord ideal for use in optical device, equipment Ideal for use in distribution frame

Characteristics

High crushing resistant, mouse-biting proof
Good mechanical property and environment property
Flame resistant performance
Soft, agile, convenient for connection
Satisfy various request of markets and customers

Availability:



Inquire Add to Basket

Model:
LC/UPC to LC/UPC

Product Description

Connector Type	LC/SC/ST/FC/LSH/MU/MTRJ	Polish Type	APC/UPC
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Insertion Loss	≤0.2dB	Return Loss	UPC≥50dB, APC≥60dB (LC/SC/ST/FC/MU/MTRJ) UPC≥55dB, APC≥75dB (LSH)
Fiber Grade	G.657.A1/G.657.A2	Min. Bend Radius	10/5D (Dynamic/Static)
Attenuation at 1310nm	0.36dB/km	Attenuation at 1550nm	0.22dB/km
Fiber Count	Simplex	Cable Jacket	PVC, LSZH, OFNP, OFNR, PE, TPU
Cable Diameter (Outer/Inner)	0.9/2.0/3.0mm	Polarity	A (Tx) to B (Rx)
Operating Temperature	-20 to 70°C (-4 to 158°F)	Storage Temperature	-40 to 80°C (-40 to 176°F)

Applications

Designed for Outdoor Base Station Construction
It's suitable for harsh environments such as fiber-to-the antenna (FTTA) cabling in LTE/4G/5G networks, base stations and also meets the needs of remote traction.
