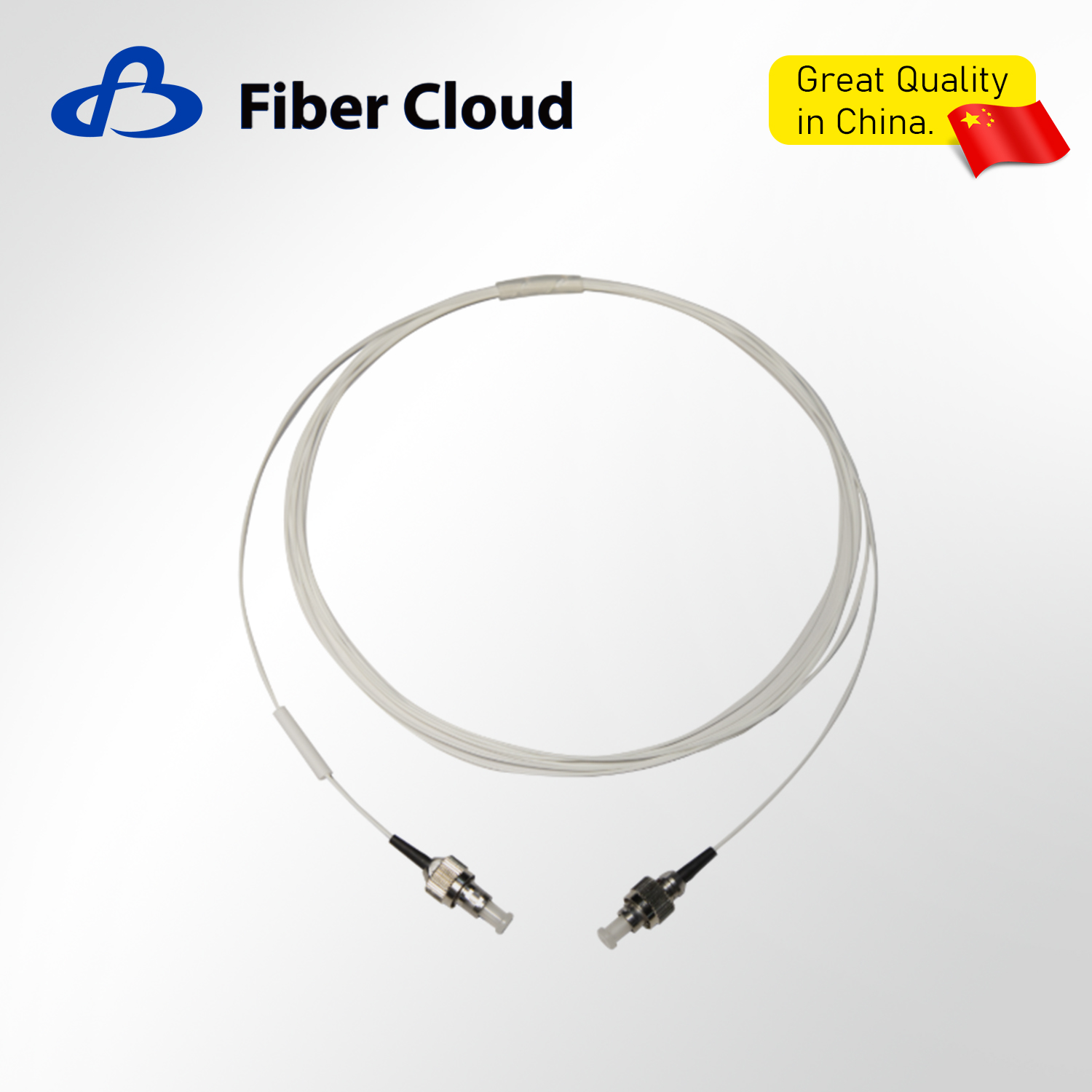

Homogenized Fibre Patchcord Based on YOFC step-index fibre

Based on YOFC step-index fibre, combined with special refractive index doping design and unique connector manufacturing process, the flat top distribution of spot mode is achieved.

Characteristic

Uniform output spot
Wavelength customizable
Connector customizable
Direct semiconductor output

Availability:



Inquire Add to Basket

Product Description

Function	Reference Data	Notes
Fibre size	200/220, 400/440, 600/660	Customizable
NA	0.22±0.02, 0.26±0.02	-
Connector type	D80, SMA905, SC ferrule, Flat bare fibre	Customizable
Length	1-25m	Customizable
Protective tube	PVC/Hytrel Tube, Armored tube	Customizable
Working wavelength	350-1200nm	Customizable
Transmission eﬃciency	>90%@9xxnm (10m)	Customizable
End face cleanliness	<2µm Dirty quantity≤10 (Taking SI600/660 fibre as an example)	Customizable

Applications

Laser processing
Auxiliary ighting
Medical beauty
Spectral analysis

Product Description
