Industrial Control Optical Patchcord Network Fibre Connectors
YOFC can provide a series of industrial control fibre connectors, which are suitable for detachable connection between various industrial control fibres and optical fibres. The output optical energy can be coupled into the receiving fibre to the maximum extent to meet various application requirements.
Note: We further provide Industrial Control Series, HFBR Series, Mini-ST Connector, OP200 Connector and mini LC. For more information about our Industrial Control Optical Patchcord, please see the product catalogue.

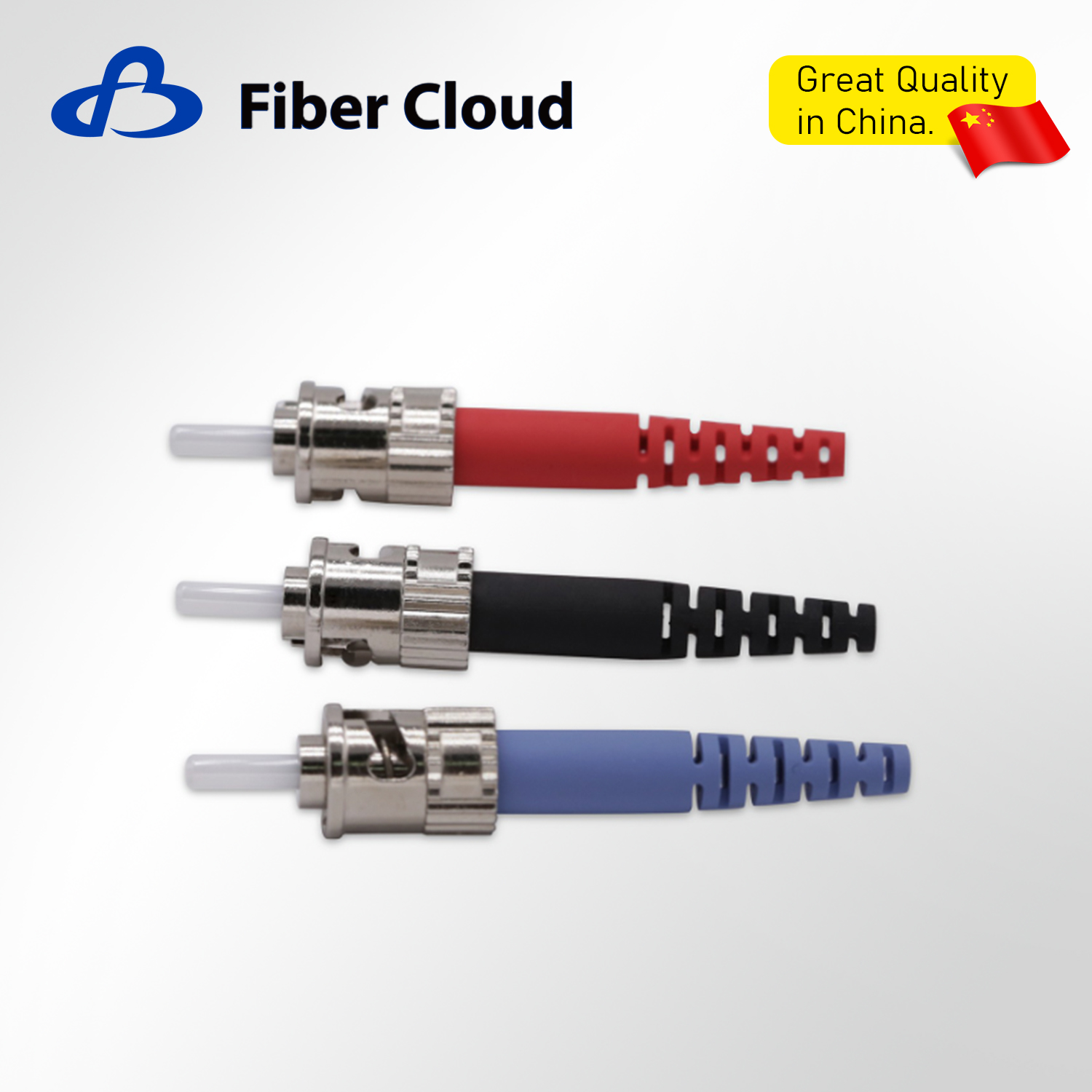

Model
P-ST-20-001
Optical Cladding Diameter (μm)
125, 126, 230, etc
Cable Diameter (mm)
3.0
Assembly Mode
Crimping/Bonding/Grinding
Ferrule
Ceramics
Parts
Including crimping ring, tail pipe and dust cap
Installation Mode
Insert push and twist

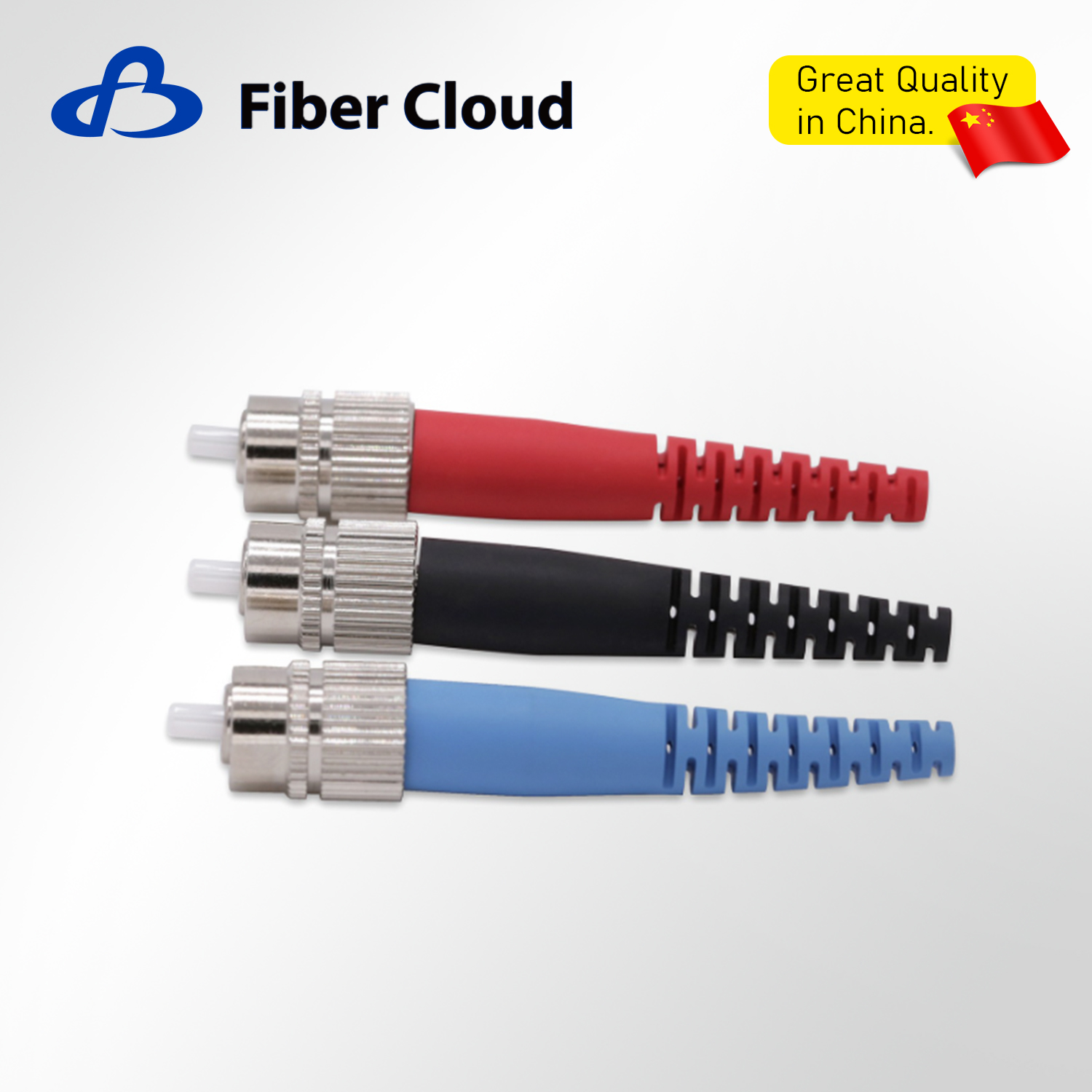

FC Connector
Model
FC/PC，FC/APC
Optical Cladding Diameter (μm)
125, 126, 230, etc
125, 126, 230, etc
125, 126, 230, etc
Cable Diameter (mm)
3.0
2.2
1.8
Assembly Mmode
Crimping/Bonding/Grinding
Crimping/Bonding/Grinding
Crimping/Bonding/Grinding
Ferrule
Ceramics
Ceramics
Ceramics
Parts
Including crimping ring, tail pipe and dust cap
Including crimping ring, tail pipe and dust cap
Including crimping ring, tail pipe and dust cap
Installation Mode
Thread Rrotation
Thread Rrotation
Thread Rotation
SC Connector
Model
SC/PC
SC/APC
Optical Cladding Diameter (μm)
125, 126, 230, etc
125, 126, 230, etc
Cable Diameter (mm)
0.9, 2.0, 3.0
0.9, 2.0, 3.0
Assembly Mode
Crimping/Bonding/Grinding
Crimping/Bonding/Grinding
Ferrule
Ceramics
Ceramics
Parts
Including crimping ring, tail pipe and dust cap
Including crimping ring, tail pipe and dust cap
Installation Mode
Push and Pull
Push and Pull

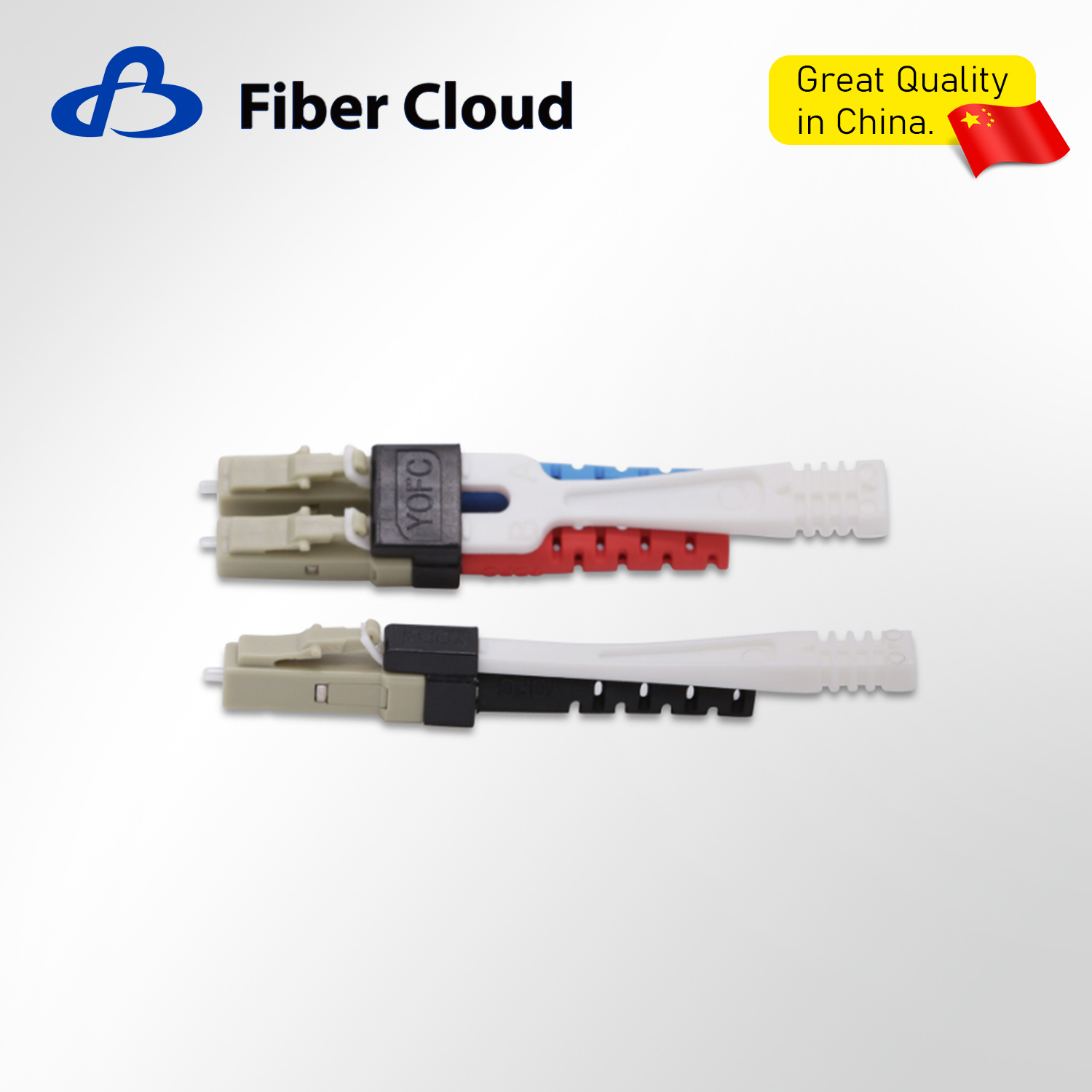

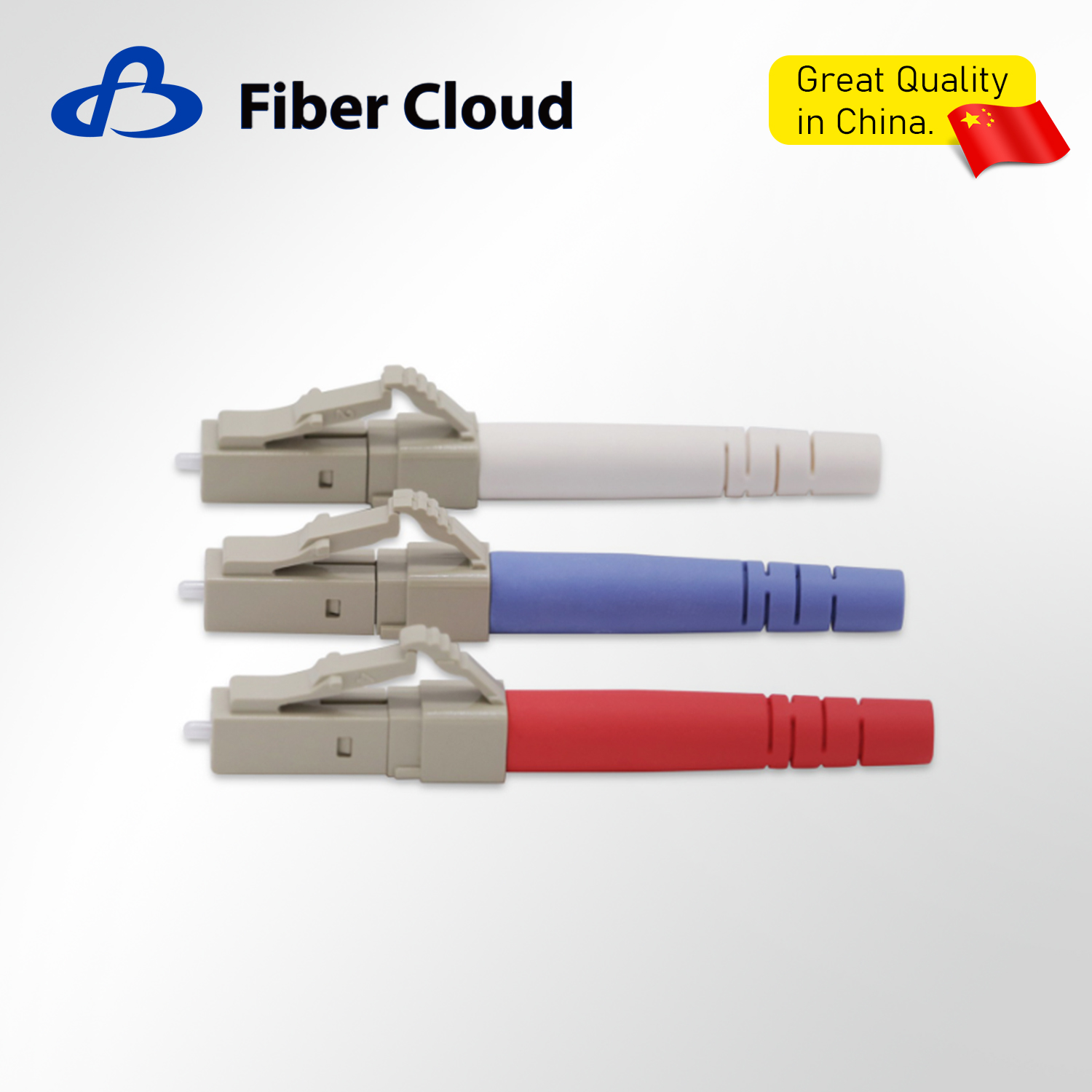

LC Connector
Model
LC/PC
LC/APC
Optical Cladding Diameter (μm)
125, 126, 230, etc
125, 126, 230, etc
Cable Diameter (mm)
0.9, 2.0, 3.0
0.9, 2.0, 3.0
Assembly Mode
Crimping/Bonding/Grinding
Crimping/Bonding/Grinding
Ferrule
Ceramics
Ceramics
Parts
Including crimping ring, tail pipe and dust cap
Including crimping ring, tail pipe and dust cap
Installation Mode
Push and Pull
Push and Pull
E2000 Connector and V-PIN
Model
E2000/PC,E2000/APC
V-PIN
Optical Cladding Diameter (μm)
125, 126
230
Cable Diameter (mm)
0.9, 2.0, 3.0
7.5
Assembly Mode
Crimping/Bonding
Crimping/Bonding
Ferrule
Ceramics
Plastic
Parts
Tail Pipe
Full Metal Jacket
Installation Mode
Push and Pull
Push and Pull
Applications
Optical fibre communication equipment, instruments, etc
