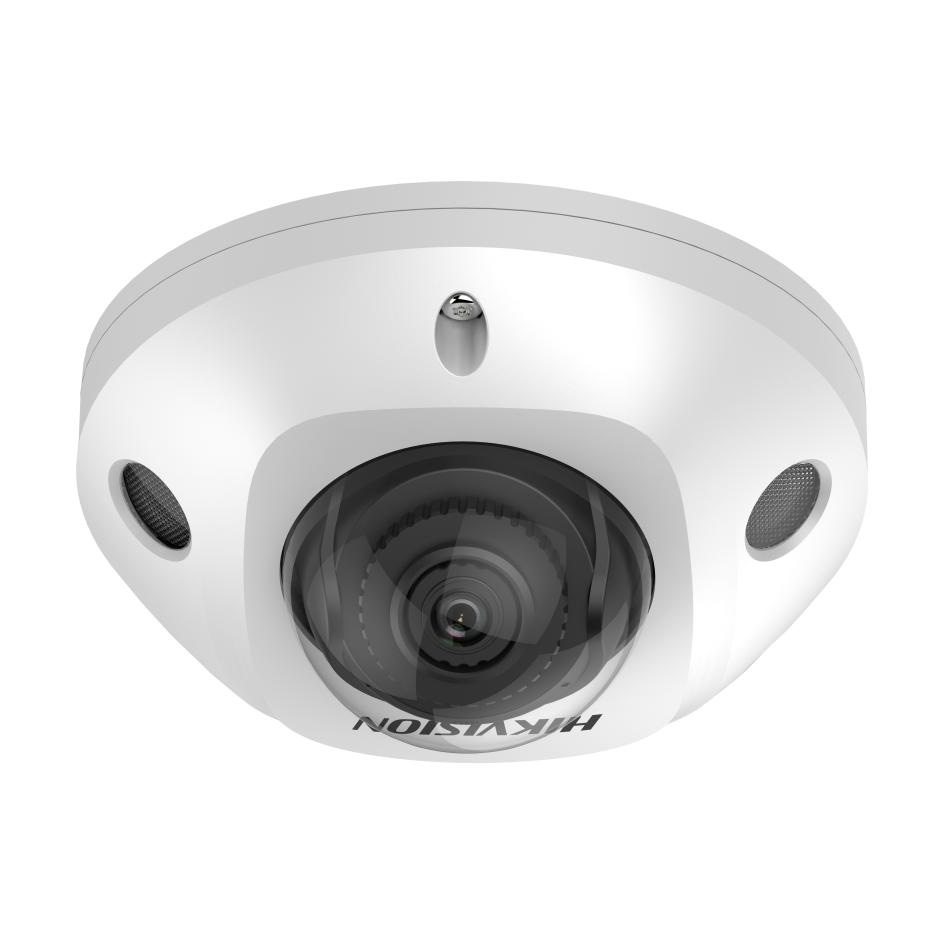

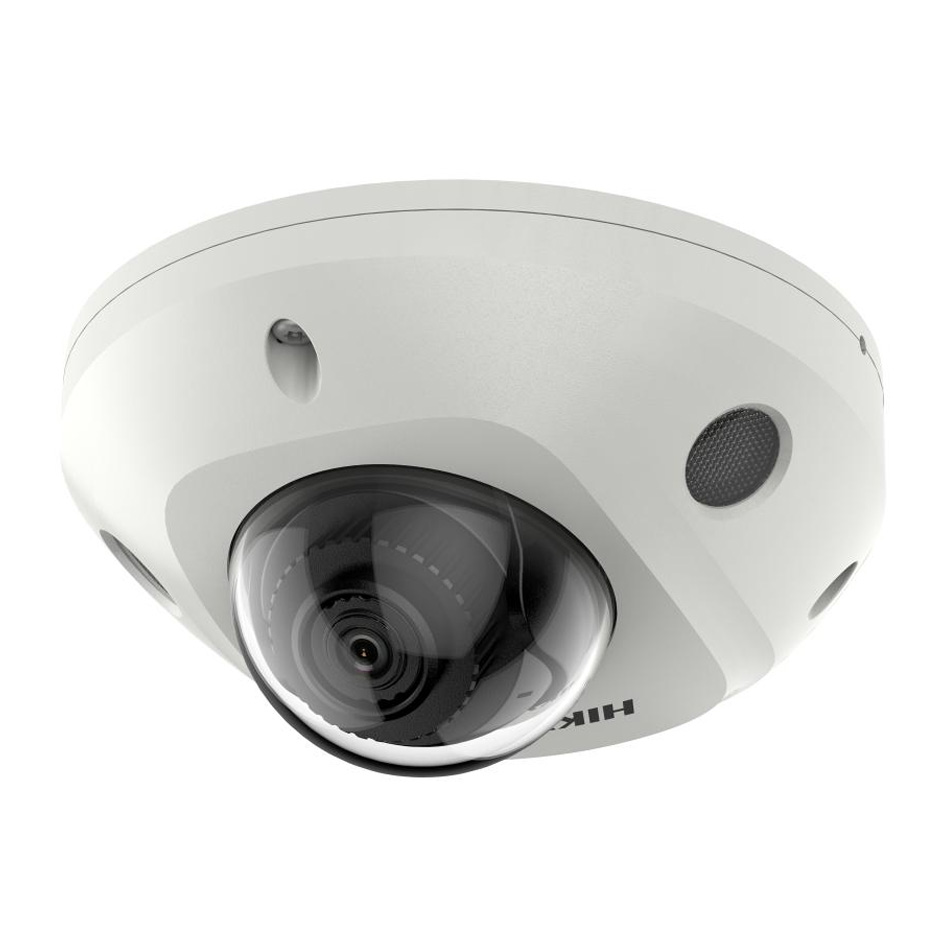

2MP AcuSense Built-in Mic Fixed Mini Dome Network Camera Smart Detection With Clear Audio

This 2MP AcuSense dome camera delivers clear visuals, handles backlight well, uses efficient compression, classifies people and vehicles.

Characteristics

• 2MP resolution
• 120dB WDR
• H.265+ compression
• AcuSense target classification
• IP67 & IK08 rated

DS-2CD2523G2-I(S) Datasheet

Image Sensor	1/2.7" Progressive Scan CMOS

Min. Illumination	Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on

Day & Night	IR Cut Filter

WDR	120 dB

Angle Adjustment	Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Field of Vision	2.8 mm: 114° (H), 62° (V), 135° (D)
	4 mm: 86° (H), 46° (V), 102° (D)
	6 mm: 54° (H), 30° (V), 62° (D)
IR Distance	Up to 10 m

Video Compression	H.265/H.264

Max. Resolution	1920 × 1080

Max. Frame	50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
	60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Environment Noise Filtering	Yes

Power	12 VDC ± 25% PoE (802.3af, class 3)

Working Temperature	-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Protection	Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)

Dimensions	Ø 120 mm × 67.4 mm (Ø 4.7" × 2.7")

Weight	Approx. 400 g (0.9 lb.)

Application

Commercial buildings: Monitoring lobbies, corridors, and retail spaces for security and customer flow.
Industrial sites: Supervising production areas, warehouses, and entry points to ensure safety and prevent theft.
Public places: Keeping watch over airports, stations, and malls for public safety and security management.

Product standards

Imaging: 2 MP resolution meets high-definition surveillance imaging standards.
Compression: H.265+ compression technology complies with efficient video data compression norms.
Protection: IP67 dust/water resistance and IK08 vandal resistance adhere to environmental and physical protection standards.
