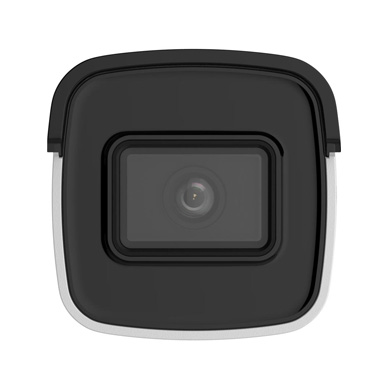

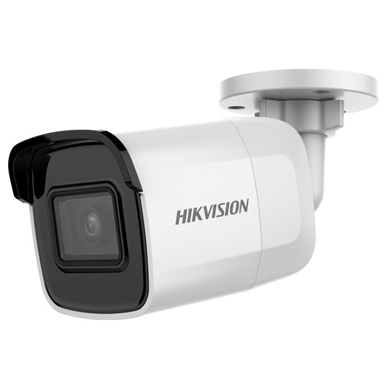

2MP WDR Fixed Mini Bullet Network Camera 256GB SD Support True WDR Tech

Share to:

2MP WDR Fixed Mini Bullet Network Camera 256GB SD Support True WDR Tech

This 2MP mini bullet camera serves surveillance needs, featuring 2MP imaging, H.265+ compression, 120 dB true WDR, IP67 protection, and SD card storage support.

Characteristics
• 2 MP resolution
• Efficient H.265+ compression technology
• 120 dB true WDR technology for backlight clarity
• Supports up to 256 GB SD card storage
• Water and dust resistant (IP67)
• Fixed mini bullet design for stable monitoring

Availability:



Inquire Add to Basket

Model:
DS-2CD2021G1-I(W)
Brand:
Hikvison
Code:
8525801302

DS-2CD2021G1-I(W) Datasheet

Image Sensor	1/2.7" Progressive Scan CMOS

Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Day & Night	IR Cut Filter

Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Field of Vision	2.8 mm: 111.6° (H), 59.1° (V), 133.9° (D)
	4 mm: 91.5° (H), 46.1° (V), 109.8° (D)
	6 mm: 56° (H), 29.8° (V), 65.3° (D)
IR Distance	Up to 30 m

Video Compression	H.265/H.264

Max. Resolution	1920 × 1080

Max. Frame	50 Hz: 25 fps (1920 × 1080, 1280 × 720)
	60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Power	12 VDC ± 25% PoE: 802.3af, Class 3

Working Temperature	-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Protection	IP67 (IEC 60529-2013)

Material	Metal & Plastic

Dimensions	69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")

Weight	Approx. 350 g (0.8 lb.)

Applications

Home Security：Monitors front yards (2MP clarity, 120dB WDR for backlight), secures garages.
Small Business：Guards storefronts (H.265+ to save storage) and offices (WDR for mixed - light areas like lobbies).
Retail Outlets：Tracks customer entry/exit (mini bullet design, non - obtrusive) and deters theft.
Light Industrial：Monitors small warehouses (EXIR night vision via specs inference) and workshop perimeters (fixed angle for stable coverage).
