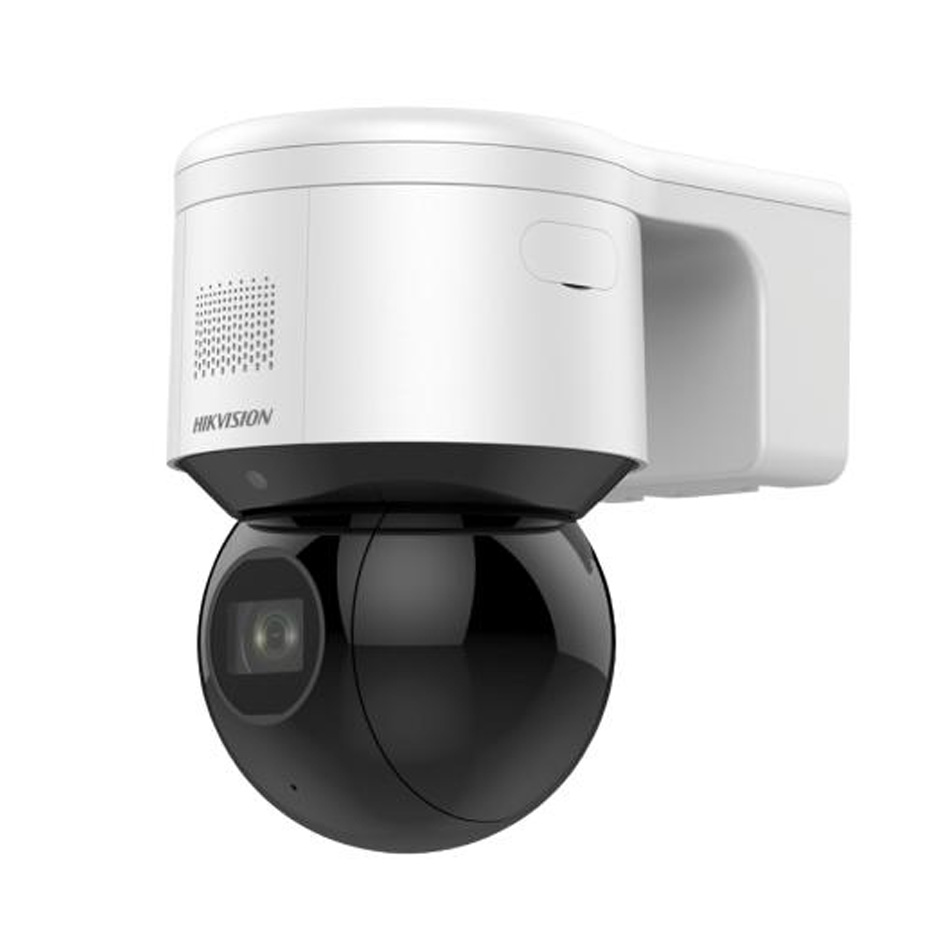

4MP 4x Zoom IR Wi-Fi Mini PT Dome Hikvision Network Camera

This 4MP Wi-Fi PTZ camera offers excellent low-light and darkfighter performance, 120dB WDR, 50m IR, easy Wi-Fi setup, and audio-visual alarm.

Characteristics

• 4MP resolution
• 4× optical zoom
• DarkFighter low-light tech
• 120dB WDR
• 50m IR range
• Wi-Fi connectivity
• Audio-visual alarm support

DS-2DE3A404IWG-E/W Datasheet

Image Sensor	1/2.8" progressive scan CMOS

Max. Resolution	2560 × 1440

Min. Illumination	Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR

Day & Night	IR cut filter

Zoom	4 × optical, 16 × digital

Focal Length	2.8 to 12 mm

FOV	Horizontal field of view: 96.7° to 31.6° (wide-tele)
	Vertical field of view: 51.1° to 17.7° (wide-tele)
	Diagonal field of view: 115.1° to 36.3° (wide-tele)
Focus	Auto, semi-auto, manual

Zoom Speed	Approx. 2 s (optical lens, wide-tele)

Supplement Light Range	IR distance: up to 50 m, white light distance: up to 6 m

Movement Range (Pan)	0° to 350°

Movement Range (Tilt)	0° to 90°

Main Stream	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
	60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Wide Dynamic Range (WDR)	120 dB

Dimension	179.3 mm × 120.5 mm × 182 mm (7.06" × 4.74" × 7.17")

Weight	Approx. 1.125 kg (2.48 lb.)

Material	ADC12 + PC

Protection	IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Application

Residential areas: Monitoring entrances, courtyards, and perimeters for security.
Small businesses: Securing storefronts, offices, and parking lots with clear surveillance.
Schools: Keeping an eye on campuses, playgrounds, and hallways for safety.
Retail stores: Preventing theft and monitoring customer traffic in shops.

Product standards

Imaging: Complies with high-definition imaging standards with 4 MP resolution.
Low-light performance: Meets industry standards for low-light visibility via DarkFighter technology.
WDR : Adheres to 120 dB WDR standards for clear imaging against strong backlighting.
Connectivity: Conforms to Wi-Fi connectivity standards for easy installation and network integration.
IR range: Follows standards for up to 50 m IR distance for night-time safety monitoring.
