4MP ANPR 4G Bullet Network Camera Boost Security At Gateways And Checkpoints

Share to:

4MP ANPR 4G Bullet Network Camera Boost Security At Gateways And Checkpoints

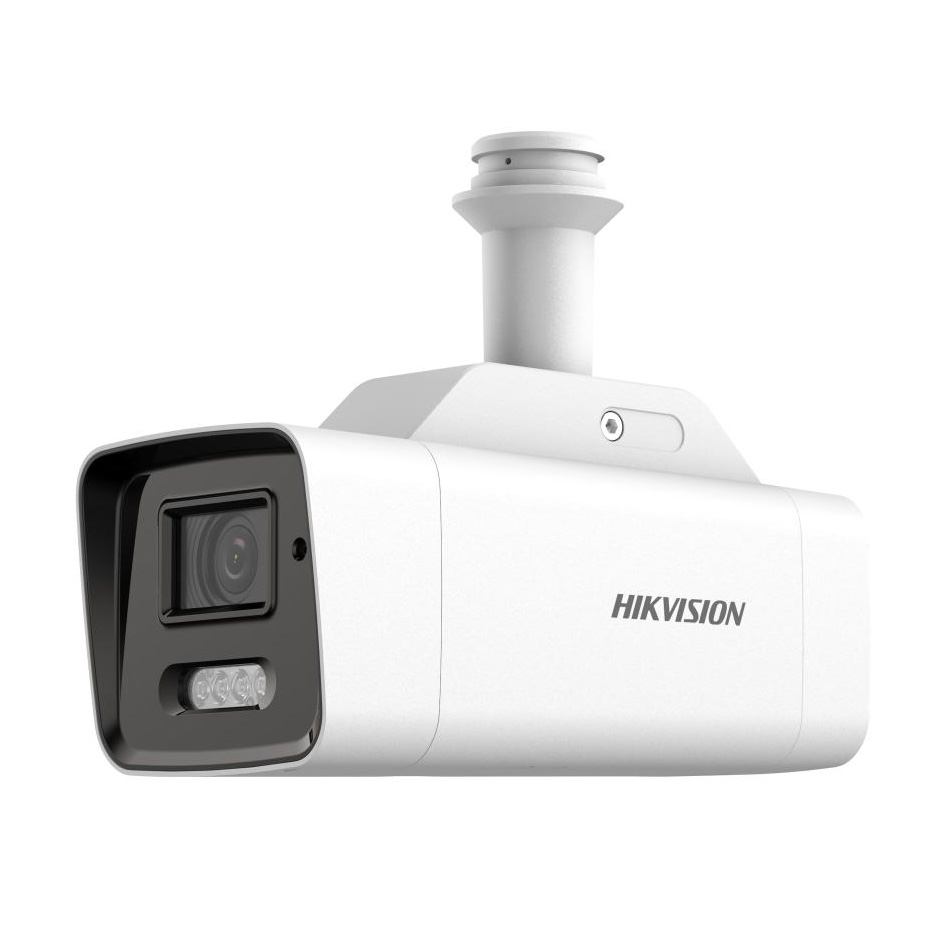

This 4MP ANPR Bullet 4G Network Camera captures clear images in backlit scenarios, classifies human and vehicle targets precisely, enables wireless transmission, and resists harsh environments.

Characteristics

• 4MP resolution
• 120 dB true WDR technology
• Deep learning - based human/vehicle classification
• 4G (LTE - TDD/LTE - FDD/WCDMA/GSM) network transmission
• IP66 water and dust resistance

Lens:	2.8-12mm 8-32mm
Availability:



Inquire Add to Basket

Model:
DS-2XS6A46G1/P-IZS/4G
Brand:
Hikvison
Code:
8525801302

DS-2XS6A46G1/P-IZS/4G Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
Day & Night	Day, Night, Auto, Schedule, Video Trigger
Zoom	Varifocal (motorized lens, 2.8 to 12 mm and 8 to 32 mm optional)
Focal Length	2.8 to 12 mm；8 to 32 mm
FOV	2.8 to 12 mm: horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm: horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
Focus	Auto, Semi auto, Manual
Supplement Light Range	2.8 to 12 mm: Up to 30 m；8 to 32 mm: Up to 50 m
Main Stream	Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Proactive mode: 50 Hz: 12.5 fps；60 Hz: 15 fps (same resolutions) Video compression: H.264/H.265
Wide Dynamic Range (WDR)	120 dB
Dimension	816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9")
Weight	Approx. 31.885 kg (70.3 lb.) (device only)；Approx. 25.650 kg (56.5 lb.) (with package)
Material	Front cover: metal; body: metal; bracket: metal
Protection	Camera: IP66 (IEC 60529 2013); Wind resistance: 12 level, up to 40 m/s wind speed resistance

Application

Highways and Toll Roads: Enables automatic number plate recognition (ANPR) for toll collection, traffic flow monitoring, and enforcement of traffic regulations.
Parking Lots: Facilitates efficient parking management by identifying vehicle number plates for entry and exit, tracking parking durations, and enhancing security by monitoring vehicle access.
Gateways and Checkpoints: Provides secure access control at facility entrances, military bases, or corporate checkpoints.
