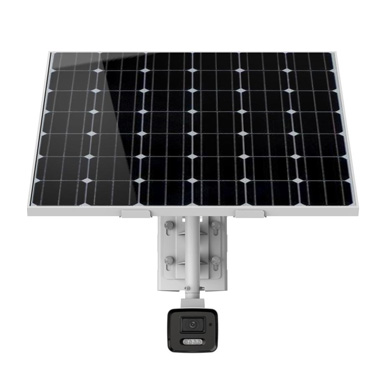

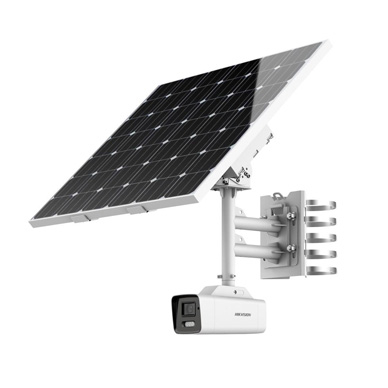

4MP ANPR Bullet Solar Power 4G Network Camera Kit 4G Connectivity Deep Learning Classification

Share to:

4MP ANPR Bullet Solar Power 4G Network Camera Kit 4G Connectivity Deep Learning Classification

This Camera Kit enables off - grid operation with an 80 W photovoltaic panel and 360 Wh lithium battery, ensures clear imaging against strong backlight via 120 dB true WDR, features deep - learning - based human and vehicle classification, and supports 4G wireless transmission for remote surveillance.

Characteristics

• 2 MP resolution
• Wi - Fi connection support
• Built - in two - way audio
• Efficient H.265 compression technology
• IP66 water and dust resistance

Availability:



Inquire Add to Basket

Model:
DS-2XS6A46G1/P-IZS/C36S80
Brand:
Hikvison
Code:
8525801302

DS-2XS6A46G1/P-IZS/C36S80 Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Day & Night	Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0 Lux with light Day/Night Switch: Day, Night, Auto, Schedule, Video Trigger
Angle Adjustment	2.8-12mm: horizontal FOV 107.4°-39.8°, vertical FOV 56°-22.4°, diagonal FOV 130.1°-45.7° 8-32mm: horizontal FOV 40.3°-14.5°, vertical FOV 22.1°-8.2°, diagonal FOV 46.9°-16.5°
Lens Type	Auto, Semi-auto, Manual; Auto-iris; Aperture: 2.8-12mm (F1.2), 8-32mm (F1.6); Lens Mount: All In One Lens
Focal Length & FOV	2.8-12mm / 8-32mm (varifocal); specific FOV ranges detailed above
IR Wavelength	IR supplement light Range: 2.8-12mm (up to 30m), 8-32mm (up to 50m) Smart Supplement Light: Yes
Main Stream	Performance mode: 50Hz (25fps, 2560×1440/1920×1080/1280×720), 60Hz (30fps, same resolutions) Proactive mode: 50Hz (12.5fps), 60Hz (15fps) Video Compression: H.264/H.265 (main stream supports H.264+, H.265+)
Wide Dynamic Range (WDR)	120 dB
Built-in Microphone	Yes Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Bit Rate: varies by codec; Sampling Rate: 8kHz/16kHz/32kHz/44.1kHz/48kHz Environment Noise Filtering: Yes
Material	Front cover: metal; body: metal; bracket: metal
Dimension	816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (assembled max size)
Package Dimension	862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
Weight	Approx. 31.885 kg (70.3 lb.) (camera); Approx. 25.650 kg (56.5 lb.) (with package)
Protection	Camera: IP66 (IEC 60529-2013) Wind resistance: 12 level (up to 40 m/s wind speed) Battery: Lithium (360 Wh, 10.8V, etc.)

Application

Remote Off - Grid Areas：Monitors rural roads (4G connectivity, solar power for no - grid sites) and wilderness perimeters (IP66 protection, battery management for long - term use).
Construction Site Surveillance：Oversees job sites (ANPR for vehicle access, solar - powered to avoid wiring) and equipment yards (human/vehicle classification, 120dB WDR for harsh lighting).
Parking Lot Management：Manages remote parking areas (ANPR for license plate capture) and temporary lots (battery backup, IP66 for weather resistance).
Environmental Monitoring Zones：Secures nature reserves and wildlife habitats.

Product standards

Power：80W photovoltaic panel, 360 Wh rechargeable lithium battery; battery management (temp protection, sleep mode, remote wakeup).
Imaging：4MP resolution, 120 dB true WDR for backlight clarity; deep - learning human/vehicle classification.
Connectivity：LTE - TDD/LTE - FDD/WCDMA/GSM 4G; Micro SIM support.
Durability：IP66 water/dust resistance for outdoor use.
Storage & Intelligence：ANPR (license plate recognition); supports microSD.
