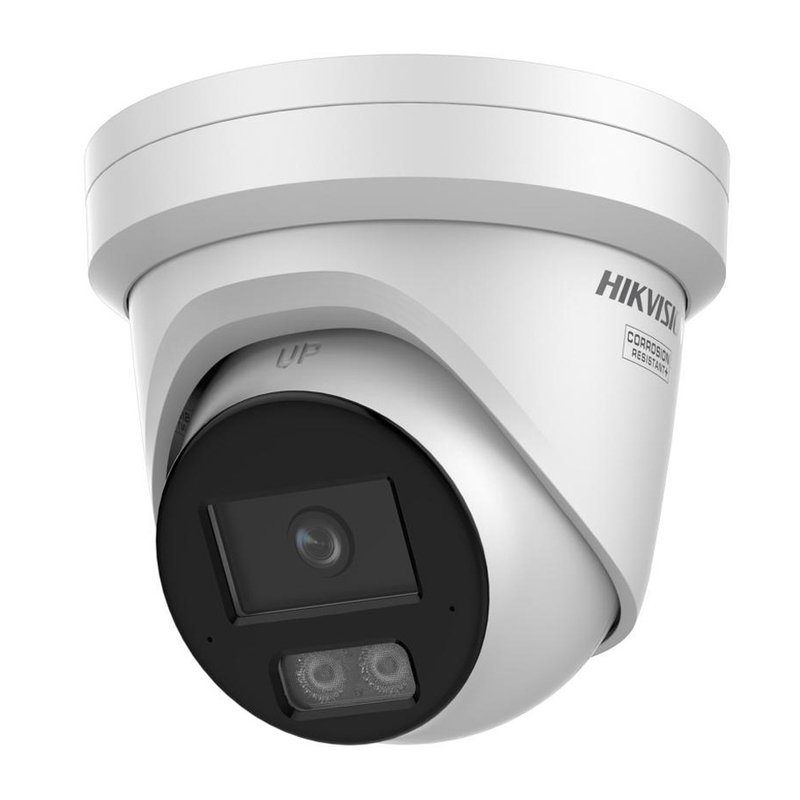

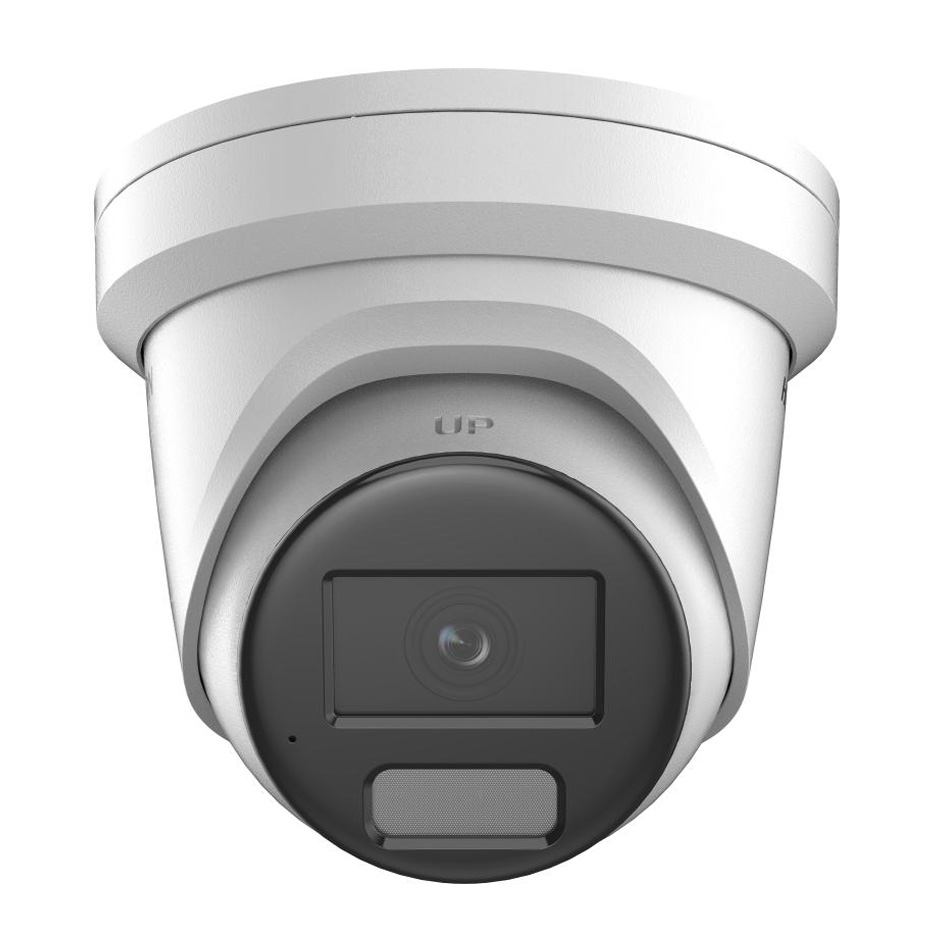

4MP Acusense Motorized Camera With Varifocal Lens

Share to:

4MP Acusense Motorized Camera With Varifocal Lens

This 4MP turret network camera enables smart surveillance with excellent low - light performance, delivers clear imaging and audio, and ensures durable use in various environments.

Characteristics

• 4MP resolution
• 2.8/4 mm in one point vari - focal lens
• Excellent low illumination performance via DarkFighter technology
• Person and vehicle classification based on deep learning
• Arrayed Dual - Mic for crystal - clear audio
• Anti - corrosion (NEMA 4X) and water/dust resistance (IP67)

Availability:



Inquire Add to Basket

Model:
DS-2CD2346G3-IZ(2U)Y
Brand:
Hikvison
Code:
8525801302

DS-2CD2346G3-IZ(2U)Y Datasheet

Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Zoom	Varifocal (motorized lens, 2.8 to 4 mm)
Focal Length	2.8 mm；4 mm
FOV	2.8 mm: horizontal FOV 99.3°, vertical FOV 54.8°, diagonal FOV 120.2° 4 mm: horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°
Focus	Fixed (fixed iris)
Supplement Light Range	Up to 30 m (IR)
Movement Range (Pan)	0° to 360°
Movement Range (Tilt)	0° to 75°
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Video compression: H.265/H.264/H.264+/H.265+
Wide Dynamic Range (WDR)	130 dB
Dimension	Ø138.3 mm × 115.4 mm (Ø5.4"× 4.5")
Weight	Approx. 550 g (1.2 lb.) (device only) Approx. 800 g (1.8 lb.) (with package)
Material	Cover: metal, main body: metal
Protection	IP67

Application

Outdoor Harsh Environments: Roadsides, industrial zones. NEMA 4X anti - corrosion, IP67 protection ensure stable operation in humidity, dust, and corrosive air.
Smart Security Areas: Commercial streets, residential communities. Deep learning - based person/vehicle classification, DarkFighter low - light tech enable intelligent monitoring and quick threat response.

Product standards

Imaging: 4MP resolution; 2.8/4 mm point vari - focal lens for flexible viewing range adjustment.
Lighting : DarkFighter for excellent low - illumination performance; deep learning - driven person and vehicle classification.
Durability: NEMA 4X anti - corrosion, IP67 water/dust resistance; arrayed dual - mic for high - fidelity audio capture.
