4MP ColorVu Solar PT Security Camera Setup Easy Installation And 4G Connectivity

Share to:

4MP ColorVu Solar PT Security Camera Setup Easy Installation And 4G Connectivity

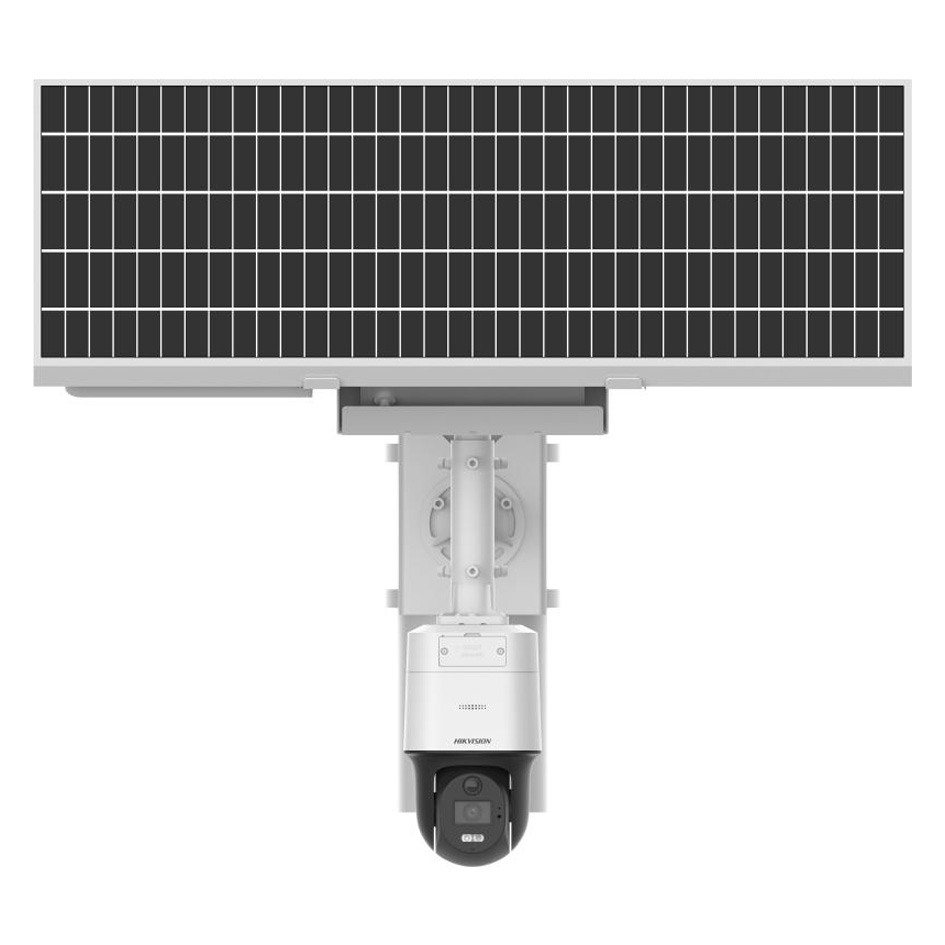

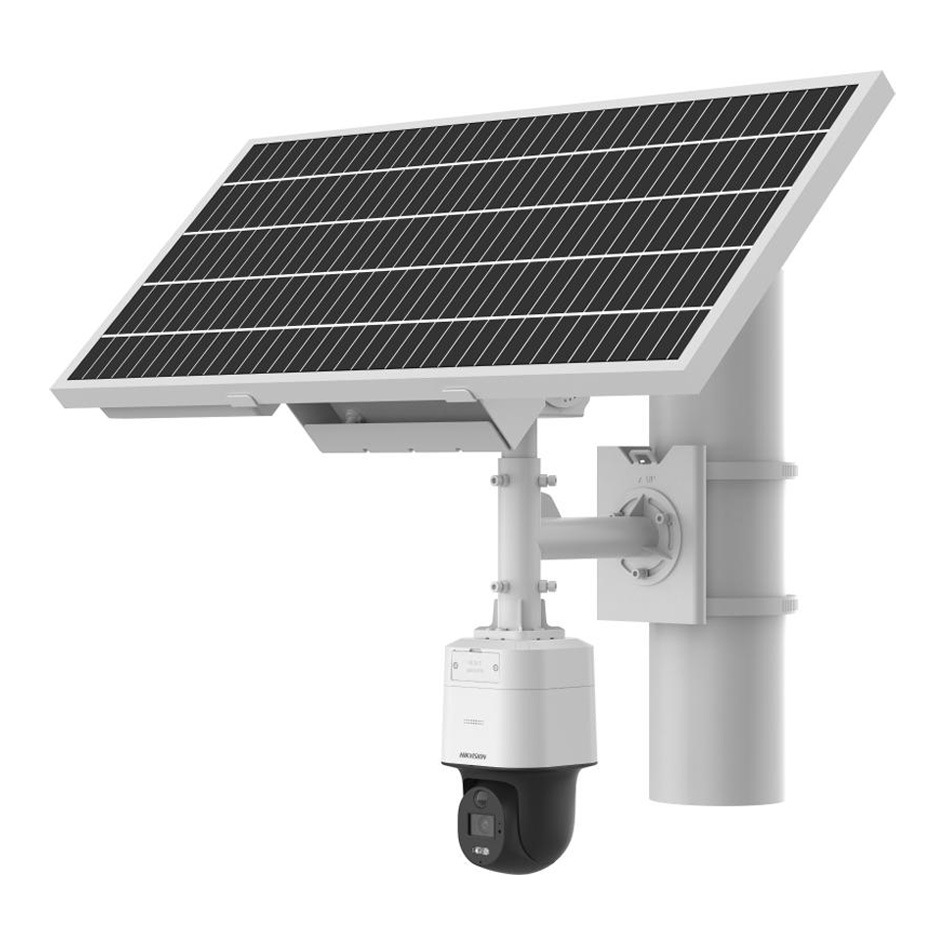

This 4MP ColorVu solar - powered security PT camera captures high - quality colorful footage, operates independently with solar and battery, enables real - time communication, and supports 4G connectivity.

Characteristics

• 4MP resolution
• Solar - powered with built - in battery
• 24/7 colorful imaging
• Efficient H.265+ compression
• 4G communication support

Lens:	4mm 6mm
Availability:



Inquire Add to Basket

Model:
DS-2XS3Q47G1-LDH/4G
Brand:
Hikvison
Code:
8525801302

DS-2XS3Q47G1-LDH/4G Datasheet

Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night	24/7 color imaging
Focal Length	4 mm or 6 mm (optional fixed focal lens)
FOV	4 mm: Horizontal FOV 75°, Vertical FOV 40°, Diagonal FOV 89° 6 mm: Horizontal FOV 49°, Vertical FOV 27°, Diagonal FOV 57°
Focus	Fixed focus (fixed focal lens)
Zoom Speed	Not applicable (no zoom function)
Supplement Light Range	Performance mode: up to 30 m; Proactive mode: up to 10 m
Movement Range (Pan)	Solar panel: 0° to 358°; Camera: 0° to 340°
Movement Range (Tilt)	Solar panel: -40° to 0°; Camera: -5° to 105°
Main Stream	50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Video compression: H.265/H.264 (H.264+/H.265+ supported)
Wide Dynamic Range (WDR)	120 dB
Dimension	686.6 mm × 442.6 mm × 760 mm (27.03" × 17.42" × 29.9")
Weight	Approx. 11.70 kg (25.8 lb.) (device only) Approx. 15.01 kg (33.1 lb.) (with package)
Material	Camera: Plastic; Solar panel: Metal
Protection	IP65 (IEC60529-2013)

Application

Remote Areas: Ideal for locations without access to traditional power sources, such as wilderness, farms, or remote construction sites, providing 24/7 security monitoring.
Temporary Installations: Suited for temporary events or projects where quick and easy setup of security systems is needed, without the hassle of wiring for electricity.
Outdoor Surveillance: Perfect for outdoor environments like parks, parking lots, and perimeters, leveraging solar power for sustainable and continuous operation.

Product standards

Imaging: 4 MP resolution ensures high - quality imaging for clear and detailed surveillance footage.
Power & Operation: Standalone operation with integrated solar panel and built - in battery enables self - sufficient power supply.
Video Compression: Efficient H.265+ compression technology reduces bandwidth usage and storage requirements while maintaining video quality.
Connectivity: Supports 4G communication for real - time data transmission in areas with cellular coverage.
