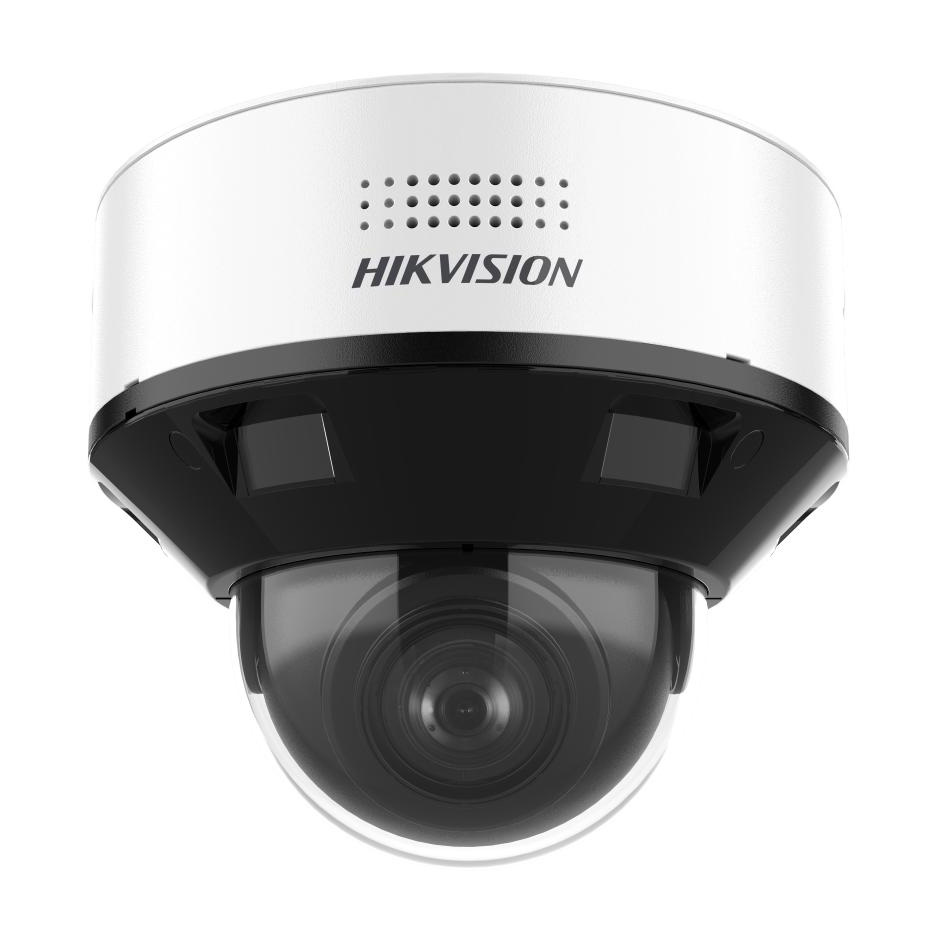

4MP DarkfighterS DeepinView 150dB WDR PTRZ Dome Camera

Share to:

4MP DarkfighterS DeepinView 150dB WDR PTRZ Dome Camera

This 4MP DarkfighterS DeepinView PTRZ Dome Camera captures high-quality footage, excels in low-light and backlit scenarios, ensures efficient data handling.

Characteristics

• 4MP resolution
• Darkfighter 2.0 for excellent low-light performance
• 150 dB true WDR for backlight adaptation
• Efficient H.265+ compression
• 5 streams for diverse applications
• IP67, IK10 (and optional NEMA 4X) protection

Availability:



Inquire Add to Basket

Model:
iDS-2CD7547G2-XZHS(Y)
Brand:
Hikvison
Code:
8525801302

iDS-2CD7547G2-XZHS(Y) Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0003 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule, Alarm Trigger (with IR cut filter and blue glass module)
Zoom	Varifocal (focal length: 2.8 to 12 mm)
Focal Length	2.8 to 12 mm
FOV	Horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°
Focus	Auto, Semi - auto, Manual
Zoom Speed	Not specified
Supplement Light Range	2.8 to 12 mm: up to 40 m
Movement Range (Pan)	0° to 355°
Movement Range (Tilt)	0° to 85°
Main Stream	Monitoring mode:50 Hz: up to 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 120 fps (1920 × 1080)
	Smart mode: 50 Hz: 25 fps; 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280× 720)
	Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	150 dB
Dimension	Ø182.7 mm × 150 mm (Ø7.2" × 5.9")
Weight	With - Y: Approx. 1900 g (4.19 lb.), Without - Y: Approx. 2170 g (4.78 Ib.)
Material	Aluminum alloy body
Protection	IP67, IK10；Y: NEMA 4X

Application

Indoor Public Spaces: Ideal for monitoring large indoor areas like shopping malls, airports, and train stations, leveraging high resolution, and wide dynamic range for clear imaging in diverse lighting conditions.
Security - Critical Areas: Suited for banks, government buildings, and data centers, with vibration detection, vandal proofing, and efficient compression ensuring reliable surveillance and data security.
Commercial and Office Buildings: Perfect for lobbies, corridors, and shared workspaces, where the PTRZ capability allows for flexible viewing angle adjustment and the multiple streams meet various monitoring and management needs.

Product standards

Imaging: 4MP resolution with Darkfighter 2.0 technology for excellent low - light performance.
Compression: Efficient H.265+ compression to save bandwidth and storage.
Durability: IK10 vandal proof rating; optional NEMA 4X corrosion resistance.
Special Features: Built-in power meter for historical power statistics; unique PTRZ capability for efficient installation and maintenance.
