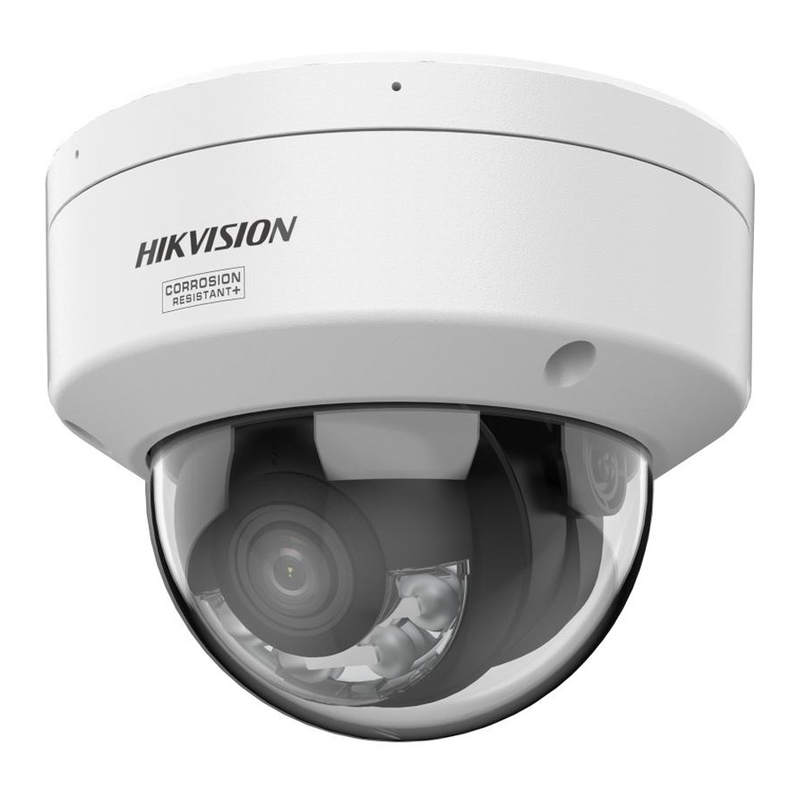

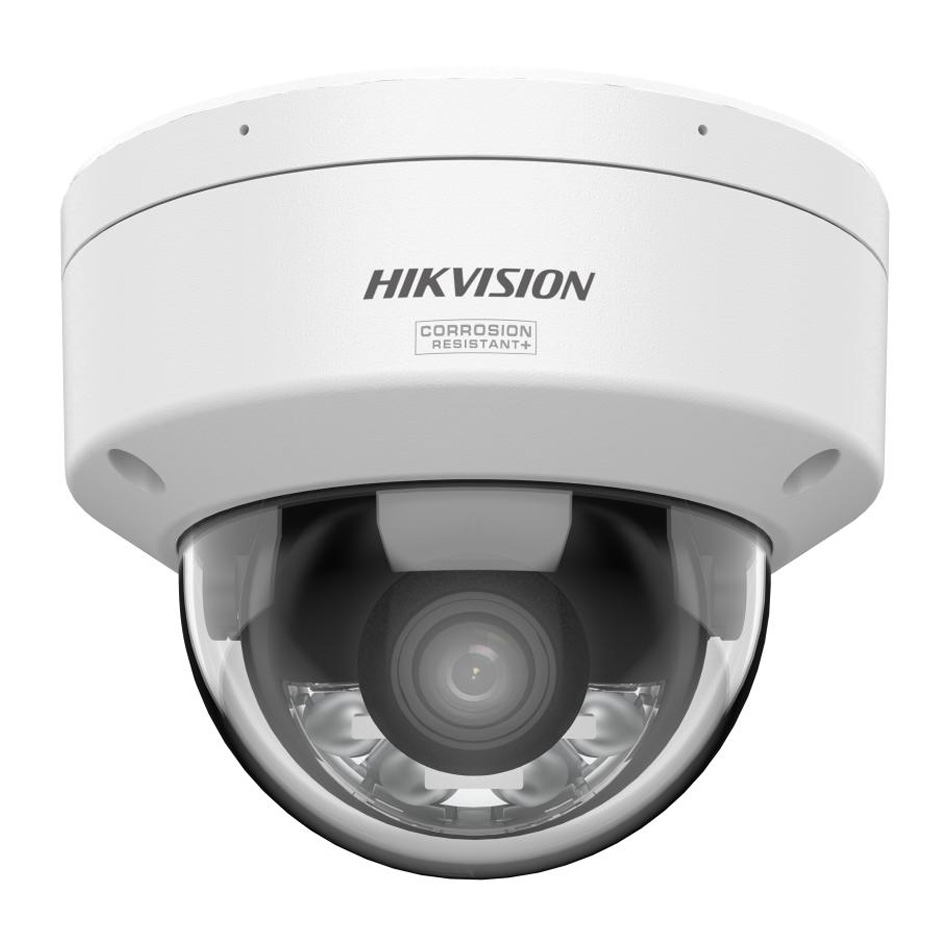

6MP Smart Hybrid Light Dome Camera ColorVu for Vivid

This 6MP dome network camera enables clear 24/7 color imaging, smart surveillance, and durable operation in various environments, with high - quality audio capture for - S2U models.

Characteristics

• 6MP resolution
• 24/7 colorful imaging via ColorVu technology
• HikAI - ISP for excellent noise reduction
• Scene - adaptive WDR
• Person and vehicle classification based on deep learning
• S2U: Built - in arrayed dual - microphone for real - time high - quality audio

Availability:



Inquire Add to Basket

Model:
DS-2CD2167G3-LI(S2U)Y
Brand:
Hikvison
Code:
8525801302

DS-2CD2167G3-LI(S2U)Y Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3200 × 1800
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Zoom	Fixed focal (2.8 mm and 4 mm optional)
Focal Length	2.8 mm；4 mm
FOV	2.8 mm: horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°；4 mm: horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Supplement Light Range	Up to 30 m
Movement Range (Pan)	0° to 355°
Movement Range (Tilt)	0° to 75°
Main Stream	50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800，2688 × 1520, 1920 × 1080, 1280 × 720) Video compression: H.265/H.264/H.264+/H.265+
Wide Dynamic Range (WDR)	130 dB
Dimension	Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Weight	Approx. 600 g (1.3 lb.) (device only)；Approx. 825 g (1.8 lb.) (with package)
Material	Base: aluminum alloy, cover: aluminum alloy
Protection	IP67, IK10；NEMA 4X

Application

Security-Critical Areas: Lobbies, corridors, parking garages (clear 24/7 imaging, durable protection).
Smart Surveillance Zones: Commercial complexes, industrial sites, public squares (intelligent detection, anti-corrosion for harsh conditions).
Audio-Focused Scenarios: Retail stores, offices, campuses (S2U model captures high-quality real-time audio).

Product standards

Imaging: 6MP resolution; ColorVu for 24/7 color imaging; HikAI - ISP for noise reduction; deep learning - driven person/vehicle classification; scene - adaptive WDR.
Lighting: Smart Hybrid Light; anti - corrosion NEMA4X; IP67 water/dust resistance, IK10 vandal resistance.
Audio: Arrayed dual - microphone for high - quality real - time audio capture.
