8MP Smart Hybrid Light Fixed Dome Network Camera

Share to:

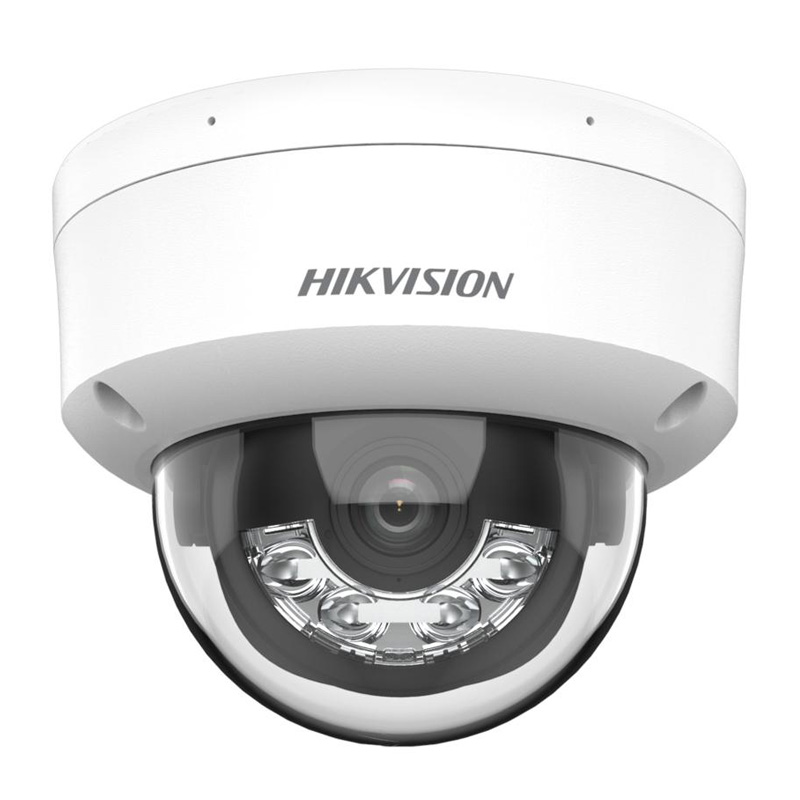

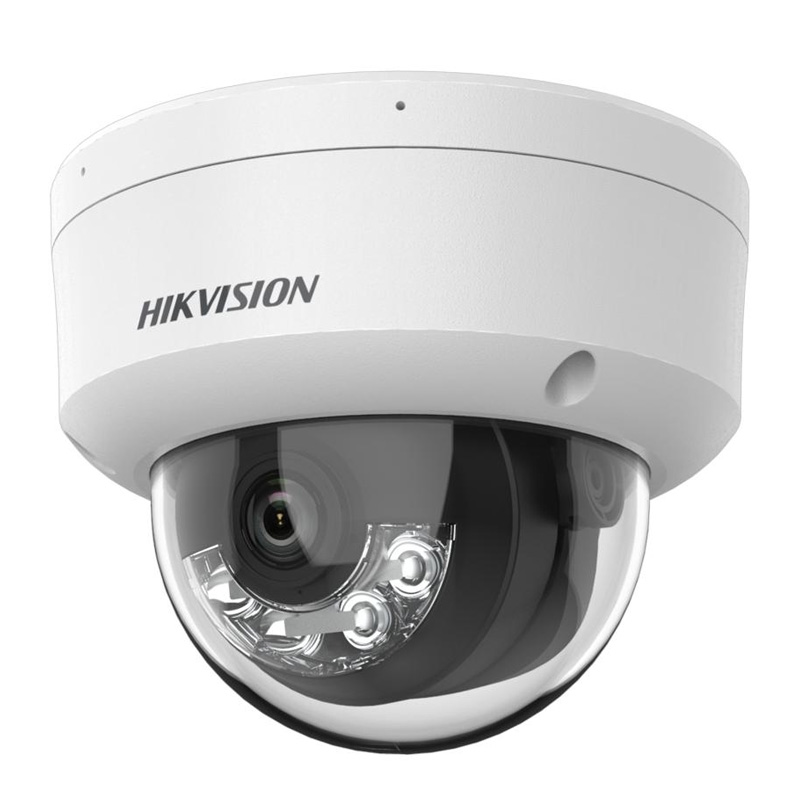

8MP Smart Hybrid Light Fixed Dome Network Camera

This 8 MP Smart Hybrid Light Fixed Dome Network Camera enables high-definition imaging, smart target detection, and reliable surveillance with hybrid light tech, efficient compression, and durable features.

Characteristics

• 8 MP resolution for high-quality imaging
• Support Human and Vehicle Detection
• Smart Hybrid Light with long range
• Efficient H.265+ compression technology
• Optional on-board storage up to 512 GB (SD card slot)
• Built-in microphone for real-time audio security
• IP67 water/dust resistance and IK08 vandal resistance

Lens:	2.8mm 4mm
Availability:



Inquire Add to Basket

Model:
DS-2CD1183G2-LIU(F)
Brand:
Hikvison
Code:
8525801302

DS-2CD1183G2-LIU(F) Datasheet

Image Sensor	1/2.7" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR
Day & Night	Day, Night, Auto, Schedule (with IR cut filter)
Zoom	Fixed focal lens (2.8 mm and 4 mm optional)
Focal Length	2.8 mm, 4 mm (optional)
FOV	2.8 mm: horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm: horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
Focus	Fixed (fixed focal lens)
Supplement Light Range	Up to 30 m
Movement Range (Pan)	0° to 355°
Movement Range (Tilt)	0° to 75°
Main Stream	50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	120 dB
Dimension	Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Weight	Approx. 550 g (1.2 lb.) (device only); Approx. 800 g (1.8 lb.) (with package)
Material	Metal & Plastic
Protection	IP67 (IEC 60529-2013), IK08 (IEC 62262:2002)

Application

Indoor/Outdoor Advanced Monitoring: Schools, industrial parks, residential areas (6MP resolution for sharp imaging, 2.8 - 12 mm motorized varifocal lens for adaptable monitoring, Smart Hybrid Light for extended night vision, Human and Vehicle Detection for smart surveillance).
Key Spot Surveillance: Train stations, hospitals, commercial centers (120 dB WDR for backlight clarity, H.265+ compression for efficient data, built-in mic for audio security).

Product standards

Imaging: 8MP resolution, efficient H.265+ compression technology.
Flexible Monitoring: Supports Human and Vehicle Detection, Smart Hybrid Light with long range.
Storage: Optional on-board storage up to 512 GB (SD card slot), IK08 vandal resistance, built-in microphone for real-time audio security.
