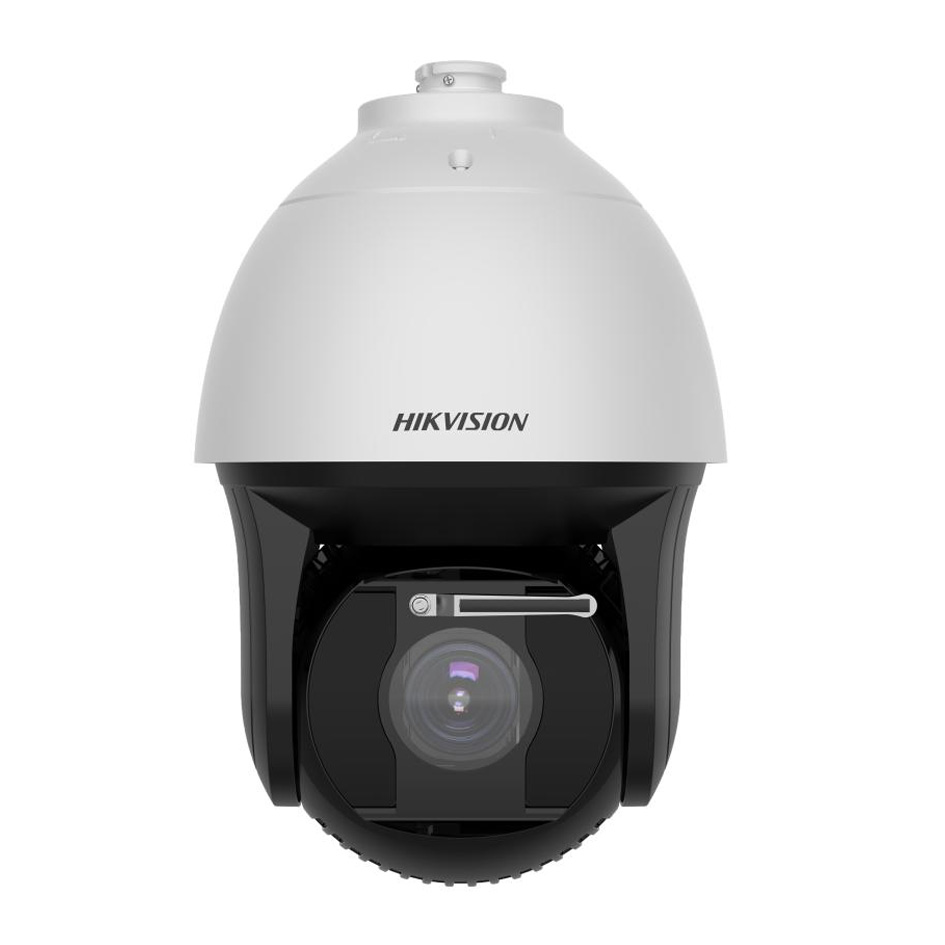

DF8 4MP DarkFighter Laser Speed Dome 42X Zoom 500m Night View

Share to:

DF8 4MP DarkFighter Laser Speed Dome 42X Zoom 500m Night View

This DF8 Series speed dome camera enables clear long - range and low - light surveillance, flexible viewing with zoom, and durable use in tough environments.

Characteristics

• 4MP resolution with 1/1.8" Progressive Scan CMOS
• Excellent low - light performance via DarkFighter 2.0 technology
• 42× optical zoom and 16× digital zoom
• Up to 500 m laser night vision range
• Water and dust resistant (IP67) and vandal proof (IK10, excluding glass window)
• Supports face capture and road traffic vehicle detection

Availability:



Inquire Add to Basket

Model:
DS-2DF8442I5XG1-EL(W)(Y)
Brand:
Hikvison
Code:
8525801302

DS-2DF8442I5XG1-EL(W)(Y) Datasheet

Image Sensor	1/1.8" progressive scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day & Night	Day, night, auto, scheduled-switch (with IR cut filter)
Zoom	42x optical, 16x digital
Focal Length	6.0 mm to 252 mm, 42× Optical
FOV	Horizontal field of view: 56.6° to 1.7° (wide-tele) Vertical field of view: 33.7° to 0.9° (wide-tele) Diagonal field of view: 63.4° to 1.9° (wide-tele)
Focus	Auto, semi-auto, manual, rapid focus
Zoom Speed	Approx. 4.5 s (optical, wide-tele)
Supplement Light Range	Laser Distance: up to 500 m
Movement Range (Pan)	360°
Movement Range (Tilt)	-20° to 90° (auto flip)
Main Stream	50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Wide Dynamic Range (WDR)	150 dB WDR
Dimension	⌀ 266 mm × 410 mm (⌀ 10.47" × 16.14")
Weight	Approx. 8 kg (17.64 lb.)
Protection	IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10, NEMA 4X

Application

Long - Range Surveillance Areas: Highways, large industrial parks, airports (500m laser night vision, 42× optical zoom enable clear monitoring of distant targets like vehicles and personnel).
Low - Light Environments: Night - time city squares, remote perimeters (DarkFighter 2.0 ensures excellent imaging in dim conditions).
Complex Light Scenarios: Traffic intersections with strong headlights, areas with backlighting (150 dB AWDR handles harsh light for clear captures, aiding vehicle and face recognition).

Product standards

Imaging: 4MP resolution with 1/1.8" CMOS; 42× optical + 16× digital zoom for detailed long - range views.
Night Vision : Up to 500m laser distance; DarkFighter 2.0 for low - light, 150 dB AWDR for strong backlight.
Durability: IP67 (dust/water), IK10 (vandal - proof, excl. glass); supports face capture and vehicle detection.
