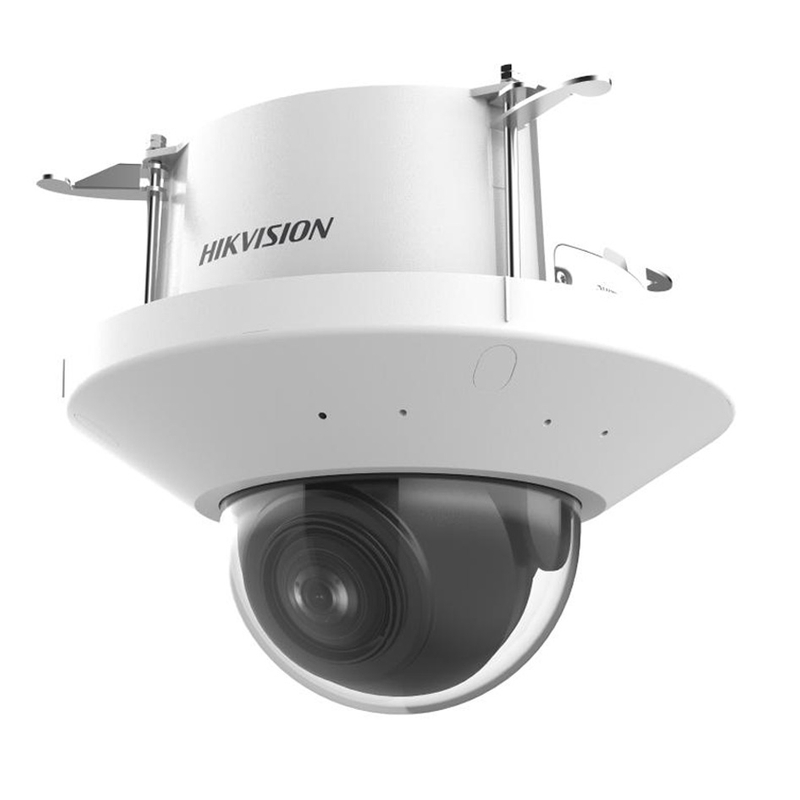

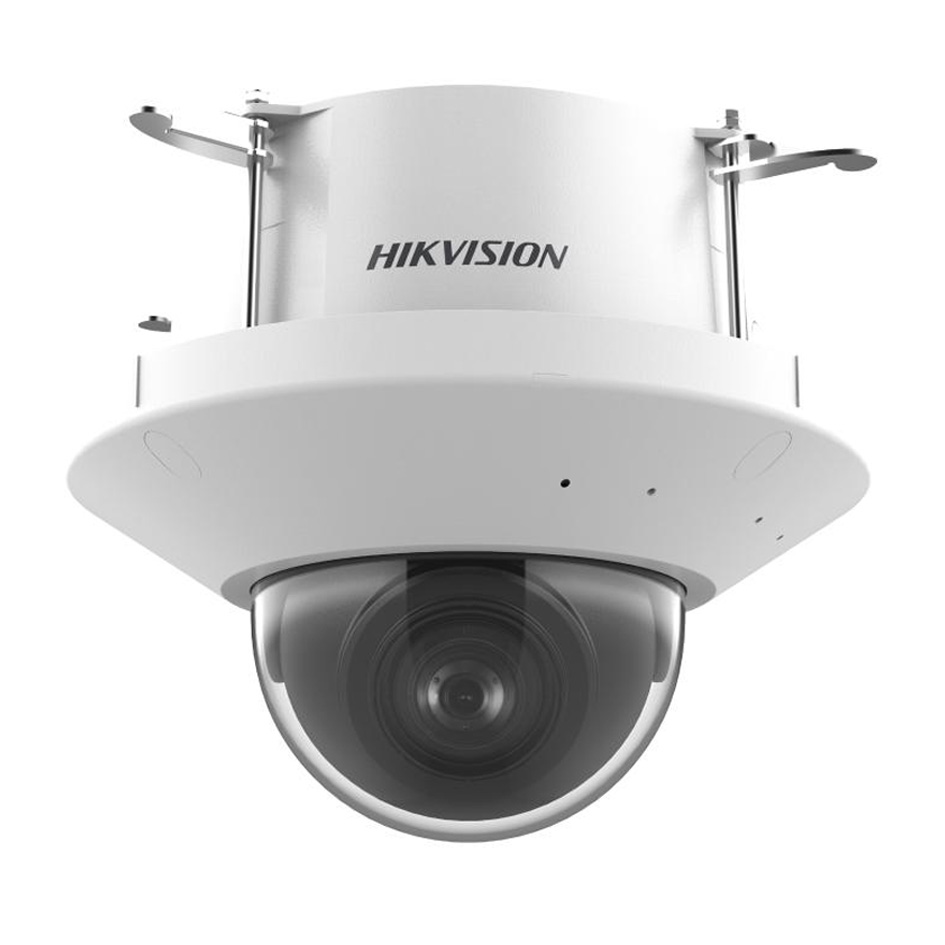

Enhanced Security 4MP DarkfighterS DeepinView Dome Camera for Low - Light Areas

Share to:

Enhanced Security 4MP DarkfighterS DeepinView Dome Camera for Low - Light Areas

This 4MP DarkfighterS DeepinView PTRZ Dome Camera captures high-quality footage, excels in low-light and backlit scenarios, ensures efficient data handling.

Characteristics

• 4MP resolution
• Darkfighter 2.0 technology for excellent low-light performance
• 150 dB true WDR for backlight adaptation
• Efficient H.265+ compression
• IP67 & IK10 protection
• High frame rate (up to 4MP@60fps, 2MP@120fps)
• 5 streams for diverse applications
• Built-in G-sensor and power meter
• Unique PTRZ capability

Lens:	2.8-12mm 8-32mm 10-50mm
Availability:



Inquire Add to Basket

Model:
iDS-2CD7547G2-ZHS/RC
Brand:
Hikvison
Code:
8525801302

iDS-2CD7547G2-ZHS/RC Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0003 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON)
Day & Night	Day, Night, Auto, Schedule, Alarm Trigger
Zoom	Varifocal (multiple focal length options: 2.8 to 12 mm, 8 to 32 mm, 10 to 50 mm)
Focal Length	2.8 to 12 mm；8 to 32 mm；10 to 50 mm
FOV	2.8 to 12 mm: horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°；8 to 32 mm: horizontal FOV 37.8° to 16.0°, vertical FOV 21.7° to 9.2°, diagonal FOV 43.2° to 18.2°；10 to 50 mm: horizontal FOV 41.5° to 9.3°, vertical FOV 23.2° to 5.3°, diagonal FOV 49.9° to 10.7°
Focus	Auto, Semi - auto, Manual
Movement Range (Pan)	0° to 355°
Movement Range (Tilt)	0° to 75°
Main Stream	Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720), up to 120 fps (1920 × 1080)
	Smart mode: 50 Hz: 25 fps; 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
	Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	150 dB
Dimension	Ø210 mm × 169 mm (Ø8.3" × 6.7")
Weight	Approx. 1910 g (4.2 lb.) (device only)；Approx. 2450 g (5.4 lb.) (with package)
Material	Aluminum alloy body
Protection	IP67, IK10

Application

Indoor Public Spaces: Ideal for monitoring large indoor areas like shopping malls, airports, and conference centers, leveraging high resolution, low - light performance, and wide dynamic range for clear imaging.
Security - Sensitive Areas: Suited for areas requiring robust security such as banks, government buildings, and data centers, with vibration detection, vandal proofing, and efficient compression for reliable surveillance.
Recessed Ceiling Installations: Perfect for environments where a sleek, unobtrusive look is desired, like luxury hotels, high - end offices, and upscale residential buildings, due to its recessed ceiling mount design.

Product standards

Imaging: 4MP resolution with Darkfighter 2.0 technology for excellent low - light performance; 150 dB true WDR for clear imaging against strong backlight; high frame rate up to 4MP@60fps and 2MP@120fps.
Compression & Streaming: Efficient H.265+ compression to save bandwidth and storage; 5 streams to meet diverse application needs.
Durability & Protection: IP67 water and dust resistance; IK10 vandal proof rating.
Special Features: Built - in G - sensor for vibration detection; built - in power meter for historical power statistics; unique PTRZ capability for efficient installation and maintenance.
