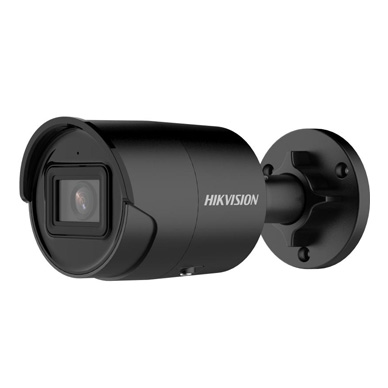

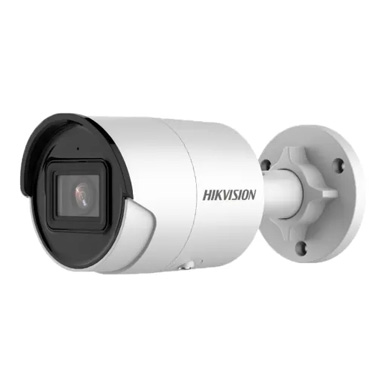

Hikvision 4MP AcuSense Fixed Bullet Network Camera

Share to:

Hikvision 4MP AcuSense Fixed Bullet Network Camera

This 4MP bullet camera serves security monitoring, featuring 4MP imaging, H.265+ compression, 120 dB WDR, IP67 protection.

Characteristics

• 4 MP resolution
• 120 dB WDR technology
• Efficient H.265+ compression
• Focus on human and vehicle targets classification
• Water and dust resistant (IP67)
• Fixed bullet design for stable monitoring

Color:	White Black
Availability:



Inquire Add to Basket

Model:
DS-2CD2043G2-I(U)
Brand:
Hikvison
Code:
8525801302

DS-2CD2043G2-I(U) Datasheet

Image Sensor	1/3″ Progressive Scan CMOS

Wide Dynamic Range	120 dB

Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens Type & FOV	2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
	4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
	6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
DORI	2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
	4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
	6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m
IR Range	Up to 40 m

Max. Resolution	2688 × 1520

On-board Storage	Built-in micro SD, up to 512 GB

Perimeter Protection	Line crossing detection, intrusion detection
	Supports human and vehicle targets classification
Power Interface	Ø 5.5 mm coaxial power plug

Camera Dimension	Ø70 × 161.7 mm (Ø2.76″× 6.37″)

Camera Weight	Approx. 490g (1.1 lb.)

Protection	IP67 (IEC 60529-2013)

Applications

Residential Security：Monitors villa (4MP clarity + human/vehicle detection for alerts) and home entrances/driveways.
Commercial/Retail Use：Secures storefronts/malls and office buildings (target classification for access/incident monitoring).
Industrial：Guards plant perimeters (IP67 for harsh environments) and logistics (WDR for all-light license plate recognition).
Public：Oversees parking lots (suspicious activity detection) and streets/intersections.
