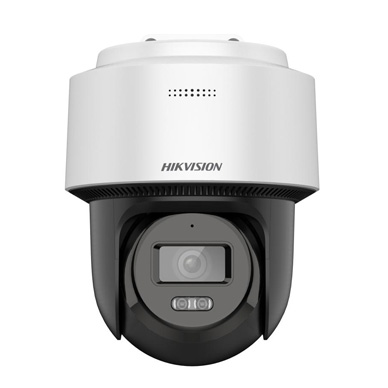

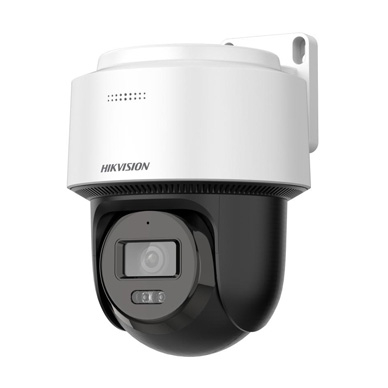

DS-2DE2C400MWG-E
Hikvison
8525801302
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max.Resolution | 2560 × 1440 |
| Day & Night | Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0.005 Lux @ (F2.0, AGC ON); 0 Lux with light |
| Angle Adjustment - Pan | 0° to 345° |
| Angle Adjustment - Tilt | 0° to 80° |
| Lens Type | Fixed (2.8mm、4mm) |
| Focal Length & FOV - 2.8mm | horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° |
| Focal Length & FOV - 4mm | horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85° |
| IR Wavelength | 850 nm |
| Main Stream | 50Hz: 20fps(2560×1440、1920×1080、1280×720 );60Hz: 20fps(2560×1440、1920×1080、1280×720 ) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Built-in Microphone | 1 built-in microphone |
| Material | Plastic |
| Dimension - Camera | 163.9mm×185.8mm×131.9mm(6.45"×7.31"×5.19" ) |
| Dimension - Package | 224mm×164mm×230mm(8.82×6.46"×9.06" ) |
| Weight - Camera | 600g(1.32lb. ) |
| Weight - Package | 900g(2.0lb. ) |
| Protection | IP66(IEC 60529 - 2013 ) |
Applications
Large-Scale Perimeter Security:Secures industrial zones (4MP clarity, auto-tracking of intruders) and commercial compounds.
Remote Site Monitoring:Monitors construction sites (Hik-Connect remote access) and farmlands (PTZ movement to cover wide areas).
Public Area Surveillance:Oversees parks (human detection to flag anomalies) and parking lots (SD card storage for local footage backup).
Critical Infrastructure:Guards power stations and water facilities (IP66 resistance, smart hybrid lighting for night vision.
Product standards
Imaging:4MP resolution, Digital WDR
Detection:Human Detection + Auto-tracking Lite
Lighting:Smart Hybrid Light (long-range)
Audio:Built-in mic + speaker
Storage:Supports up to 512 GB microSD
