| Availability: | |
|---|---|

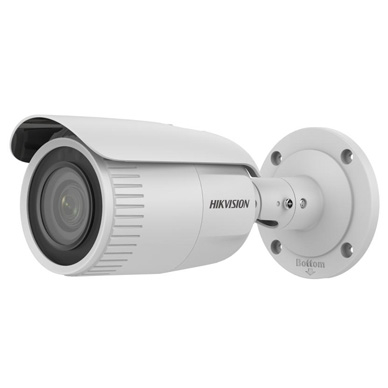

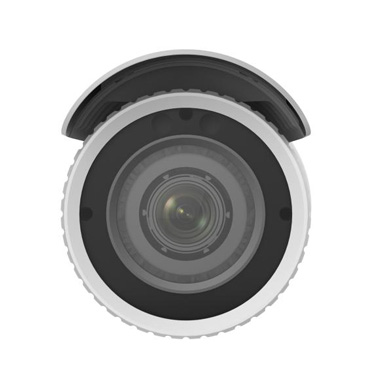

DS-2CD1643G0-I(Z)
Hikvison
8525801302
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| Wide Dynamic Range | 120 dB |
| Field of Vision | 2.8 to 12 mm: 102° to 31° (H), 55° to 18° (V), 122° to 36° (D) |
| IR Distance | Up to 50 m |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Max. Resolution | 2560 × 1440 |
| Max. Frame | 50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) | |
| Power | 12 VDC ± 25%, 0.9 A, max. 11 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W |
| Working Temperature | -30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67 (IEC 60529-2013) |
| Material | Metal |
| Dimensions | Ø 105 mm × 244.4 mm (Ø 4.1" × 9.6") |
| Weight | Approx. 1035 g (2.3 lb.) |
Application
Large-Scale Perimeter Security:Secures industrial parks (4MP clarity, 2.8 - 12mm varifocal lens to cover wide/narrow zones) and commercial estates (IP67 weatherproof, EXIR 2.0 for night surveillance).
Critical Infrastructure:Monitors power plants (120dB WDR for backlight areas like transformers) and water facilities (varifocal lens to adjust view of pipelines).
Retail & Logistics:Oversees warehouse loading docks (H.265+ to save storage, 256GB SD support) and store parking lots (varifocal lens to zoom on entry points).
Outdoor Public Spaces:Guards park perimeters (EXIR 2.0 night vision) and street intersections (4MP detail to capture license plates with varifocal zoom).
Product standards
Imaging:4MP resolution, 120 dB WDR for clear backlit imaging
Compression:Efficient H.265+ compression technology
Storage:Supports up to 256 GB SD card
Lens:2.8 - 12 mm motorized varifocal lens for adjustable FOV
Night Vision:EXIR 2.0 infrared technology for long - range night surveillance
Durability:IP67 water and dust resistance
