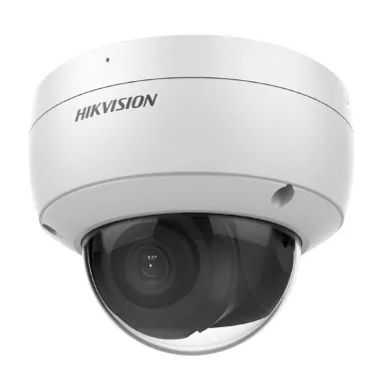

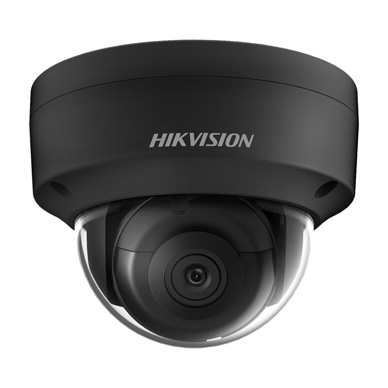

DS-2CD2183G2-I(S)
Hikvison
8525801302
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Wide Dynamic Range | 120 dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Focal Length & FOV | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
| 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105° | |
| DORI | 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m |
| 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m | |
| IR Range | Up to 30 m |
| Max. Resolution | 3840 × 2160 |
| Camera Material | Aluminium Alloy Body |
| Bubble: Plastic | |
| Camera Dimension | Ø 110.8 mm × 84.7 mm (Ø 4.4" × 3.3") |
| Camera Weight | Approx. 520 g (1.1 lb.) |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
Applications
High-Security Residences:Gated communities(8MP clarity, human/vehicle classification, IK10+IP67).
Commercial:large stores (8MP for crowd management/anti-theft, H.265+ saves storage); offices/campuses (access control, sensitive area monitoring).
Logistics:logistics hubs (target classification for truck/forklift monitoring).
Public:Airports、 city streets and squares (traffic management, law enforcement evidence).
Product standards
Imaging:8MP res, 120dB true WDR
Compression:H.265+ for quality/storage balance
Detection:AcuSense human/vehicle classification
Durability:IP67 (dust/water), IK10 (vandal-resistant)
