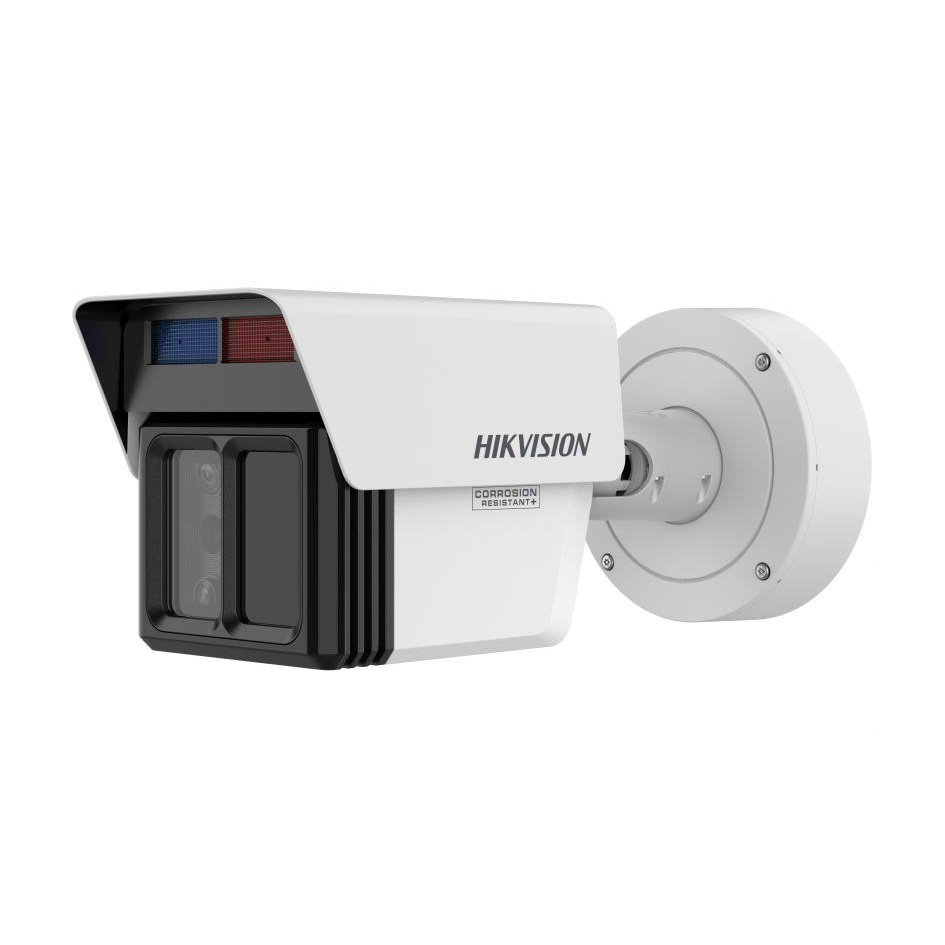

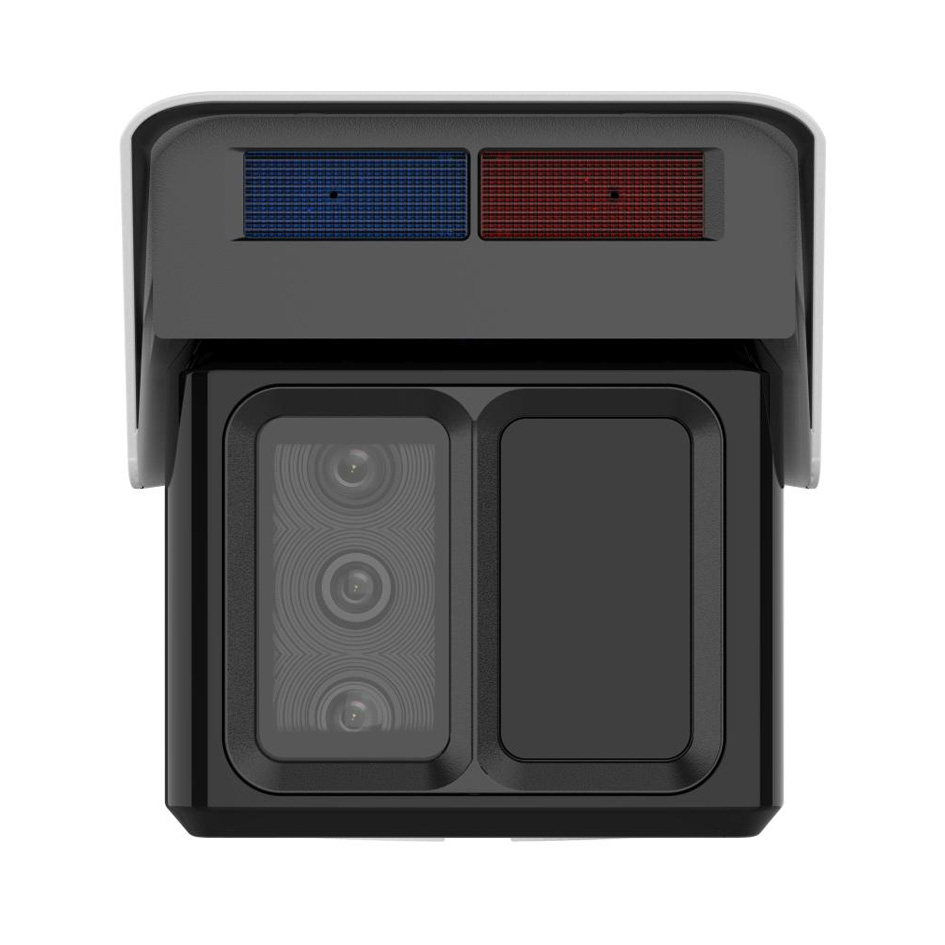

Perimeter Security Camera 4MP DeepinViewX Triple Fixed Lens Bullet

Share to:

Perimeter Security Camera 4MP DeepinViewX Triple Fixed Lens Bullet

This 4MP DeepinViewX Triple Fixed Lens Bullet Camera captures high-quality footage for perimeter protection, delivers excellent low-light performance, ensures efficient data compression and transmission.

Characteristics

• 4MP + 2 × 2MP resolution
• DarkFighter 2.0 Sharpmotion for excellent low-light performance
• Efficient H.265+ compression
• IP67, IK10 (and optional NEMA 4X) protection
• Dedicated Guanlan large-scale AI model for perimeter protection
• Red/blue alarm LED and audible warning
• Motorized tilt adjustment (-10° to 10°)
• TPM 2.0 for cyber security

Availability:



Inquire Add to Basket

Model:
iDS-2CD7T46G2/VX3-I(H)S(Y)
Brand:
Hikvison
Code:
8525801302

iDS-2CD7T46G2/VX3-I(H)S(Y) Datasheet

Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON)
Day & Night	Day, Night, Auto, Schedule, Alarm Trigger
Focal Length	6 mm
FOV	6 mm: horizontal FOV 51°, vertical FOV 55.2°, diagonal FOV 73°
Focus	Fixed focus (fixed focal lens)
Zoom Speed	Not applicable (no zoom function)
Main Stream	50 Hz: 25 fps (2560 × 2880) 60 Hz: 24 fps (2560 × 2880) Video compression: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR)	120 dB
Dimension	142.7 mm × 111.9 mm × 199.8 mm (5.62" × 4.41" × 7.87")
Weight	Approx. 1810 g (3.99 lb.) (device only)；Approx. 990 g (2.18 lb.) (with package)
Material	Metal and plastic

Application

Perimeter Security: Ideal for securing the perimeters of industrial sites, residential communities, and commercial complexes, detecting persons and vehicles up to 120 m with reduced false alarms.
Low - Light Environments: Well - suited for areas with poor lighting like parking lots or remote fences, leveraging DarkFighter 2.0 Sharpmotion for excellent night vision.
Harsh Conditions: Applicable in outdoor settings with dust, water, or potential vandalism, thanks to IP67, IK10, and optional NEMA 4X ratings.

Product standards

Imaging: 4MP + 2 × 2MP resolution for high - quality visuals; DarkFighter 2.0 Sharpmotion ensures great low - light performance.
Compression: Efficient H.265+ compression saves bandwidth and storage.
Durability: IP67 (water/dust resistance), IK10 (vandal proof), optional NEMA 4X (corrosion resistance).
Intelligence: Dedicated Guanlan large - scale AI model for perimeter protection, reducing false alarms by 90% compared to conventional AI cameras.
