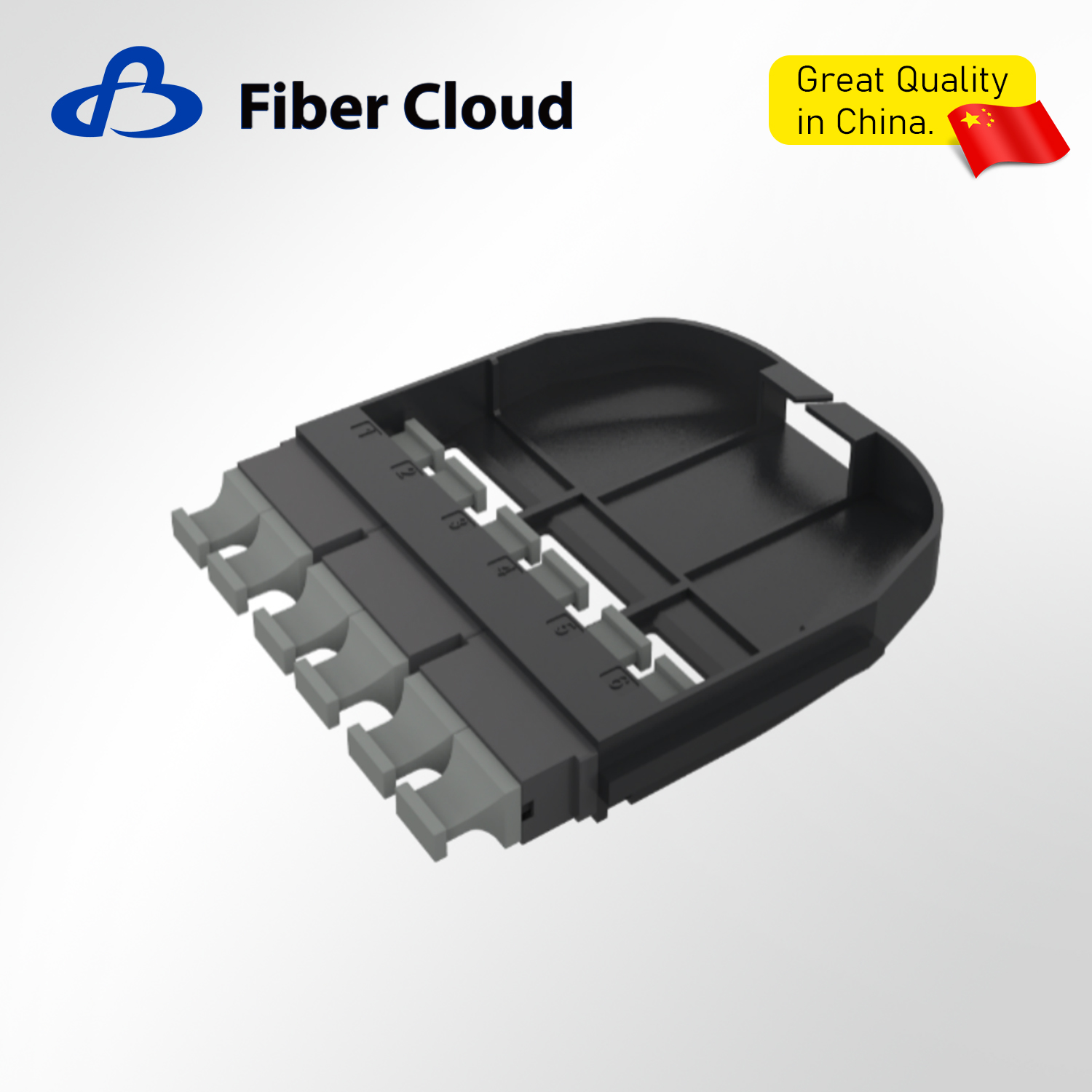

Adapter Panel (UDF) for Data Center Solutions

The UDF series adapter panel provides well-timed and effec-tive port management for MTP or LC connectors to realize the connection management of MTP or LC connectors. Multiple speciﬁcations of conﬁgurations are available, which can support the use of hardware products in iCONEC®UDF solutions. The panel is used in conjunction with on-site installed connectors, or for the cabling of pre-installed connecors directly from devices to interconnected hardware.

Characteristic

The schemes of ﬁxing distributed adapters consider the operation of plugging and unplugging by one hand
Duplex LC adapters with built-in dustproof covers are used to prevent dust effectively
DLC and MTP panels can be applied to the cabling installation from the inside of ﬁber optic patch panels to improve the efﬁciency
The hierarchical arrangement perfectly matches the wire trimming devices in the front of the UDF patch panel to make wiretrimming simple and reliable

Availability:



Inquire Add to Basket

Product Description

Main Technical Parameters

Product Model	Technical Index
Product Size	482mm460mm44mm（1U） 482mm460mm177mm（4U）
Height	1U/4U
Color	Black
Adapter	The adapter panel should be purchased separately
Material Composition	The box is made of high-quality cold-rolled steel, and the plastic parts are sprayed with electrostatic epoxy powder on the surface, the flame retardant property of which can meet the requirements of GB5169.7 Experiment A.
Adapter Type	LC, MTP, MPO, etc.
Electrical Performance	Insulation resistance: ≥1,000Mfi/500V (DC) Withstand voltage: ≥3,000V (DC) 1/min, no breakdown, no flashover
Using Environment	Indoor
Product Standard	GB/T 2423.1-2008 Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test A: Low temperature GB/T 2423.2-2008 Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test B: High temperature, GB/T 2423.3-2006 Environmental Testing for Electric and Electronic Products Part 2: Test Methods Test Cab: Steady damp-heat test, GB/T 2423.17-2008 Environmental Testing for Electric and Electronic Products Part 2: Test Methods - Test Ka: Salt mist, GB/T 2829-2002 Periodic Inspection Counting Sampling Procedures and Table (applicable to inspection of the process stability) GB/T 3873-1983 General Technical Specifications for Packing of Communications Equipment Products GB/T 5169.9-2006 Fire Risk Testing for Electric and Electronic Products - Part 9: Guideline for assessing the fire hazard, Use of preselection testing procedures, GB/T 9286-1998 Paints and Varnishes-Cross Cut Test for Films GB/T 12507.1-2000 Connectors for optical fibres and cables Part 1: Generic specification, YD/T 778-2006 fiber optic patch panel
Operation Temperature	-25℃ to +55℃
Environment Humidity	≤ 93%（+40℃）
Atmospheric Pressure	70 kPa to 106 kPa

Product Model

Product Model	Product Description
DFUMTUMDE12	UDF Module/1*12-Core MTP to 6D LC, G.657.A2
DFUMTUMDA12	UDF Module/1*12-Core MTP to 6D LC, OM3
DFUMTUMDN12	UDF Module/1*12-Core MTP to 6D LC, OM4
DFUMTUMDD12	UDF Module/1*12-Core MTP to 6D LC, OM5
DFUMTUMDE24	UDF Module/3*8-Core MTP to 12D LC, G.657.A2
DFUMTUMDA24	UDF Module/3*8-Core MTP to 12D LC, OM3
DFUMTUMDN24	UDF Module/3*8-Core MTP to 12D LC, OM4
DFUMTUMDD24	UDF Module/3*8-Core MTP to 12D LC, OM5
DFUMPUMDE12	UDF Module/1*12-Core MPO to 6D LC, G.657.A2
DFUMPUMDA12	UDF Module/1*12-Core MPO to 6D LC, OM3
DFUMPUMDN12	UDF Module/1*12-Core MPO to 6D LC, OM4
DFUMPUMDD12	UDF Module/1*12-Core MPO to 6D LC, OM5
DFUMPUMDE24	UDF Module/3*8-Core MPO to 12D LC, G.657.A2
DFUMPUMDA24	UDF Module/3*8-Core MPO to 12D LC, OM3
DFUMPUMDN24	UDF Module/3*8-Core MPO to 12D LC, OM4
DFUMPUMDD24	UDF Module/3*8-Core MPO to 12D LC, OM5

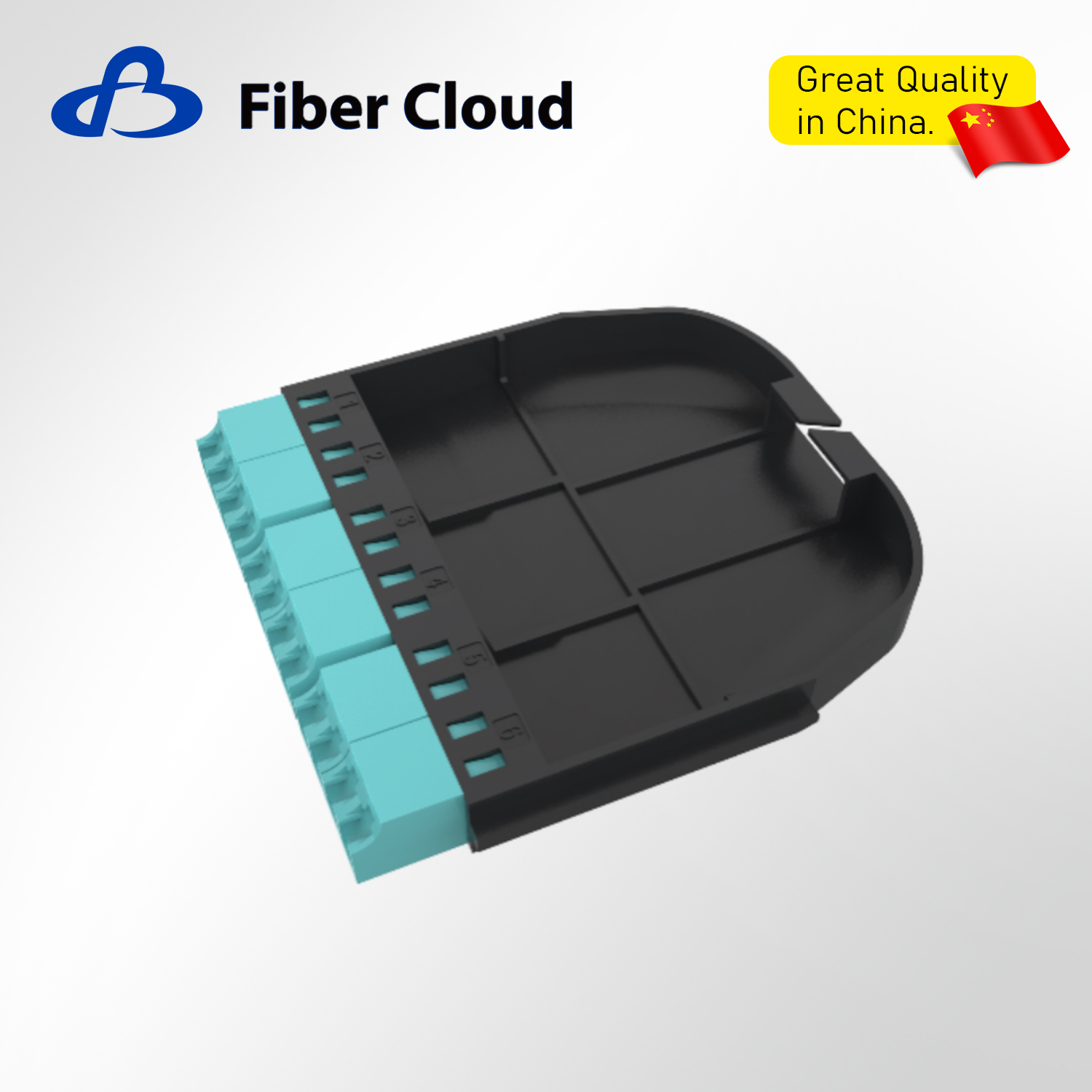

DFUPDUM06	UDF adapter panel/6-port mutil-mode duplex LC, aqua green
DFUPDUD06	UDF adapter panel/6-port mutil-mode duplex LC, lime green
DFUPDUS06	UDF adapter panel/6-port single-mode duplex LC, blue
DFUPMT006	UDF adapter panel/6-port MTP adapter, black (Uscon adapter)

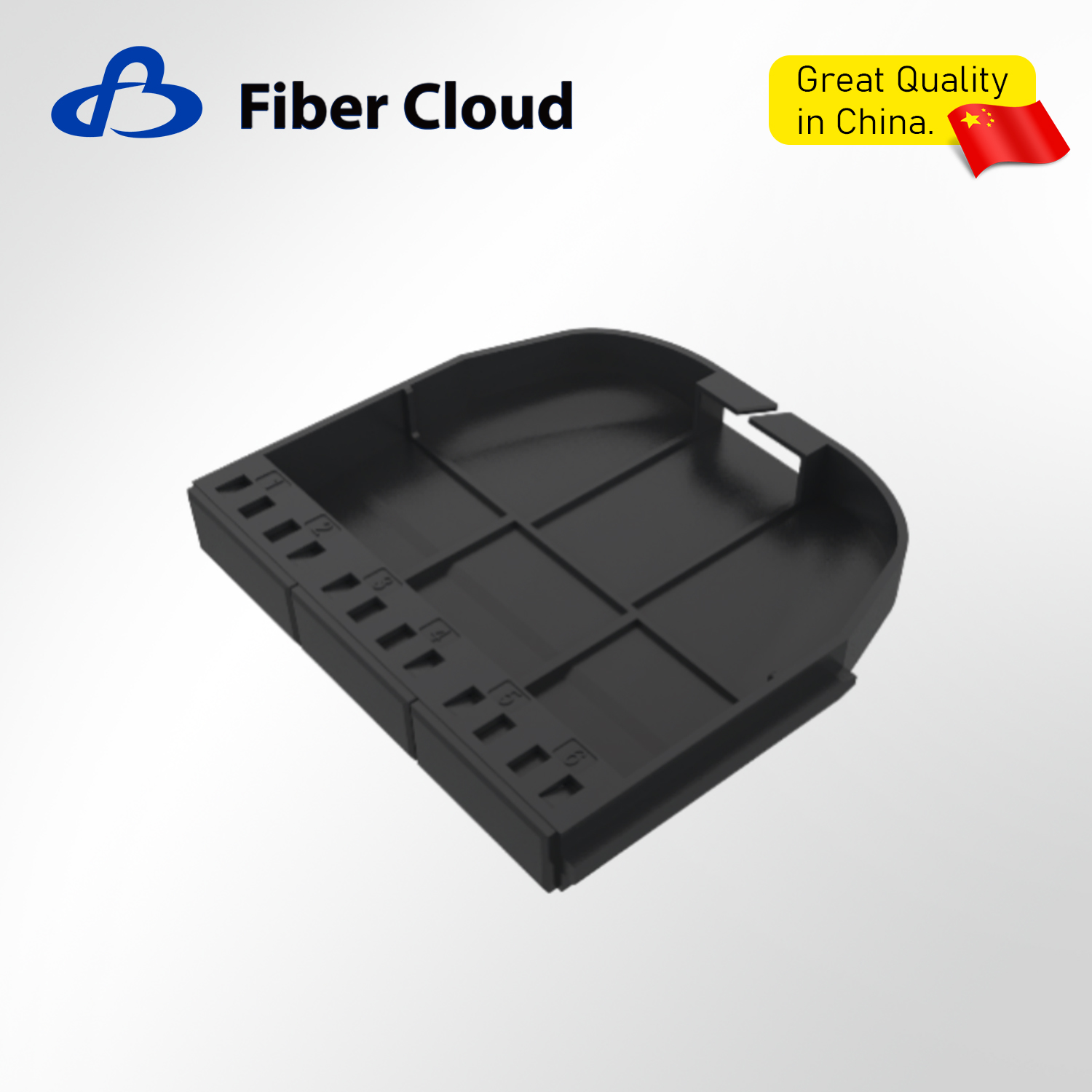

DFUP000	UDF blind plate
DFUTRAY12	UDF fiber splice tray/12 cores
iDFUDTSL01	UDF rack-mounted fiber optic patch panel/empty box, 1U, sliding type, installed with max 12 12-core MTP/LC modules or 12-core DLC panels or blind plates
DFUDTSL04	UDF rack-mounted fiber optic patch panel/empty box, 4U, sliding type, installed with max 48 12-core MTP/LC modules or 12-core DLC panels or blind plates
DFUDZSL01	UDF rack-mounted fiber optic patch panel/empty box, 1U, sliding type, installed with max 6 24-core MTP/LC modules
DFUDZSL04	UDF rack-mounted fiber optic patch panel/empty box, 4U, sliding type, installed with max 24 24-core MTP/LC modules

Remarks: In case of special requirements of customers, design and customization can be carried out according to speciﬁc requirements.

Applications

Used in iCONEC^®UDF series ﬁber optic patch panels to realize the connection and deployment of patch cords and pigtails between devices and in patch panels
