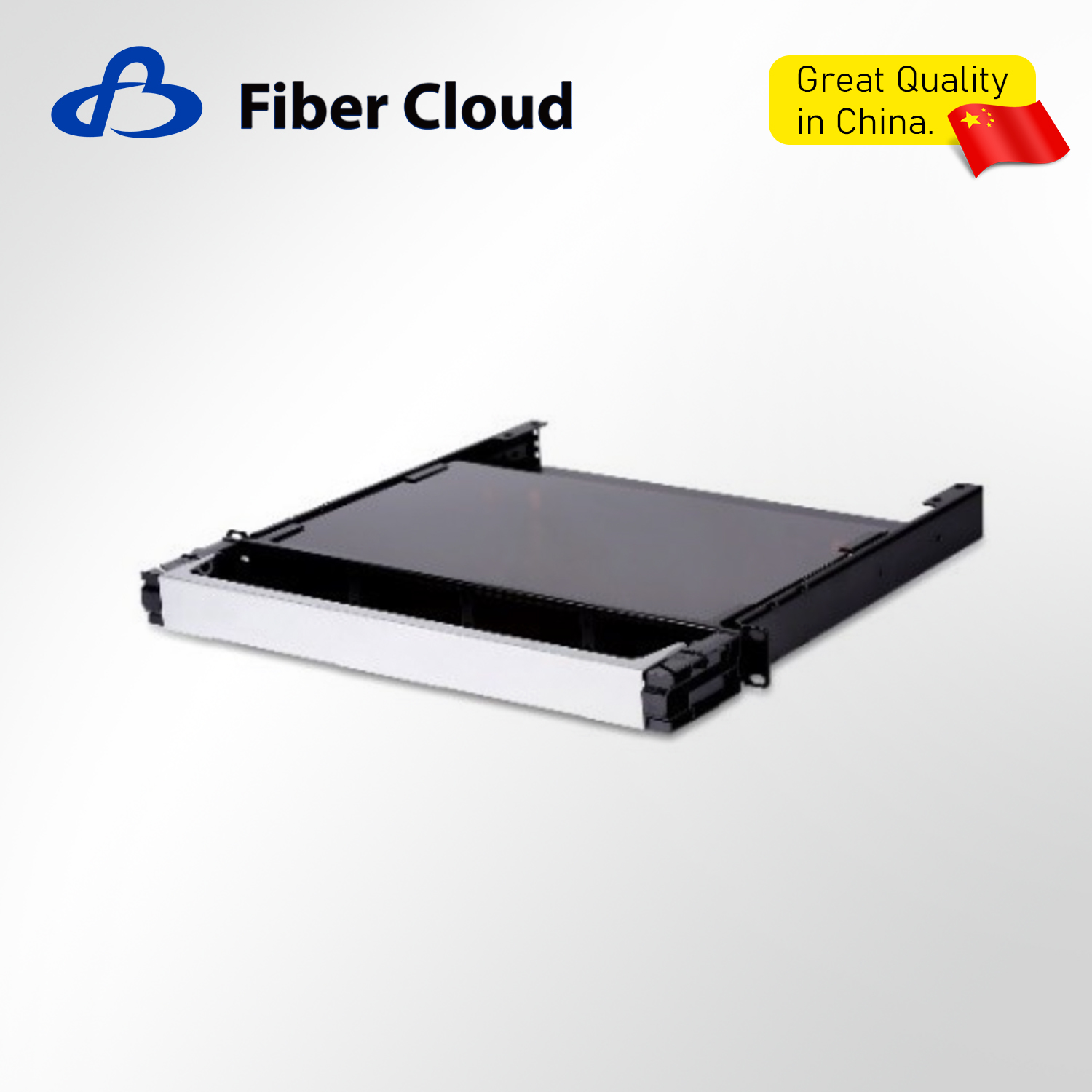

G4 Telescopic Type Fibre Optic Patch Panel for Data Center Solutions

The G4 ﬁber optic patch panel is designed with a standard 19-inch rack, which is mainly used for optical connections and distribution management of EDA, HDA, MDA and other areas of data centers that are splicing-type or pre-ter-minated.

Characteristic

1U, 2U, 3U, 4U and other versions are available
Trunk connections can be ﬁxed by clamping, which makes cabling fast and reliable
Transparent upper cover and tool-free installation, easily withdrawable
Compatible with both splicing-type and pre-terminated solutions
Tiered and telescopic design. Each drawer and each module cassette adopt modular design with high interchangeability.Separate wire trimming at each layer
The professional silent guide with metal balls is smooth and durable. All plates can be drawn out to support the pre-installation of the whole cabinet
The customized cable management panel, and the front cover made of aluminum alloy to make cabling clean and safe
Box coating materials comply with RoHs 2.0
The box meets the requirements of 24H hydrochloric acid experiment
The plugging-and-unplugging operation can control gears, which can ensure convenience and safety in maintaince and operation
The cabling is designed with reasonable density, which can be simpliﬁed into one kind of patch cord length when used with64/128-port switches. The cabling is fast and simple

Availability:



Inquire Add to Basket

Product Description

Main Technical Parameters

Content	Technical Index
Product Size	440mm380mm43.6mm(1U) 440mm380mm88mm（2U） 440mm380mm132mm（3U） 440mm380mm176mm(4U)
Height	1U/2U/3U/4U
Color	Black
Adapter	The adapter panel should be purchased separately
Front panel	Equipped with the front wiring management baffle, wire management rings and wire-out ports on both sides
