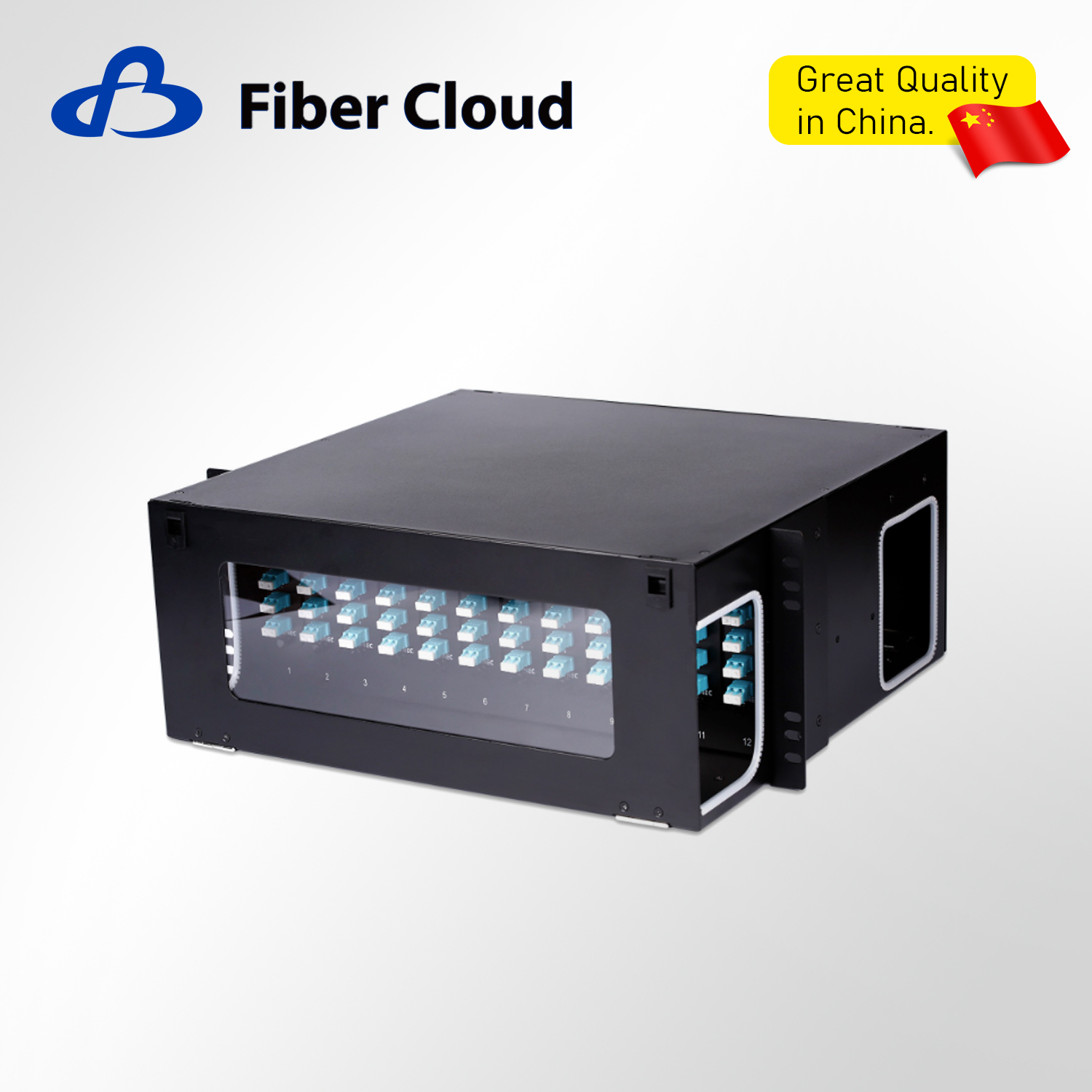

SDF Fibre Optic Patch Panel for Data Center Solutions

The SDF ﬁber optic patch panel is designed with a standard 19-inch rack, mainly used for main cross-connection, intermediate cross-connection and the connection between telecom-munication devices. The installation of racks or equipment cabinets adpots high-density optic cables that have a large number of cores for cross-connection.

Characteristic

1U/4U 3-vacancy/12-vacancy ﬁxed patch panel
Compatible with fusion splicing and pre-terminatedschemes
1U for 72-core (LC adapter) or 24-port (MTP adapter)
4U for 288-core (LC adapter) or 72-port (MTP adapter)
A transparent organic glass cover plate on the top of the 1U patch panel, tool-free installation, easy for inspection and maintenance

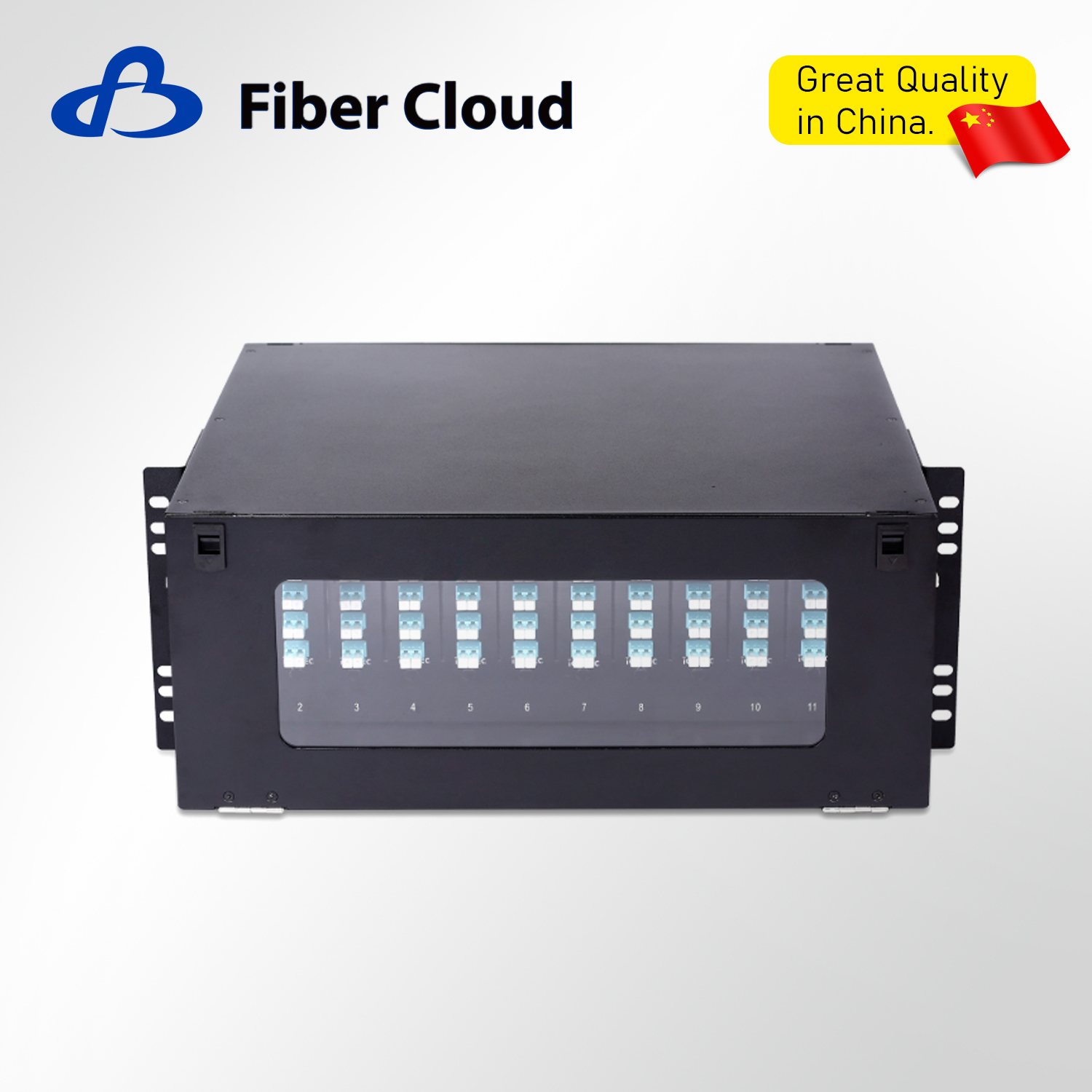

The 4U patch panel adopts a transparent clamshell front endface, which can help management and inspection
The ﬁber splice trays of the 4U patch panel can be drawn outfrom the rear, which is convenient for fusion construction
Multiple optical cable incoming positions and patch cord exits for easy operation and management
The 1U patch panel is equipped with a 24-core SDF MTP/LC conversion module to adapt to multiple applications (such as inside the cabinet, on the cable tray, under the raised ﬂoor, on the wall, etc.), so the valuable and available space of thecabinet for installation will be saved
Box coating materials comply with RoHs 2.0
The box meets the requirements of 24H hydrochloric acid experiment

Availability:



Inquire Add to Basket

Product Description

Main Technical Parameters

Content	Technical Index
Content	Technical Index
Product Size	440mm260mm43.5mm(1U) 435mm176mm400mm（4U）
Height	1U/4U
Color	Black（RAL9005）

Product standards

Comply with the relevant provisions of YD-778
Comply with the relevant provisions of GB2423.17
Meet TIA/EIA 604-5-D-2007 standards
Comply with IEC 61754-7-2008 series standards
