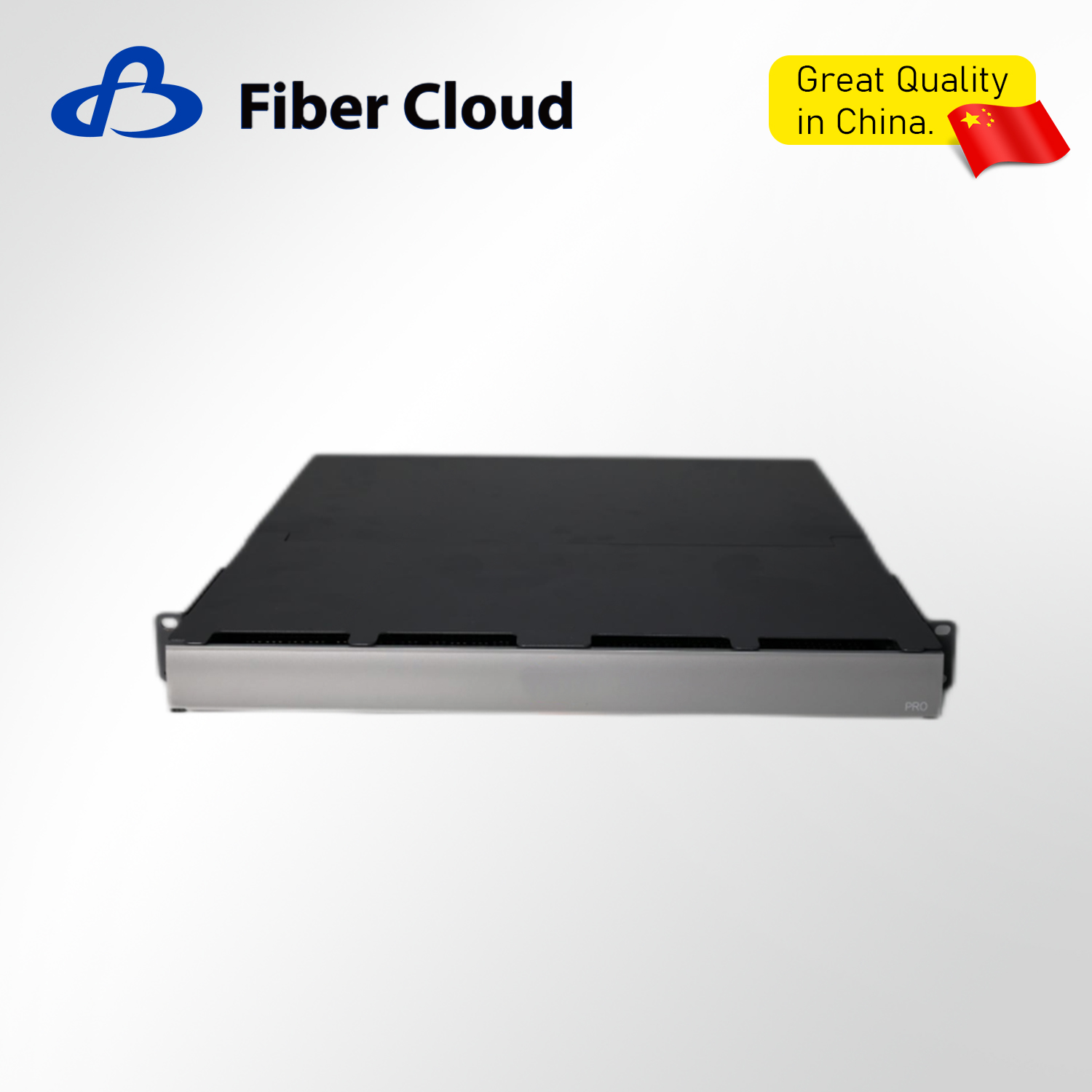

UDF Pro Ultra-high Density Fibre Optic Patch Panel for Data Center Solutions

Characteristic

Suitable for standard 19-inch cabinet/rack installation
The speciﬁcations of 1U and 4U are available for pre-terminated cabling schemes
The maximum conﬁguration of 1U products is 432-core (MDC) or 72-port (MPO/MTP)
The maximum conﬁguration of 4U products is 1728-core (MDC) or 288-port (MPO/MTP)
With new MDC connectors, the optical ﬁber density is 3 times higher than DLC connectors. That means a single MTP-MDC module cassette can accommodate 72 cores, which is in line with the future development and ready to cope with the trend ofultra-high density of data centers
Based on normalized design, the same patch panel is compatible with the MTP to MDC conversion module and the MTP toDLC conversion module, seamlessly connecting to DLC connectors. It can be switched at will and conﬁgured according todemands to accommodate future network expansion and changes. It can serve the smooth upgrading of space densi-ty andnetwork bandwidth. It can also optimize costs of each U of space for users
Designed with general modular accessories, the same ﬁber optic patch panel can support the blend of 10G, 40G, 100G,200Gand 400G links
The module is pressed to be locked and ejected, which can eliminate the inconvenience of plugging and unplugging patch cords in limited space
The stop groove mechanism, together with the handle warning label, can prevent the module from being violently ripped outto break the ﬁber.

Availability:



Inquire Add to Basket

Product Description

Product Model

Product Model	Product Description
UDF-PRO-1U-ODU-SLIDE	UDF PRO rack-mounted fiber optic patch panel/empty box, 1U, sliding type, installed with max 6 72-core MTP/LC modules or 24-core DLC panels or blind plates
UDF-PRO-4U-ODU-SLIDE	UDF PRO rack-mounted fiber optic patch panel/empty box, 4U, sliding type, installed with max 24 72-core MTP/LC modules or 24-core DLC panels or blind plates

Remarks: In case of special requirements of customers, design and customization can be carried out according to speciﬁc requirements.

Applications

IDA, MDA and other areas at the high-density data center
