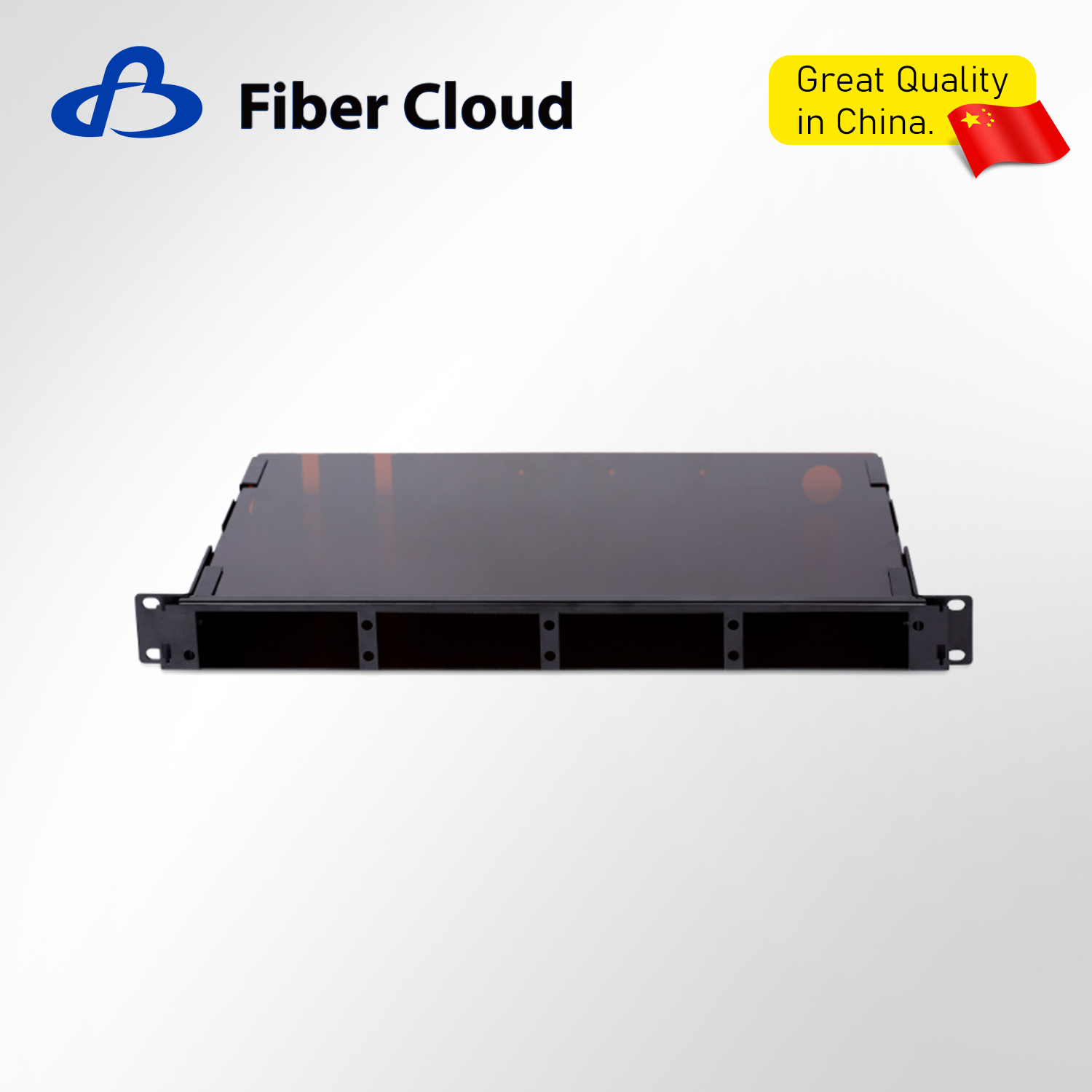

G4 Fixed Type Fibre Optic Patch Panel for Data Center Solutions

Characteristic

Installed ﬁxedly in 1U, and compatible with pre-terminated and fusion splicing cabling schemes
The maximum conﬁguration of pre-terminated cabling is 96-core (DLC) or 32-port (MTP/MPO)
Serve the high-density fusion splicing of 96 cores
Compatible with cabinet/rack installation or cable tray hoisting
Compatible with the ﬁxation of the trunk by clamping or binding
With a transparent upper cover, it is easily withdrawable
With a super compact size, it can support double-sided installation of the cabinet to save half of the room area
The cabling is designed with reasonable density, which can be simpliﬁed into one kind of patch cord. length when used with 64/128-port switches. The cabling is fast and simple
Box coating materials comply with RoHs 2.0
The box meets the requirements of 24H hydrochloric acidexperiment

Availability:



Inquire Add to Basket

Product Description

Main Technical Parameters

Content	Technical Index
Product Size	440mm257mm43.6mm
Weight	1.6kg
Height	1U
Color	Black
Adapter	The adapter panel should be purchased separately

Product Model

Product Model	Product Description
iCONEC-DFGDSL01	G4 rack-mounted fiber optic patch panel/empty box, 1U, sliding type, installed with max 4 G4 MTP/LC modules or 96-core DLC panels or blind plates
iCONEC-DFGDSL02	G4 rack-mounted fiber optic patch panel/empty box, 2U, sliding type, installed with max 8 G4 MTP/LC modules or 192-core DLC panels or blind plates
iCONEC-DFGDSL04	G4 rack-mounted fiber optic patch panel/empty box, 4U, sliding type, installed with max 16 G4 MTP/LC modules or 384-core DLC panels or blind plates
iCONEC-DFGMTUMDE24	G4 Module/2*12-Core MTP to 12D LC, G.657.A2
iCONEC-DFGMTUMDA24	G4 Module/2*12-Core MTP to 12D LC, Bend Insensitive OM3
iCONEC-DFGMTUMDN24	G4 Module/2*12-Core MTP to 12D LC, Bend Insensitive OM4
iCONEC-DFGMTUMDD24	G4 Module/2*12-Core MTP to 12D LC, OM5
iCONEC-DFGMTUMDE12	G4 Module/1*12-Core MTP to 6D LC, G.657.A2
iCONEC-DFGMTUMDA12	G4 Module/1*12-Core MTP to 6D LC, Bend Insensitive OM3
iCONEC-DFGMTUMDN12	G4 Module/1*12-Core MTP to 6D LC, Bend Insensitive OM4
iCONEC-DFGMTUMDD12	G4 Module/1*12-Core MTP to 6D LC, OM5
iCONEC-DFGMPUMDE24	G4 Module/2*12-Core MPO to 12D LC, G.657A.2
iCONEC-DFGMPUMDA24	G4 Module/2*12-Core MPO to 12D LC, Bend Insensitive OM3
iCONEC-DFGMPUMDN24	G4 Module/2*12-Core MPO to 12D LC, Bend Insensitive OM4
iCONEC-DFGMPUMDD24	G4 Module/2*12-Core MPO to 12D LC, OM5
iCONEC-DFGMPUMDN24	G4 Module/2*12-Core MPO-12DLC/BI-OM4
iCONEC-DFGMPUMDD24	G4 Module/2*12-CoreMPO-12DLC/BI-OM5
iCONEC-DFGMPUMDE12	G4 Module/1*12-Core MPO-6DLC/G.657.A2
iCONEC-DFGMPUMDA12	G4 Module/1*12-Core MPO-6DLC/BI-OM3
iCONEC-DFGMPUMDN12	G4 Module/1*12-Core MPO-6DLC/BI-OM4
iCONEC-DFGMPUMDD12	G4 Module/1*12-Core MPO-6DLC/BI-OM5
iCONEC-DFGPDUM06	G4 adapter panel/6-port multimode duplex LC, aqua green
iCONEC-DFGPDUS06	G4 adapter panel/6-port single-mode duplex LC, blue
iCONEC-DFGPDUM12	G4 adapter panel/12-port multimode duplex LC, aqua green
iCONEC-DFGPDUS12	G4 adapter panel/12-port single-mode duplex LC, blue
iCONEC-DFGPSUM06	G4 adapter panel/6-port multimode SC, aqua green
iCONEC-DFGPSUS06	G4 adapter panel/6-port single-mode SC, blue
iCONEC-DFGPSUM12	G4 adapter panel/12-port multimode SC, aqua green
iCONEC-DFGPSUS12	G4 adapter panel/12-port single mode SC, blue
iCONEC-DFGPFUS12	G4 adapter panel/12-port single-mode simplex FC
iCONEC-DFGPMT012	G4 adapter panel/12-port MTP adapter, black (Uscon adapter)
iCONEC-DFGPMT008	G4 adapter panel/8-port MTP adapter, black (Uscon adapter)
iCONEC-DFGPMT006	G4 adapter panel/6-port MTP adapter, black (Uscon adapter)
iCONEC-DFGP00	G4 blind plate
iCONEC-TRAY24	24-core general fiber splice trays, each of which can accommodate 12-core to 24-core fused pigtails
iCONEC-TRAY-24CB	24-core ultra-thin fiber splice trays, each of which can accommodate 12-core to 24-core fused pigtails
iCONEC-DFGDFC01	G4 fixed fiber optic patch panel, 1U height, 4 slots
iCONEC-DFGDFB01	G4 cable tray hoisting fixed fiber optic patch panel, 1U height, 4 slots
