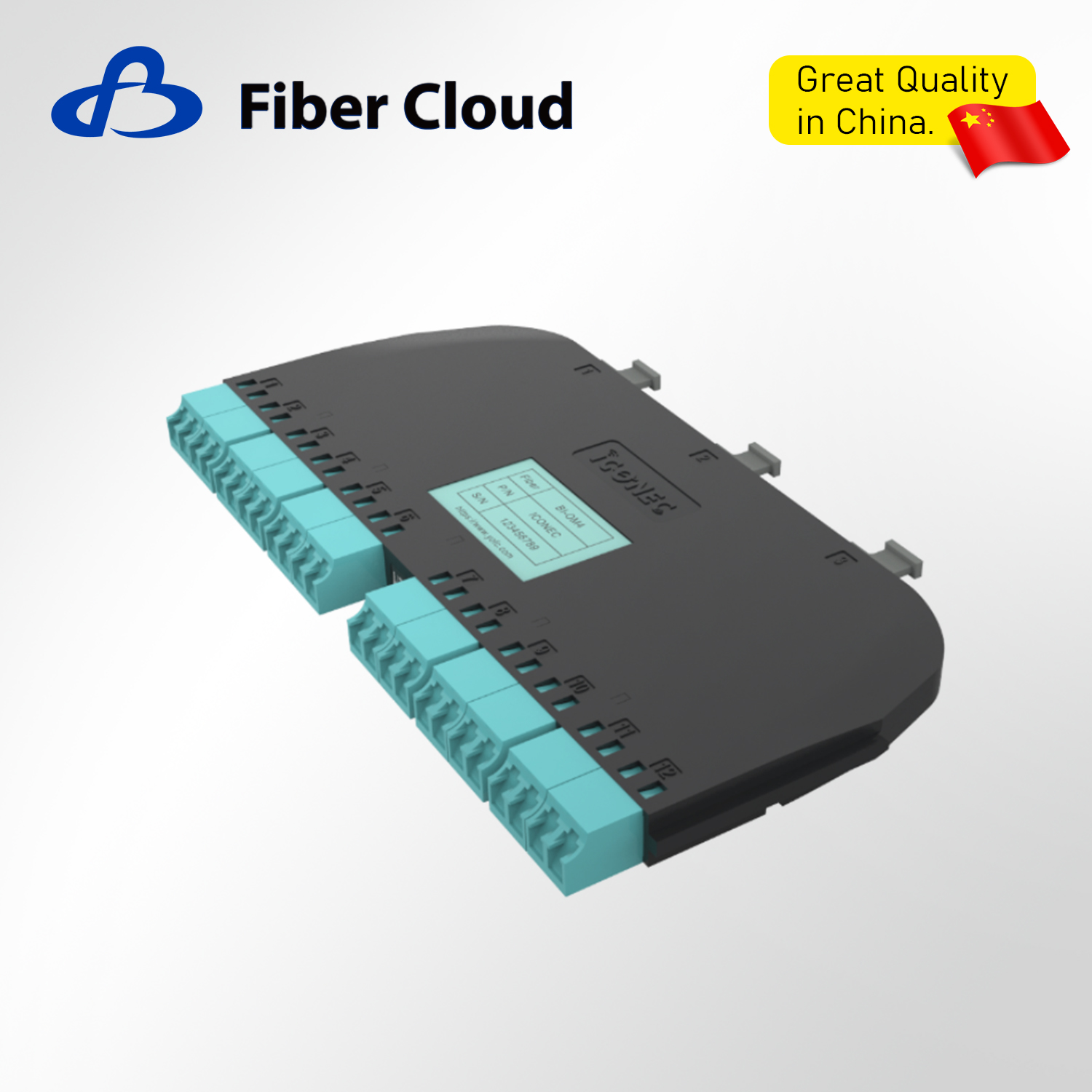

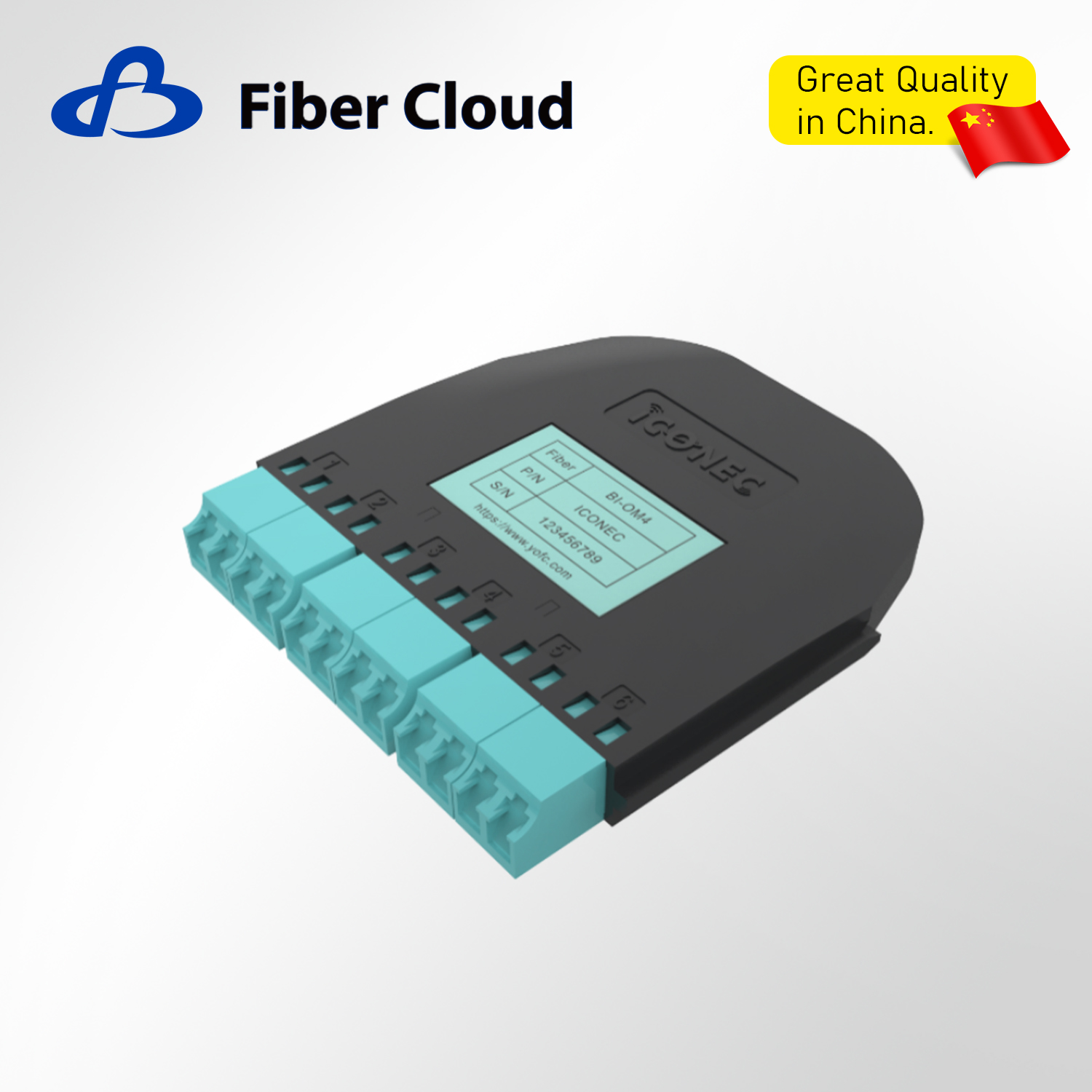

UDF series MTP-LC plug-and-play modules are used for splitting 12-core/24-core MTP adapters at the trunk path terminals into dual-core LC adapters. The dual-core LC adapters are placed at the front end of the module, and one/three MTP adapters are at its back. The built-in branching patch cords connect the front LC adapters with the back MTP adapters.This module can be easily installed in the UDF series rack-mounted fiber optic patch panel. It is used for the modular installation of the UDF series rack-mounted fiber optic patch panel. The patch cords that lead the trunk multi-fiber optical cables from the data center to electronic devices or customers' telecommunications outlets can provide terminal connection to realize structured cabling between trunk cables and the distribution area.
Characteristic
- Patented general modules are used to serve one kind of wiring arrangement,and the point-to-point management of links isconcise and clear
- The branch module has ultra-low insertion loss (IL). With IL≤0.35 (multi-mode);IL≤0.65 (single-mode) , the insertion loss of linksis effectively reduced
- The schemes of fixing distributed adapters consider the operation of plugging and unplugging by one hand
- Use duplex LC adapters with built-in dustproof covers to prevent dust effectively
- The hierarchical arrangement perfectly matches the wire trimming devices in the front of the UDF patch panel to make wiretrimming simple and reliable
- Designed with general modular accessories, the same fiber optic patch panel can support the blend of 10G, 40G and 100Glinks
- Equipped with dustproof doors
