| Physical Characteristics |
| Operating Temp. Range | -20 to +75°C (-4 to 167°F) |
| Max. Operating Voltage (v) | 80 |
| Reference Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| Conductor |
| Conductor Type | Solid Bare Copper |
| Wire Gauge (AWG) | 23 |
| Conductor Nom.O.D. (mm) | 0.565 ± 0.005 |

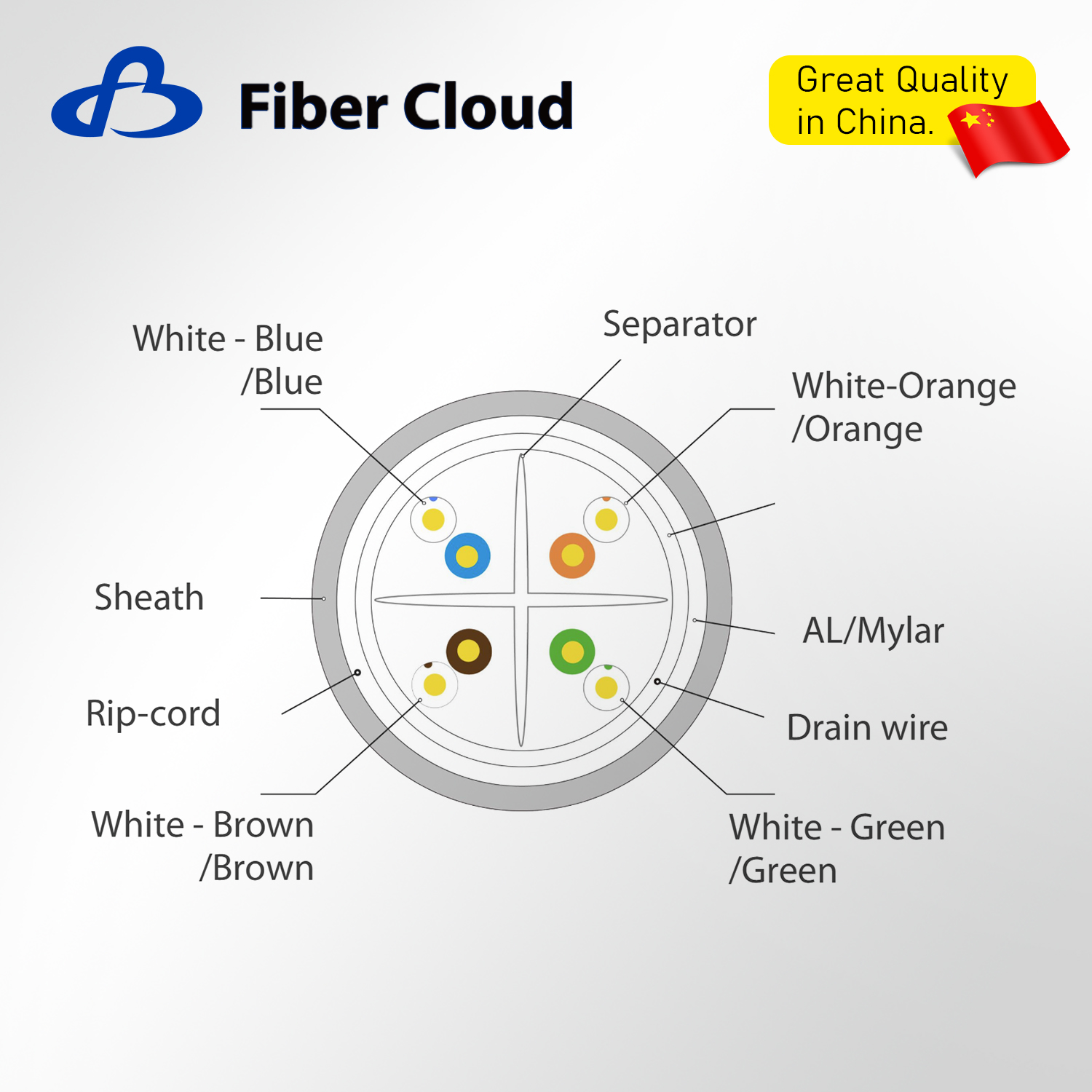

| Conductor Qty. | 4 Twisted Pairs |
| Insulation |
| Insulation Material | HDPE |
| Insulation Diameter (mm) | 1.12 ± 0.05 |
| Core Color | A. White - Blue, Blue
B. White - Orange, Orange
C. White - Green, Green
D. White - Brown, Brown |
| Jacket |
| Material | PVC (Compiles RoHS), CMR |
| External O.D. (mm) | 7.8±0.47.8±0.4 |
| Thickness (mm) | 0.60±0.050.60±0.05 |
| Color | Blue |
| Surface | Clean, Frap, Sattation |
| Rip Cord | Yes |
| Electrical Characteristics |
| 1.0-100.0MHz Impedance (ohms) | 100 ± 15 |
| 1.0-100.0MHz Delay Skew (ns/100m) | ≤45 |
| Capacitance Unbalance (pF/100m) | ≤330 |
| Max. Conductor DC Resistance @20°C (ohms/100m) | 9.38 |
| Resistance Unbalance (%) | ≤5.0 |
| Mechanical Characteristics |
| Before Aging Tensile Strength (Mpa) | ≥13.5 |
| Before Aging Elongation (%) | ≥150 |
| Aging Period (°C×hrs) | 100°C×24h×7d |
| After Aging Tensile Strength (Mpa) | ≥12.5 |
| After Aging Elongation (%) | ≥125 |
| Cold Bend (-20±2°C×4h) | 8 × Cable O.D., No Visible Cracks |
| Packing |
| Packing Type | 1000ft (305m) Pull Box |
