| Physical Characteristics |
| Operating Temp. Range | -40 to 80° C (-40 to 176° F) |
| Max. Operating Voltage (v) | 80 |
| Reference Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |

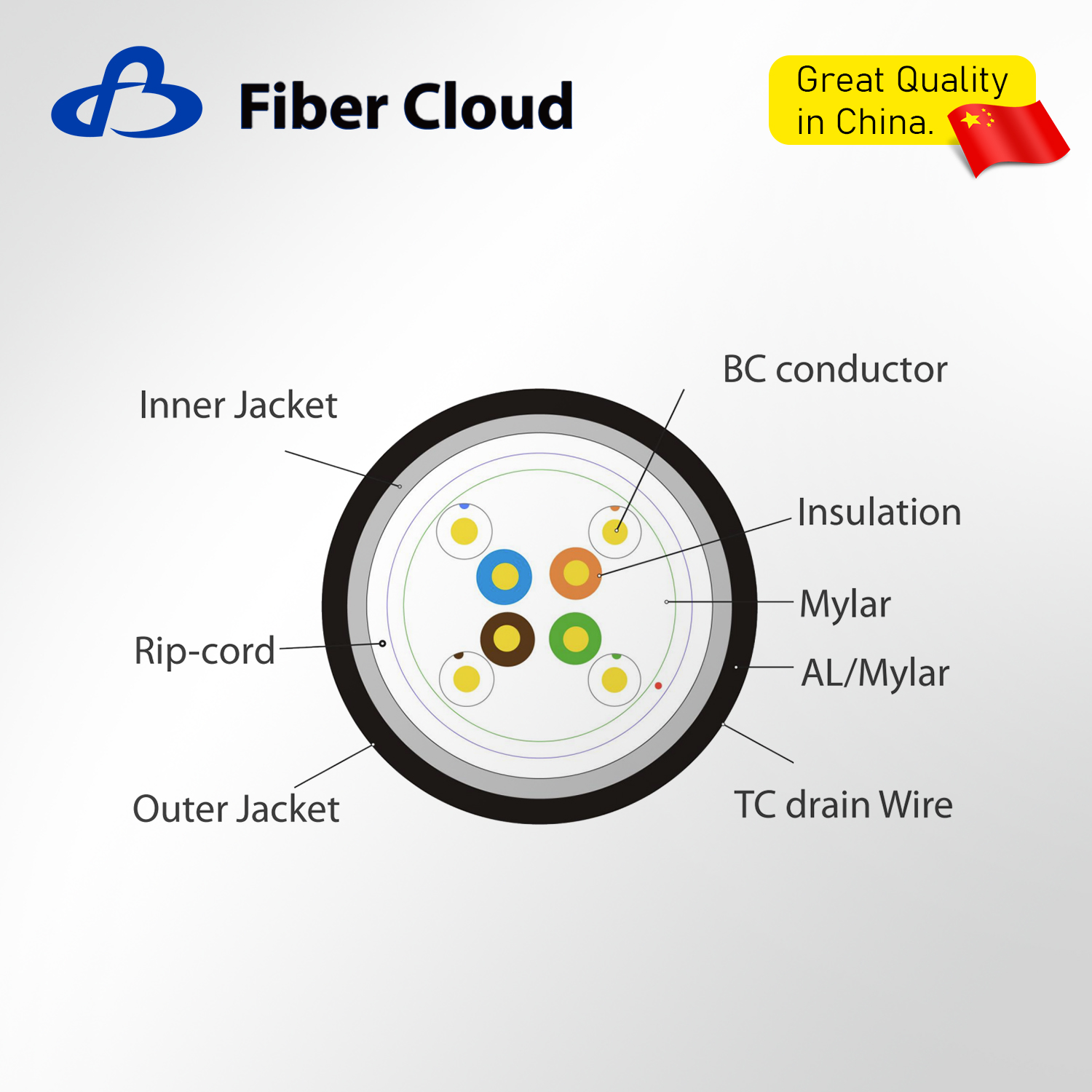

| Conductor |
| Material | Solid Bare Copper |
| Wire Gauge (AWG) | 24 |
| Conductor Nom.O.D. (mm) | 0.500±0.0050.500±0.005 |
| Conductor Qty. | 4 Twisted Pairs |
| Insulation |
| Insulation Material | HDPE |
| Insulation Diameter (mm) | 0.87±0.050.87±0.05 |
| Core Color | A. Blue, White - Blue
B. Orange, White – Orange
C. Green, White – Green
D. Brown, White - Brown |
| Outer Jacket |
| Material | LDPE (Compiles RoHS) |
| External O.D. (mm) | 6.2±0.56.2±0.5 |
| Thickness (mm) | 0.55±0.050.55±0.05 |
| Color | Black |
| Surface | Clean, Frap, Sattation |
| Rip Cord | Yes |
| Inner Jacket |
| Material | PVC |
| Thickness (mm) | 0.50 |
| Electrical Characteristics |
|
| 1.0-100.0MHz Impedance (ohms) | 100 ± 15 |
| 1.0-100.0MHz Delay Skew (ns/100m) | ≤45 |
| Capacitance Unbalance (pF/100m) | ≤160 |
| Max. Conductor DC Resistance @20°C (ohms/100m) | 9.5 |
| Resistance Unbalance (%) | ≤5.0 |
| Mechanical Characteristics |
| Before Aging Tensile Strength (Mpa) | ≥10.0 |
| Before Aging Elongation (%) | ≥350 |
| Aging Period (°C×hrs) | 100°C×24h×7d |
| After Aging Tensile Strength (Mpa) | ≥9.7 |
| After Aging Elongation (%) | ≥300 |
| Cold Bend (-20±2 °C×4h) | 8 × Cable O.D., No Visible Cracks |
| Packing |
| Packing Type | 1000ft (305m) / Carton |
| Carton Dimension (HxWxD) | 215×380×380 MM |
