| Physical Characteristics |
| Operating Temperature Range | -20 to +75°C (-4 to 167°F) |
| Max. Operating Voltage | 300 V |
| Reference Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |

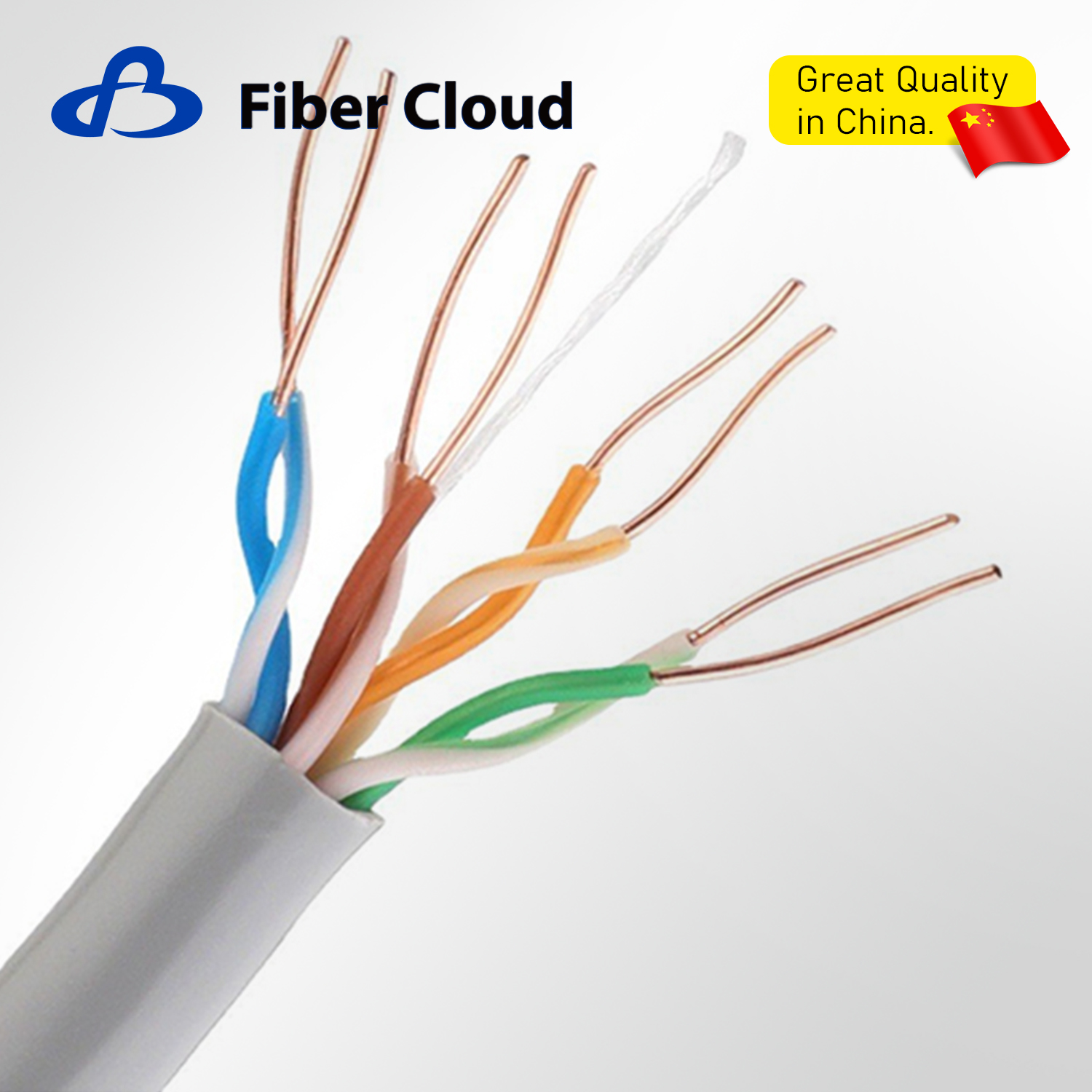

| Conductor |
| Conductor Type | Solid Bare Copper |
| Wire Gauge (AWG) | 24 |
| Conductor Nominal O.D. | 0.500 ± 0.005 mm |
| Conductor Quantity | 4 Twisted Pairs |
| Insulation |
| Insulation Material | FEP |
| Insulation Diameter | 0.85 ± 0.05 mm |

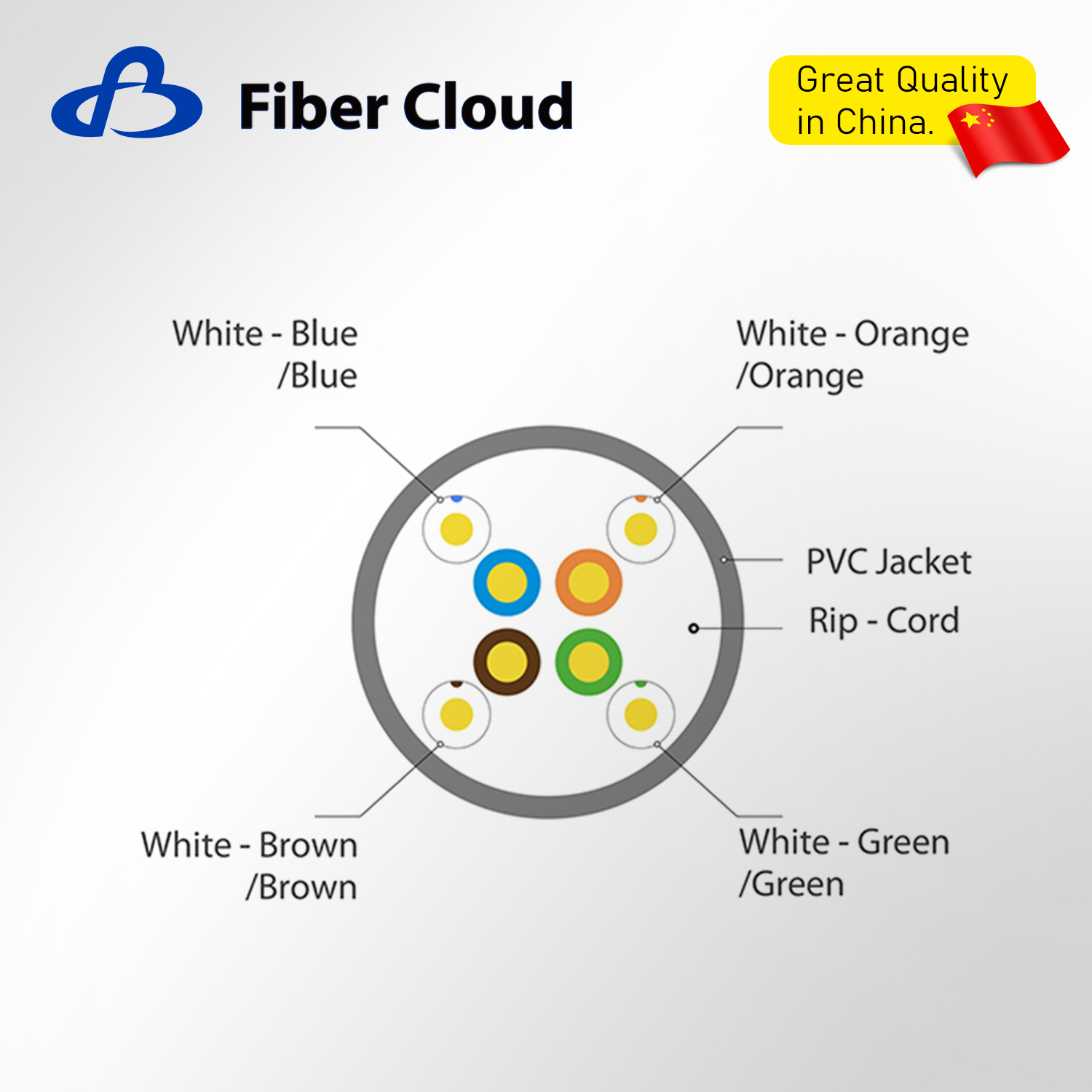

| Core Color |
| Pair A | White-Blue, Blue |
| Pair B | White-Orange, Orange |
| Pair C | White-Green, Green |
| Pair D | White-Brown, Brown |
| Jacket |
| Material | PVC (Compiles RoHS), CMR |
| External O.D. | 4.7 ± 0.4 mm |
| Thickness | 0.43 ± 0.05 mm |
| Color | Blue / Gray / Black |
| Surface | Clean, Frap, Sattation |
| Rip Cord | Yes |
| Electrical Characteristics |
| Impedance (1.0-100.0MHz) | 100 ± 15 Ω |
| Delay Skew (1.0-100.0MHz) | ≤45 ns/100m |
| Capacitance Unbalance | ≤160 pF/100m |
| Max. Conductor DC Resistance @20°C | 9.5 Ω/100m |
| Resistance Unbalance | ≤5.0% |
| Mechanical Characteristics |
| Before Aging Tensile Strength | ≥13.5 MPa |
| Before Aging Elongation | ≥150% |
| Aging Period | 100°C×24h×7d |
| After Aging Tensile Strength | ≥12.5 MPa |
| After Aging Elongation | ≥125% |
| Cold Bend (-20±2°C×4h) | 8 × Cable O.D., No Visible Cracks |
| Packing |
| Packing Type | 1000ft (305m) Pull Box |
| Carton Dimension (H×W×D) | 350×330×265 mm |
