| Physical Characteristics |
| Operating Temperature Range | -20 to +75°C (-4 to 167°F) |
| Max. Operating Voltage | 300 V |
| Reference Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |

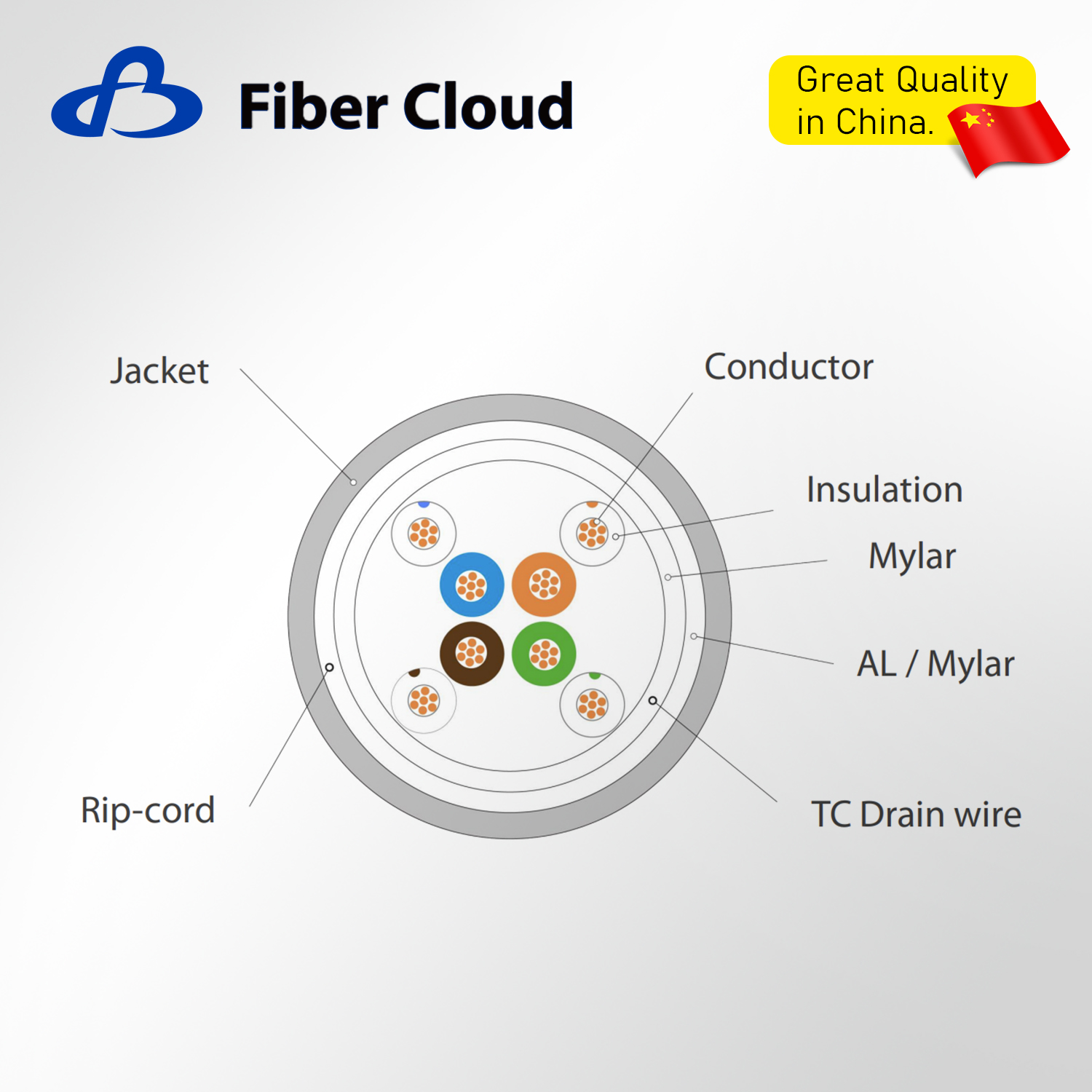

| Conductor |
| Conductor Type | Stranded Bare Copper |
| Wire Gauge (AWG) | 26 |
| Conductor Nominal O.D. | 0.480 ± 0.005 mm |
| Conductor Quantity | 4 Twisted Pairs |
| Insulation |
| Insulation Material | HDPE |
| Insulation Diameter | 0.85 ± 0.05 mm |
| Core Color |
| Pair A | Blue, White - Blue |
| Pair B | Orange, White – Orange |
| Pair C | Green, White – Green |
| Pair D | Brown, White - Brown |
| Jacket |
| Material | PVC (Compiles RoHS), CM |
| External O.D. | 5.3 ± 0.4 mm |
| Thickness | 0.55 ± 0.05 mm |
| Color | Blue / Black |
| Surface | Clean, Frap, Sattation |
| Rip Cord | Yes |
| Electrical Characteristics |
| Impedance (1.0-100.0MHz) | 100 ± 15 Ω |
| Delay Skew (1.0-100.0MHz) | ≤45 ns/100m |
| Capacitance Unbalance | ≤160 pF/100m |
| Max. Conductor DC Resistance @20°C | 14.8 Ω/100m |
| Resistance Unbalance | ≤5.0% |
| Mechanical Characteristics |
| Before Aging Tensile Strength | ≥13.5 MPa |
| Before Aging Elongation | ≥150% |
| Aging Period | 100°C × 24h × 7d |
| After Aging Tensile Strength | ≥12.5 MPa |
| After Aging Elongation | ≥125% |
| Cold Bend (-20±2°C×4h) | 8 × Cable O.D., No Visible Cracks |
| Packing |
| Packing Type | 1000ft (305m) Pull Box |
| Carton Dimension (H×W×D) | 350 × 330 × 265 mm |
