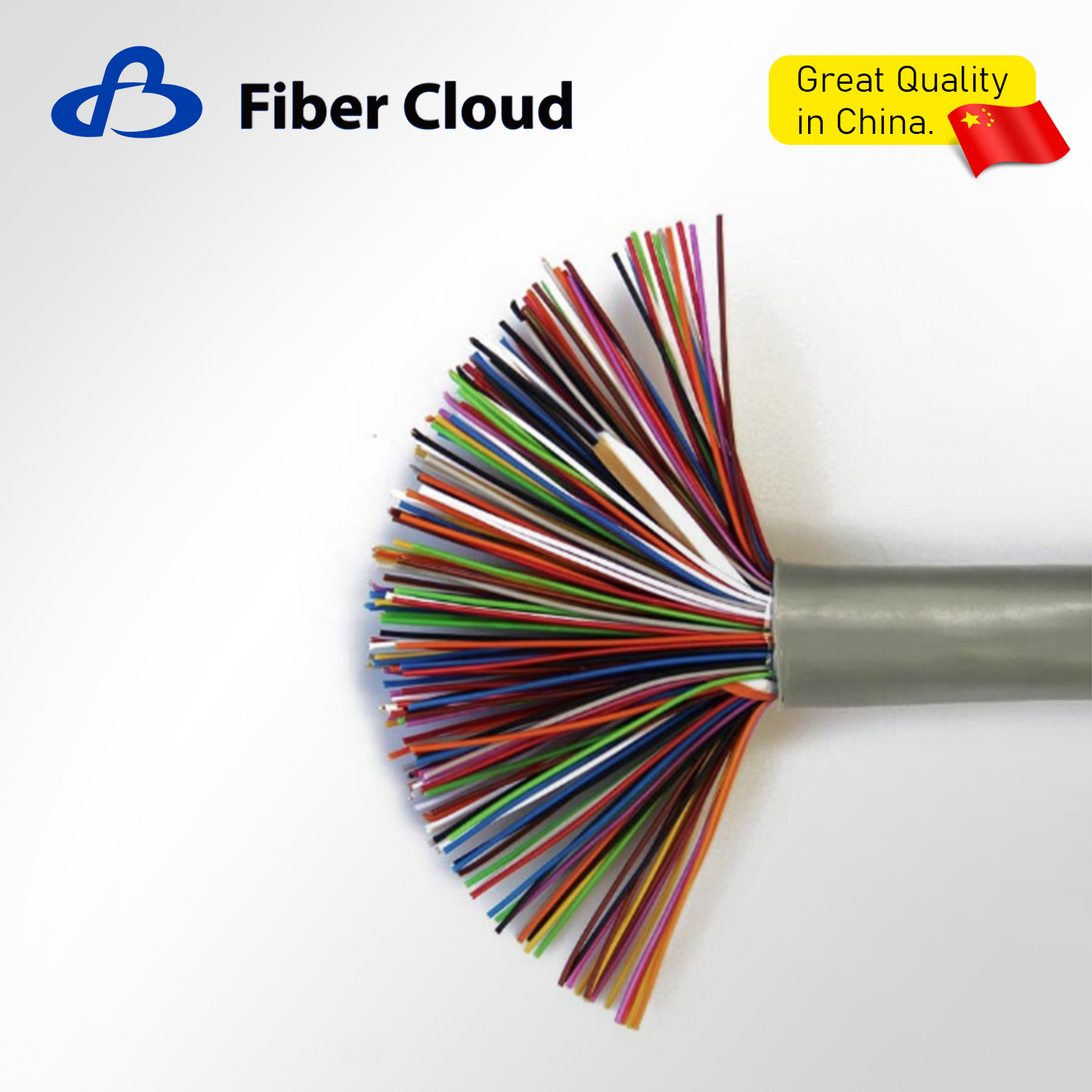

Cat 3 Indoor Multipair Copper Cables

Applied in the vertical main subsystem to connect the main voice distribution frame in buildings and voice distribution frames of all ﬂoors.

Characteristics

Product Description

Product standards

Comply with the relevant standards of ISO/IEC11801&TIA/EIA 568A/B&UL Subject 444&YD/T1019-2001
LSZH Cable: Flame retardant property conforms to: IEC60332-1; Toxicity standard: IEC60754-1; Acid gas concentration standard: IEC60754-2; Smoke concentration standard:IEC61034-2
CMR cables: Comply with UL-1666

Main Technical Parameters

Content	Technical Index
Cable diameter	25 pairs: 8.8±2.0mm 50 pairs: 13.0±2.0mm 100 pairs: 18.0±2.0mm
Maximum DC resistance	≤14.8Ω/100m
Minimum insulation resistance	100MΩ/km
Dielectric strength	500VAC/1min
Operation Temperature	Installation Temperature: 0°C to +70°C Operating temperature: -20°C to +70°C Storage temperature: -20°C to +70°C
Package	305m/box

Product Model

Product Model	Product Description
CCC3UVC6IG100	100 pairs of Cat 3 multipair, UTP, PVC, 26AWG, grey, 305m/box
CCC3UCM6IG100	100 pairs of Cat 3 multipair, UTP, CM, 26AWG, grey, 305m/box
CCC3UH16IG100	100 pairs of Cat 3 multipair, UTP, LSZH-1, 26AWG, grey, 305m/box
CCC3UVC6IG050	50 pairs of Cat 3 multipair, UTP, PVC, 26AWG, grey, 305m/box
CCC3UCM6IG050	50 pairs of Cat 3 multipair, UTP, CM, 26AWG, grey, 305m/box
CCC3UH16IG050	50 pairs of Cat 3 multipair, UTP, LSZH-1, 26AWG, grey, 305m/box
CCC3UVC6IG025	25 pairs of Cat 3 multipair, UTP, PVC, 26AWG, grey, 305m/box
CCC3UCM6IG025	25 pairs of Cat 3 multipair, UTP, CM, 26AWG, grey, 305m/box
CCC3UH16IG025	25 pairs of Cat 3 multipair, UTP, LSZH-1, 26AWG, grey, 305m/box
