Product standards
Comply with the relevant standards of ISO/IEC11801&TIA/EIA 568A/B&UL Subject 444&YD/T1019-2001
LSZH Cable: Flame retardant property conforms to: IEC60332-1; Toxicity standard: IEC60754-1; Acid gas concentration standard: IEC60754-2; Smoke concentration standard:IEC61034-2
CMR cables: Comply with UL-1666
Main Technical Parameters
| Content | Technical Index |
| Cable diameter | 25 pairs ：11.5 1.0mm |
Maximum DC resistance | ≤9.38Ω/100m |
Minimum insulation resistance | 100MΩ/km |
Dielectric strength | 500VAC/1min |
Operation Temperature | Installation Temperature: 0°C to +70°C Operating temperature: -20°C to +70°C Storage temperature: -20°C to +70°C |
Package | 305m/axis |
Product Model
| Product Model | Product Description |

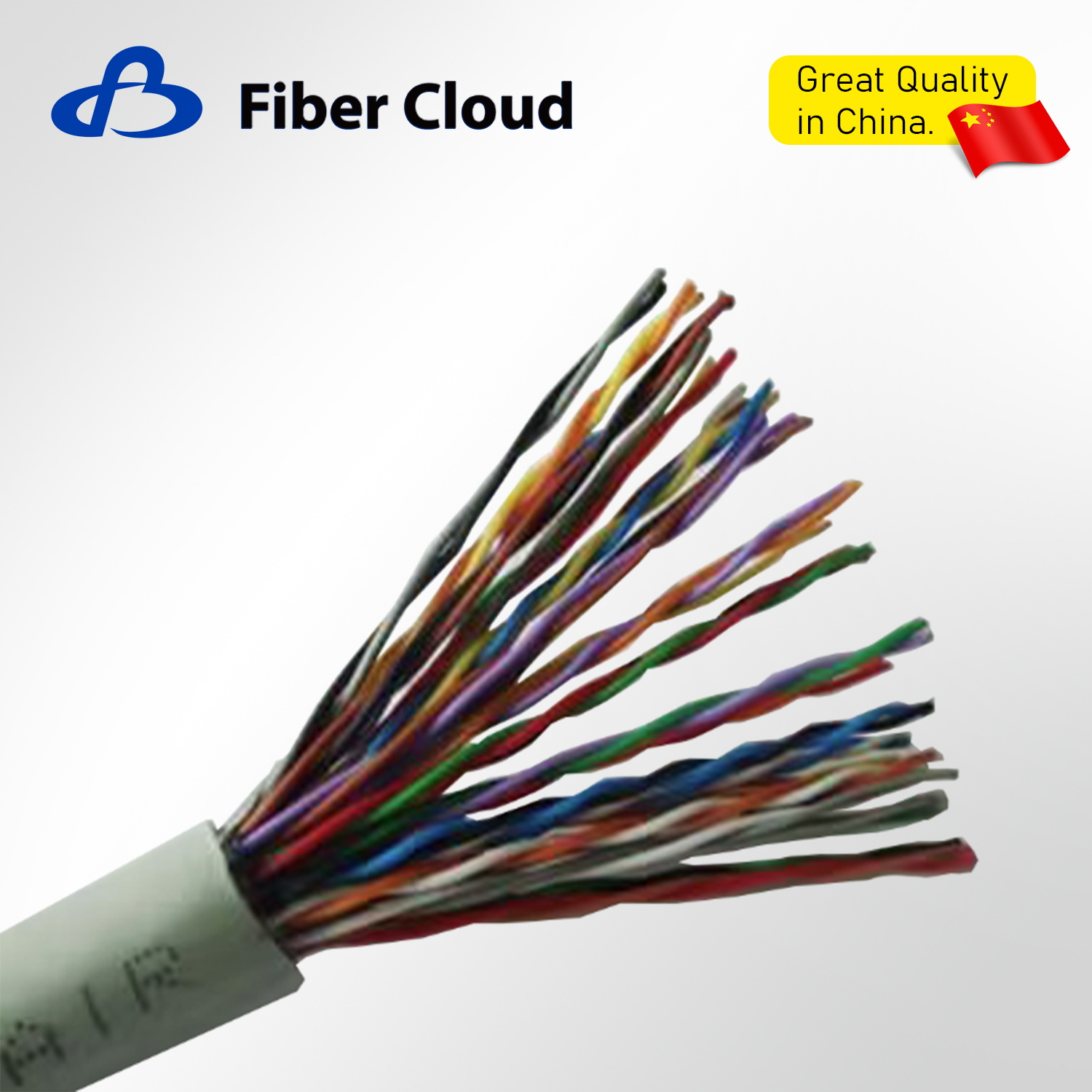

| CC5EUVC6IG025 | 25 pairs of Cat 5e multipair, UTP, PVC, 26AWG, grey, 305m/box |
CC5EUCR6IG025 | 25 pairs of Cat 5e multipair, UTP, CMR, 26AWG, grey, 305m/box |
CC5EUH16IG025 | 25 pairs of Cat 5e multipair, UTP, LSZH-1, 26AWG, grey, 305m/box |
