| Physical Characteristics |
| Operating Temp. Range | -40 to 75° C (-40 to 167° F) |
| Max. Operating Voltage (v) | 80 |
| Reference Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |

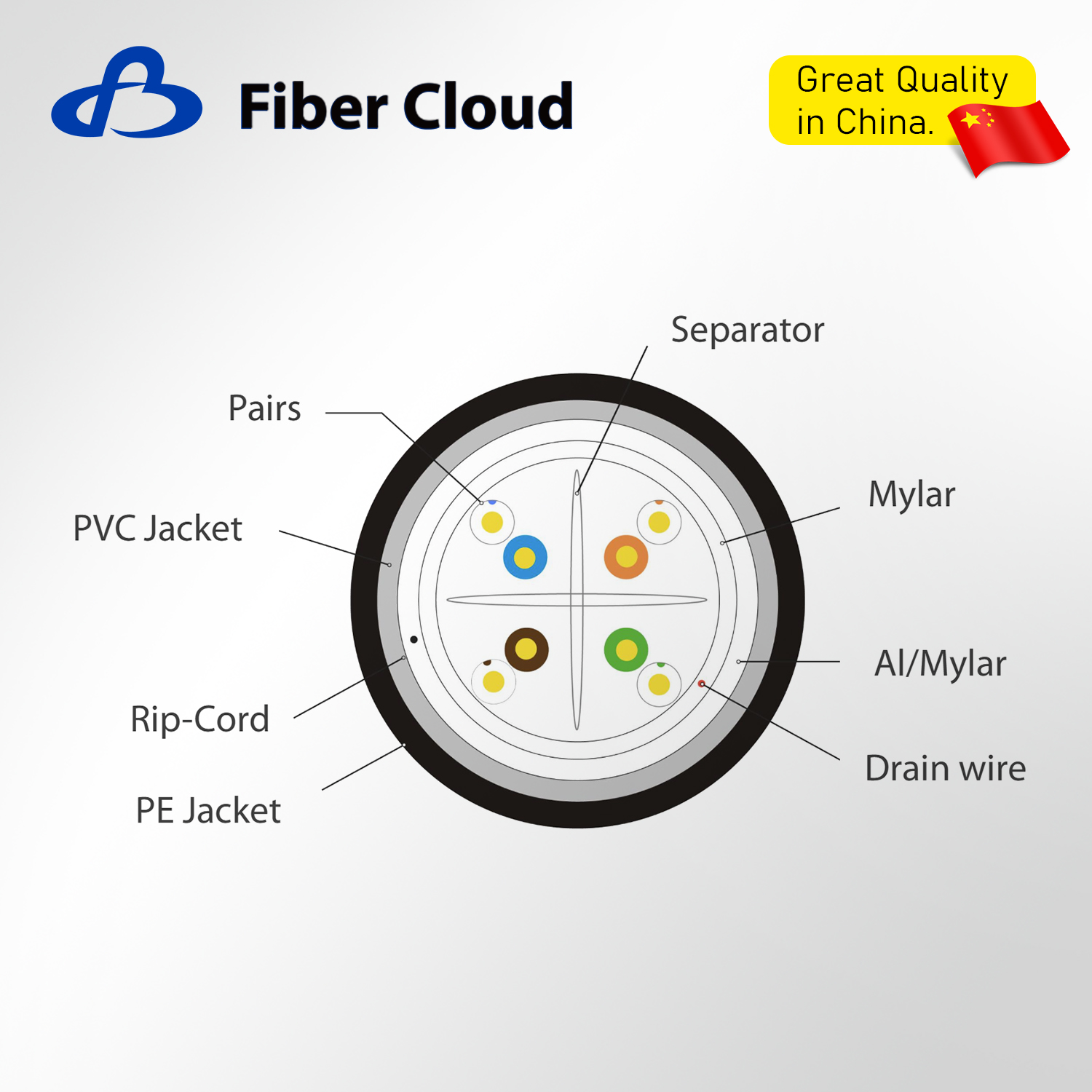

| Conductor |
| Conductor Type | Solid Bare Copper |
| Wire Gauge (AWG) | 23 |
| Conductor Nom.O.D. (mm) | 0.565±0.0050.565±0.005 |

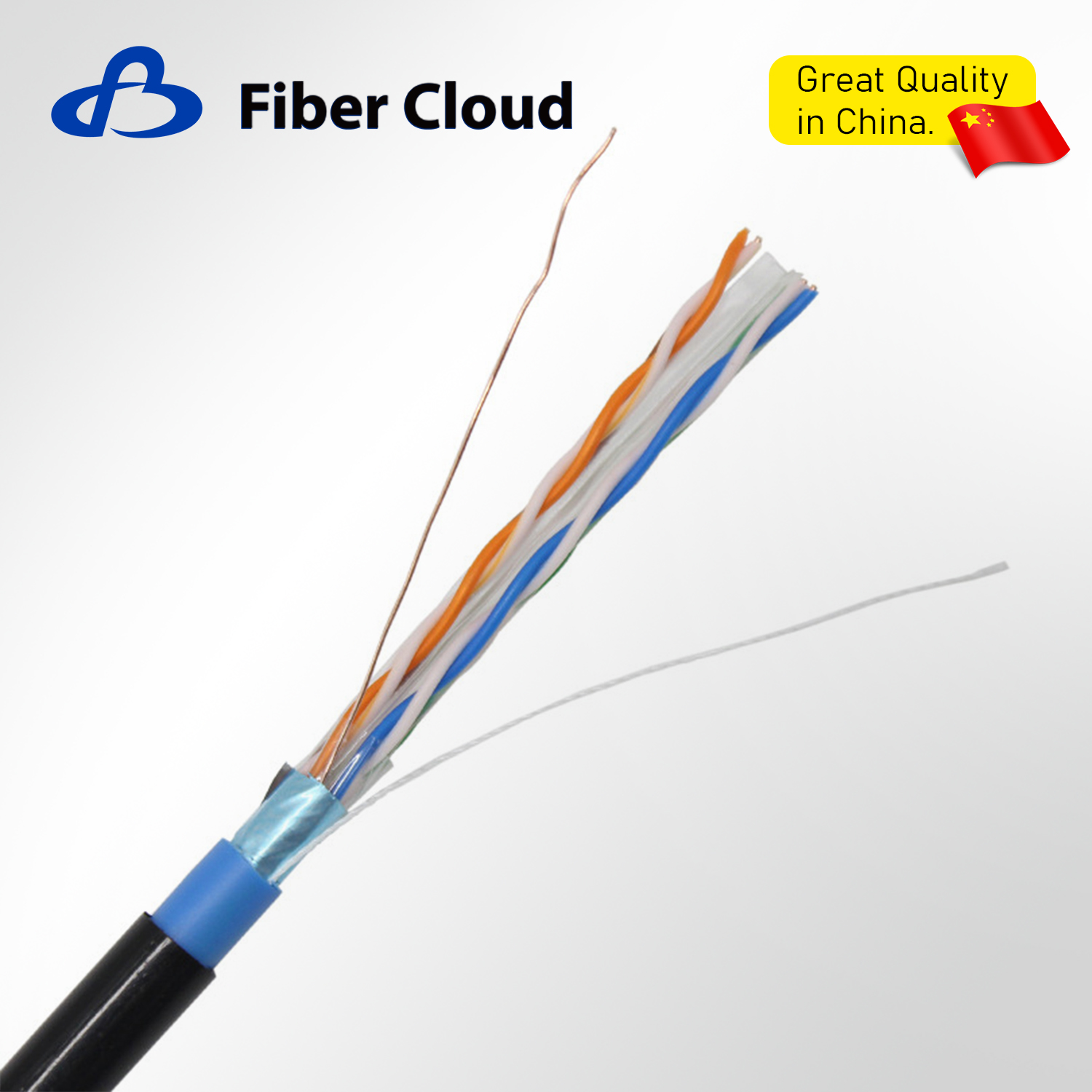

| Conductor Qty. | 4 Twisted Pairs |
| Insulation |
| Insulation Material | HDPE |
| Insulation Diameter (mm) | 1.12±0.051.12±0.05 |

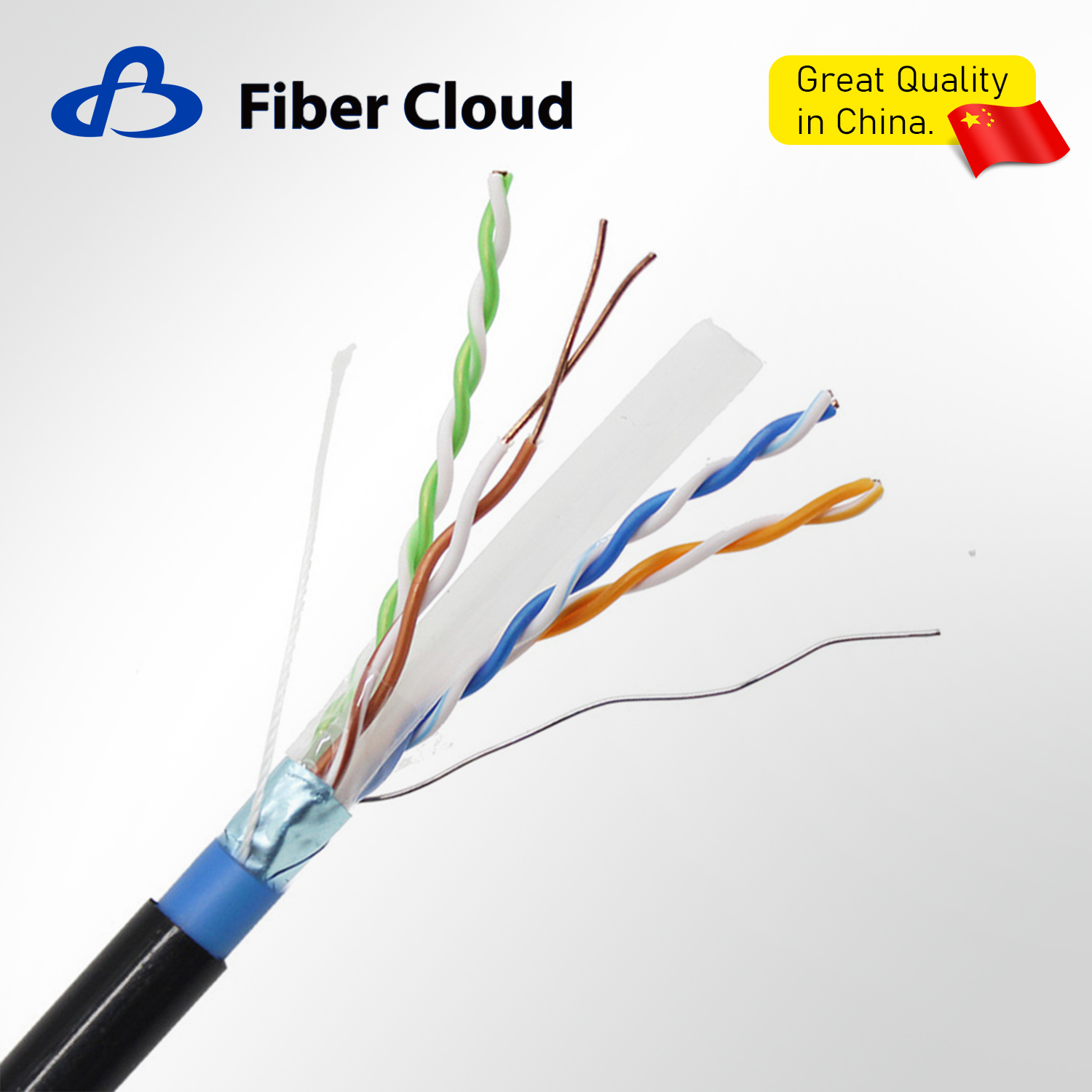

| Core Color | A. White - Blue, Blue
B. White - Orange, Orange
C. White - Green, Green
D. White - Brown, Brown |
| Jacket |
| Material | LDPE (Compiles RoHS) |
| External O.D. (mm) | 8.7±0.58.7±0.5 |
| Thickness (mm) | 0.60±0.050.60±0.05 |
| Color | Black |
| Surface | Clean, Frap, Saturation |
| Rip Cord | Yes |
| Inner Jacket |
| Material | PVC |
| Thickness (mm) | 0.5 |
| Electrical Characteristics |
| 1.0-250.0MHz Impedance (ohms) | 100 ± 15 |
| 1.0-250.0MHz Delay Skew (ns/100m) | ≤45 |
| Capacitance Unbalance (pF/100m) | ≤160 |
| Max. Conductor DC Resistance @20°C (ohms/100m) | 9.38 |
| Resistance Unbalance (%) | ≤5.0 |
| Mechanical Characteristics |
| Before Aging Tensile Strength (Mpa) | ≥10.0 |
| Before Aging Elongation (%) | ≥350 |
| Aging Period (°C×hrs) | 100°C×24h×10d |
| After Aging Elongation (%) | ≥300 |
| Cold Bend (-20±2℃×4h) | 8 × Cable O.D., No Visible Cracks |
| Packing |
| Packing Type | 1000ft (305m) / Carton |
| Carton Dimension (HxWxD) | 340×390×390 MM |
