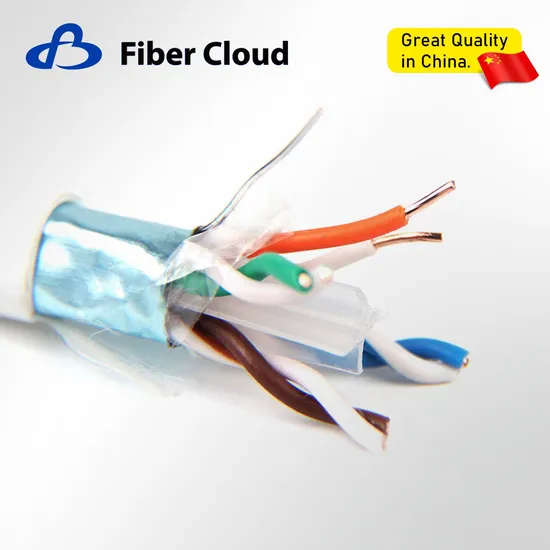

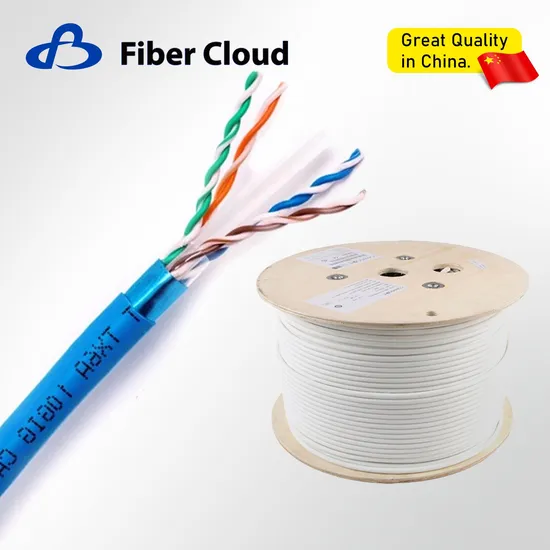

Indoor Communication Cat7 CAT6 Cat5 UTP Unshielded Stranded Network Copper LAN Cable

Share to:

Indoor Communication Cat7 CAT6 Cat5 UTP Unshielded Stranded Network Copper LAN Cable

Cat6 is a "4 twisted pairs" network cable used for 1000Base-T Ethernet applications up to 550MHz,and can also provide at speed of 10G rate with up to 37 meters transmission distance. It is backward compatible with the Cat5/5e standard. Cat6 cabling is suitable for office and building wiring, such as schools and shopping malls. This cable is perfect for all your advanced networking installations.

Characteristics

CM Rated for Use in Office Environments Such As Desktop Cable Connection
Up to 550MHz with 1G/10G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
Tested with a DSX-8000 Versiv Cable Analyzer
Fully Compliant with ANSI/TIA-568.2-D Fire and Safety Standards
Support Solution Testing and Validation, And Can Provide Demo Testing
Marked Every 1m on Cable Makes Measuring Easy
Multiple Colors&Lengths to Help Organize and Simplify Complicated Cable Runs

Availability:



Inquire Add to Basket

Model:
Cat7 CAT6 CAT6A Cat5E

Product Description

Type	Cable Picture	Speed	Conductor Diameter (mm)	AWG
Cat5e UTP Solid Indoor		10/100/1000Base-T	Solid Bare Copper: 0.500 ± 0.005MM	24AWG
Cat5e UTP Stranded Indoor		10/100/1000Base-T	Stranded Pure Bare Copper: 7*0.2MM	24AWG
Cat5e UTP Solid Outdoor		10/100/1000Base-T	Solid Bare Copper: 0.500 ± 0.005MM	24AWG
Cat5e FTP Solid Indoor		10/100/1000Base-T	Solid Bare Copper: 0.500 ± 0.005MM	24AWG
Cat5e FTP Stranded Indoor		10/100/1000Base-T	Stranded Pure Bare Copper: 7*0.16MM	26AWG
Cat5e FTP Solid Outdoor		10/100/1000Base-T	Solid Bare Copper: 0.500 ± 0.005MM	24AWG
Cat5e SFTP Solid Indoor		1GBase-T	Solid Bare Copper: 0.565 ± 0.005	24AWG
Cat5e SFTP Solid Outdoor		1GBase-T	Solid Bare Copper: 0.565 ± 0.005	24AWG
Cat6 UTP Solid Indoor		10/100/1000Base-T	Solid Bare Copper: 0.565 ± 0.005	23AWG
Cat6 UTP Stranded Indoor		10/100/1000Base-T	Stranded Pure Bare Copper: 7*0.2MM	24AWG
Cat6 UTP Solid Outdoor		10/100/1000Base-T	Solid Bare Copper: 0.565 ± 0.005	23AWG
Cat6 FTP Solid Indoor		10/100/1000Base-T	Solid Bare Copper: 0.565 ± 0.005	23AWG
Cat6 FTP Solid Outdoor		10/100/1000Base-T	Solid Bare Copper: 0.565 ± 0.005	23AWG
Cat6 SFTP Solid Indoor		1GBase-T	Solid Bare Copper: 0.565 ± 0.005	23AWG
Cat6A UTP Solid Indoor		1G/10GBase-T	Solid Bare Copper: 0.565 ± 0.005	23AWG
Cat6A FTP Solid Indoor		1G/10GBase-T	Solid Bare Copper: 0.565 ± 0.005	23AWG
Cat7 SFTP Solid Indoor		1G/10GBase-T	Solid Bare Copper: 0.565 ± 0.005	23AWG

Product Parameters

Cable Type	Category 6	Shielding Type	UTP
Cable Jacket	PVC CM	Cable Length	305m
Reference Bandwidth	550MHz	Data Rate Support	10/100/1000Base-T
Wire Gauge	23AWG	Cable Color	Blue/Black/Grey/Yellow/White/Red/Green/Orange
Conductor Type	Stranded Pure Bare Copper	Standard	ISO/IEC 11801, ANSI/TIA-568.2-D
Number of Conductors	4 Pairs	Putup Type	Reel
Conductor Diameter (mm)	0.5mm	Cable Outer Diameter (mm)	5.8± 0.3
Maximum Installation Tension (N)	100	Bend Radius (mm)	Static for 10 times the cable diameter, dynamic for 20 times the cable diameter.
Operating Temperature	-20 to 75°C (-4 to 167°F)	Installation Temperature	Installation Temperature: -20ºC to +60ºC Operation Temperature: -40ºC to +70ºC Cold bending: -20ºCx4h no crack

Technical Characteristics

Content	Technical Index
Maximum resistance imbalance	2%
Insulation resistance	>5000 MΩ·km
Characteristic impedance	4–100 MHz: 100 ± 5 Ω 101–250 MHz: 100 ± 20 Ω 251–500 MHz: 100 ± 25 Ω
Delay skew	≤45 ns/100 m
Operating Temperature	Installation: –20 ℃ to +60 ℃ Operation: –40 ℃ to +70 ℃ Cold bending: –20 ℃ × 4 h no crack
Permissible bending radius during installation	8 × outer diameter of twisted pair
Bending radius	Static: 10 × cable diameter Dynamic: 20 × cable diameter
Maximum tension	400 N
Maximum conductor resistance	75 Ω/km (23 AWG) 95 Ω/km (24 AWG)
Insulating material	HDPE
Minimum insulation resistance	100 MΩ/km
Dielectric strength	500 Vac / h min
Package	305 m/box
