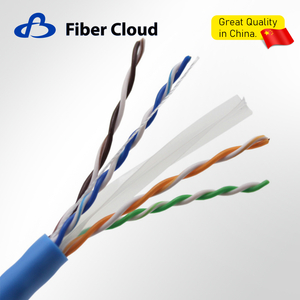

| Physical Characteristic |
| Operating Temperature Range | -20°C to +75°C (-4°F to 167°F) |
| Max. Operating Voltage | 80 V |
| Reference Standard | ISO/IEC 11801 |
| Packing | 1000 ft (305 m) / Reel |
| Conductor |
|
| Conductor Type | Solid Bare Copper |
| Wire Gauge (AWG) | 23 |
| Conductor Nominal O.D. | 0.560 ± 0.005 mm |
| Conductor Quantity | 4 Twisted Pairs |
| Max. Conductor DC Resistance @20°C | ≤ 9.38 Ω/100m |
| Resistance Unbalance | ≤ 2.0 % |
| Insulation |
| Insulation Material | Skin-foam-skin PE |

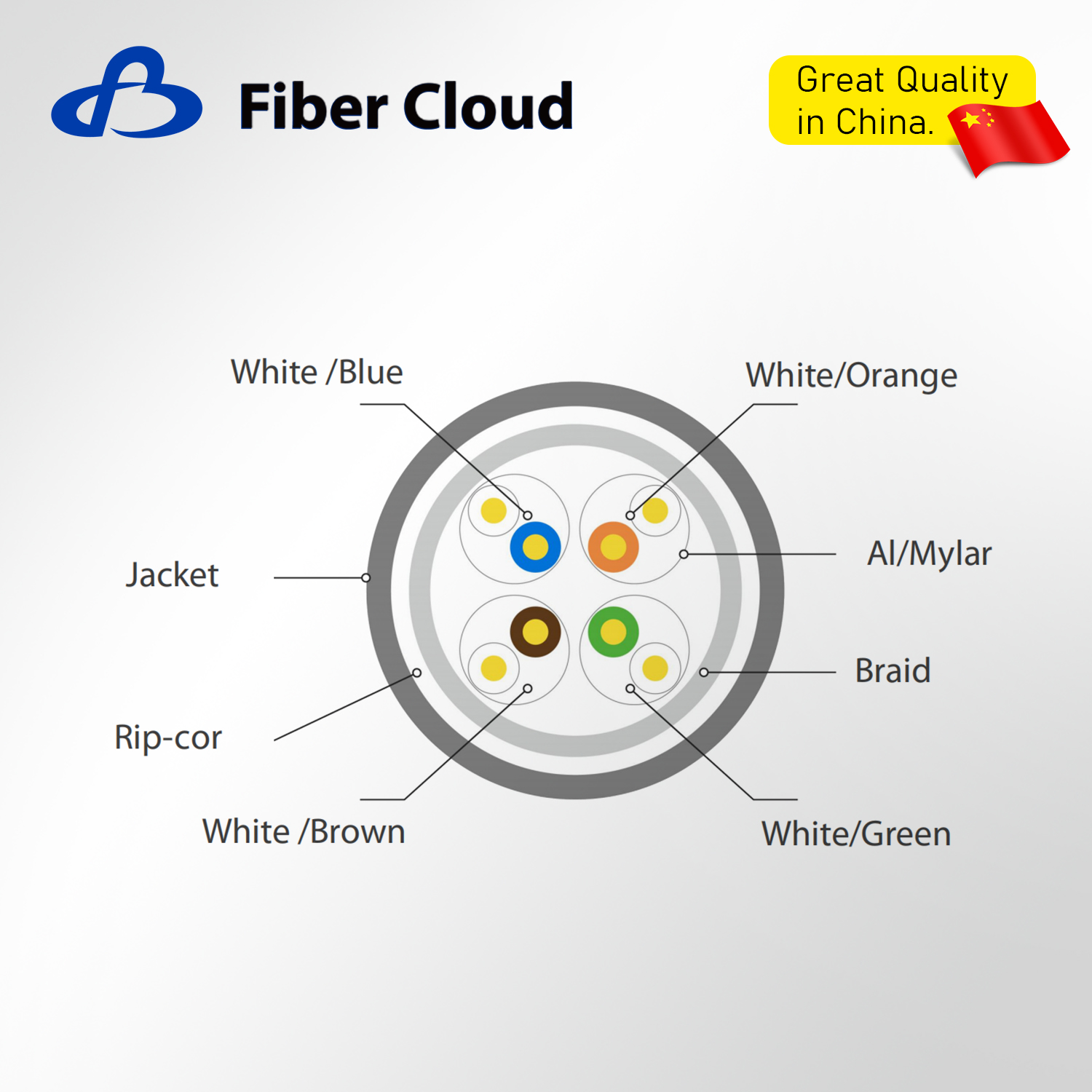

| Insulation Diameter | 1.330 ± 0.05 mm (White/Blue, White/Orange, White/Green, White/Brown) |
| Capacitance Unbalance | ≤ 330 pF/100m |
| Jacket |
| Jacket Material | PVC (Compiles RoHS), CMR |
| External O.D. | 7.6 ± 0.5 mm |
| Jacket Thickness | 0.55 ± 0.05 mm |
| Color | Blue, Black, White, Gray |
| Surface | Clean, Frap, Satiation |
| Rip Cord | Yes |
| Electrical Characteristics |
| Characteristic Impedance (1.0-100.0 MHz) | 100 ± 15 Ω |
| Characteristic Impedance (1.0-250.0 MHz) | 100 ± 18 Ω |
| Characteristic Impedance (250.0-600.0 MHz) | 100 ± 25 Ω |
| Delay Skew (1.0-600.0 MHz) | ≤ 25 ns/100m |
| Mechanical Characteristics |
| Tensile Strength (Before Aging) | ≥ 13.5 MPa |
| Elongation (Before Aging) | ≥ 150 % |
| Aging Condition | 100°C × 24h × 7d |
| Tensile Strength (After Aging) | ≥ 12.5 MPa |
| Elongation (After Aging) | ≥ 125 % |
| Cold Bend Test (-20±2°C × 4h) | 8 × Cable O.D., No Visible Cracks |
| Packing |
| Packing Type | 1000ft (305m)/Reel |
