| Physical Characteristics |
| Operating Temperature Range | -40 to 80°C (-40 to 176°F) |
| Max. Operating Voltage | 80 V |
| Reference Standard | ISO11801-1-1, ANSI/TIA-568.2-D |

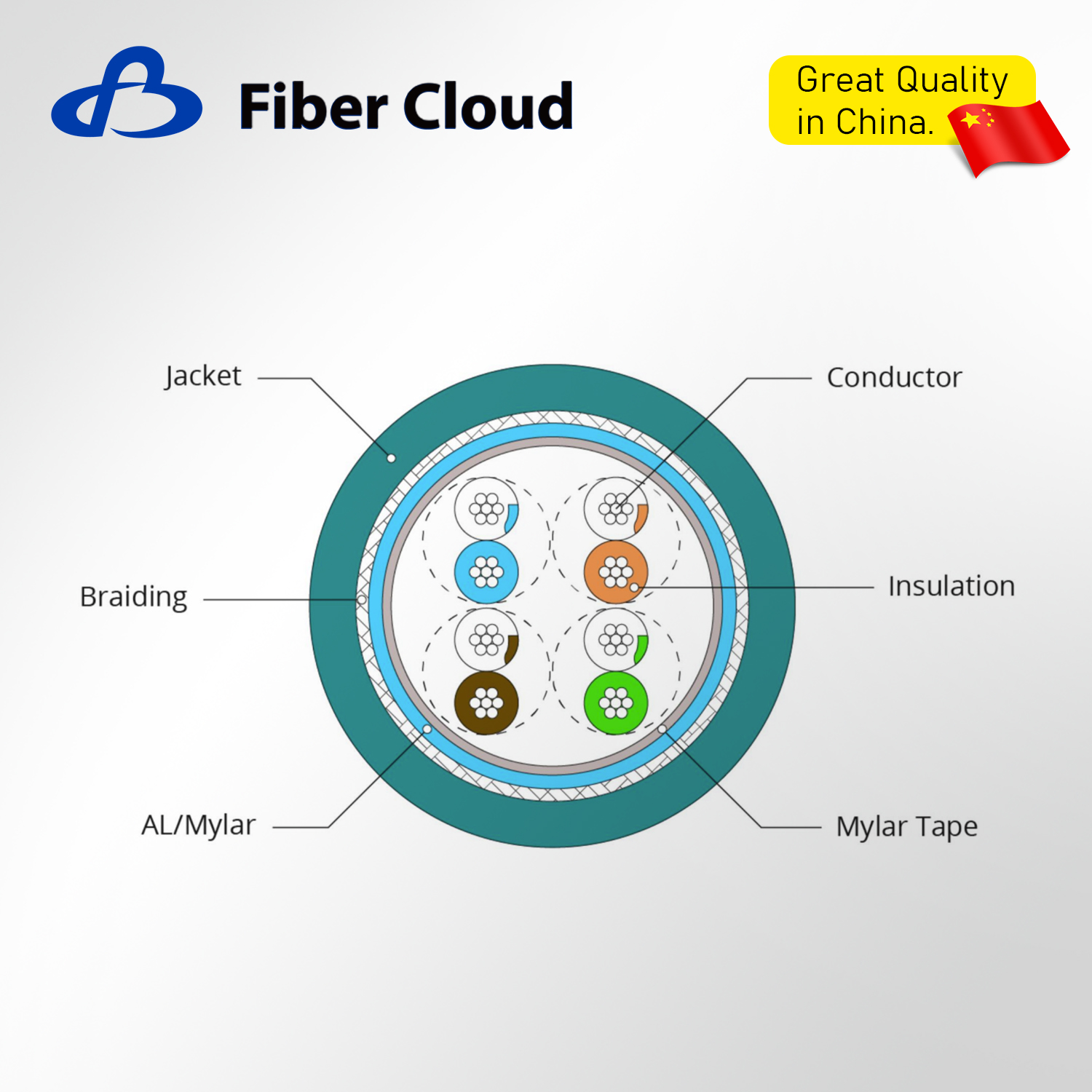

| Conductor |
| Material | Stranded Pure Bare Copper |
| Wire Gauge (AWG) | 26 |
| Conductor Nominal O.D. | 7 × 0.160 mm |
| Conductor Quantity | 4 Twisted Pairs |
| Insulation |
| Insulation Material | HDPE |
| Insulation Diameter | 0.92 ± 0.05 mm |
| Core Color |
| Pair A | White-Blue, Blue |
| Pair B | White-Orange, Orange |
| Pair C | White-Green, Green |
| Pair D | White-Brown, Brown |
| Jacket |
| Material | PUR |
| External O.D. | 6.0 ± 0.3 mm |
| Thickness | approx 0.6 mm |
| Color | Blue (Similar to RAL5021) |
| Surface | Mate |
| Electrical Characteristics |
| Delay Skew | ≤25 ns/100m |
| Capacitance Unbalance | ≤160 pF/100m |
| Max. Conductor DC Resistance @20°C | ≤148 Ω/100m |
| Resistance Unbalance | ≤5% (within the pair), ≤5% (between pairs) |
| Mechanical Characteristics |
| Before Aging Tensile Strength | ≥10.3 MPa |
| Before Aging Elongation | ≥100% |
| Aging Period | 113°C × 24h × 7d |
| After Aging Tensile Strength | ≥70% Unaged |
| After Aging Elongation | ≥45% Unaged |
| Other Characteristics |
| Flame Resistance | IEC 60332-1-2 |
| Oil Resistance | IRM 902, 100℃×96h (UL 758) |
| Packing Type |
| Standard Reel | 328ft (100m)/Reel |
| Wooden Plate | 1640ft (500m)/Wooden plate |
