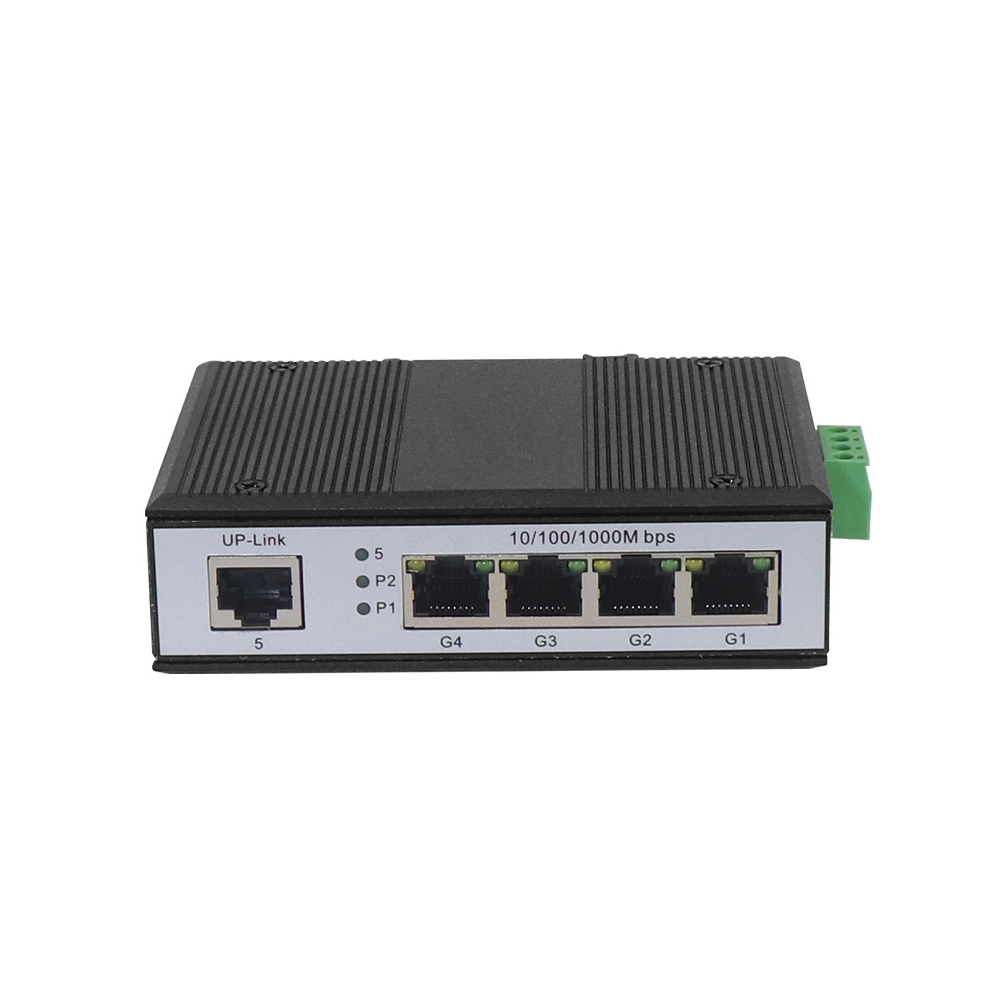

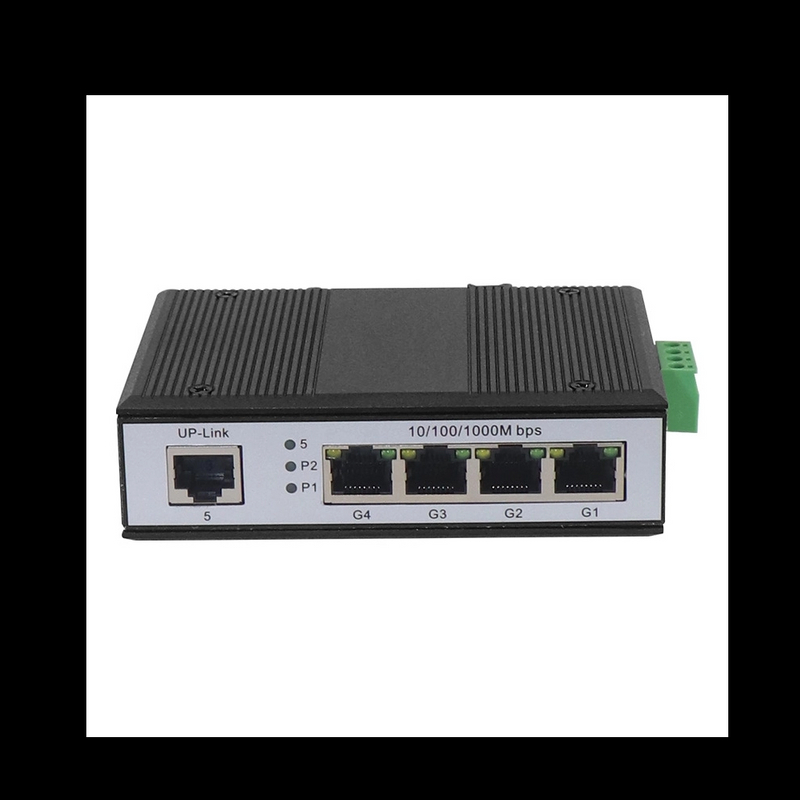

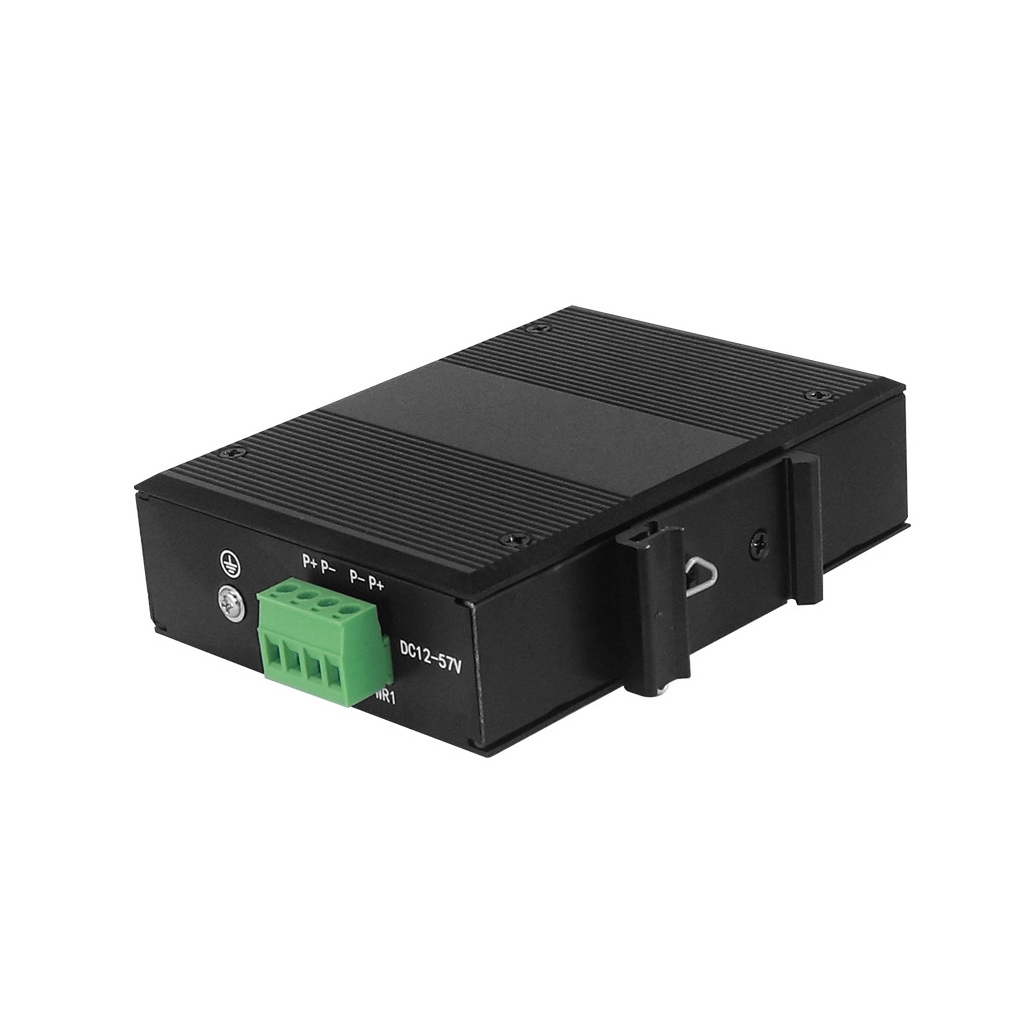

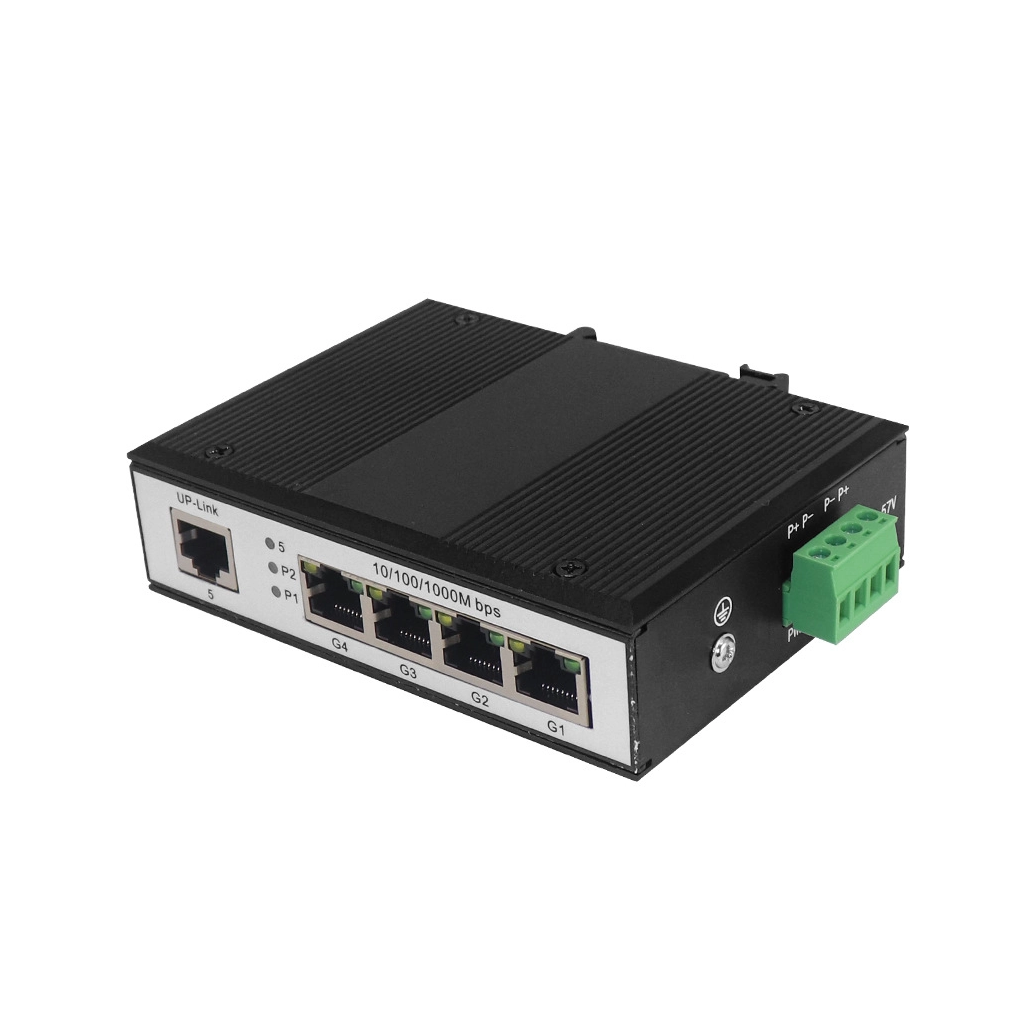

5-port Industrial Gigabit and Fast Ethernet network switch

Share to:

5-port Industrial Gigabit and Fast Ethernet network switch

An 5-port Gigabit and Fast Ethernet Switch is a networking device that connects multiple wired devices on a Local Area Network (LAN).It provides a mix of Gigabit (1000Mbps) and Fast Ethernet (100Mbps) ports, allowing high-speed connections for critical devices while supporting older equipment.It uses auto-negotiation to automatically select the best possible speed for each connected device.The switch efficiently manages data traffic, directing packets only to their intended destination port to optimize network performance.This switch is ideal for expanding connectivity in small offices (SOHO), home offices, and smart homes. It is perfect for connecting computers, printers, Network-Attached Storage (NAS), IP cameras, and gaming consoles into a single, efficient network.

Availability:



Inquire Add to Basket

Model:
NST-GY-GZ511

Product Description

Product Application

Fiber-to-the-home

Office network construction

Community/campus network construction

Radio and television transmission

Security surveillance

Product Specifications

Parameter	Specification
Product Model	NST-GY-GZ511
Network Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at
MTBF	>100,000 hours
Product Dimensions	130 mm × 95 mm × 35 mm
Power Supply	Input Voltage: DC 12~48V PoE: DC 48~57V Single Port Max. Power: 30W (Auto-detection AF/AT) Default Pinout: 1/2+; 3/6- Connection: 6-position 5.08mm Industrial Terminal Block
Environmental Specifications	Operating Temperature: -40 ~ +85 ℃ Storage Temperature: -50 ~ +100 ℃ Operating/Storage Humidity: 5% ~ 95% (non-condensing)
Transmission Distance	100m over twisted pair (using CAT5/CAT5e cable)
Mechanical Characteristics	Enclosure: Aluminum, IP40 Protection Cooling: Fanless (Natural Convection) Mounting: DIN Rail Mounting Weight: 425g/unit (with packaging, power supply sold separately)
