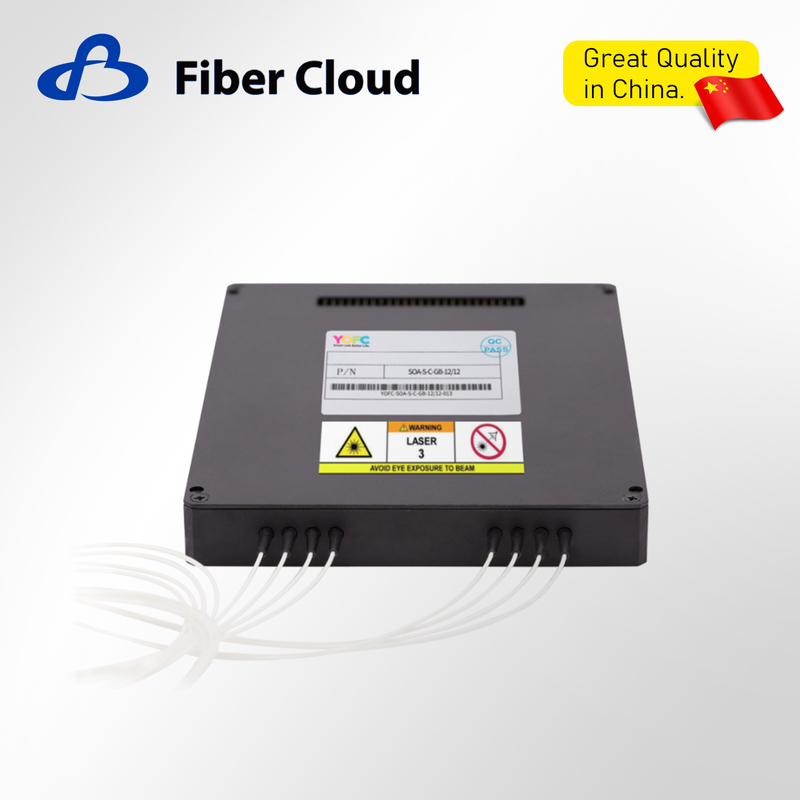

Manufacturers Spectrum Optical Fiber Amplifier

Optical amplifier (SOA) is a specially designed amplifier for O-band, which iswidely used in 10G/40G/100G transmission system. The maximum output power can reach 10dBm and the product can work in ACC/APC/AGC mode.
Characteristic
  • Wavelength bandwidth 1270nm~1320nm
  • The maximum output power can reach 10dBm
  • Support ACC/AGC/APC mode of operation
  • Compliant with GR1312 standard
  • Customizable
Availability:
Inquire Add to Basket

Product Description
Product type SOA-S-0-130*100*15-XX/XX-1-1/1*®
Parameters

Minimum

Typical value

Maximum
Wavelength (nm)

1270

-

1320

Input power (dBm)

-20.0

-

3.5

Saturation power (dBm )

-

7

10

Gain (dB)

14

16

20

Noise figure (dB)

-

7.5

-

Polarization dependent gain (dB)

-

-

2

Supply voltage (V)

4.75

5.00

5.25

Dimension (mm)

130(L)×100(W)×15(H)

*®SOA-S-0-130*100*15-XX/XX-1-1/1, where XX/XX represent output power and gain respectively.

  • Environmental indicators

Items

Minimum

Maximum
Operating temperature range (℃)

-5

55

Storage temperature range (℃)

-40

85

Relative humidity (%RH)

-

85

Environmental/Reliability testing

Compliant with Telcordia GR-1312


Applications

  • 100G communication system

  • Optical fibre sensing
