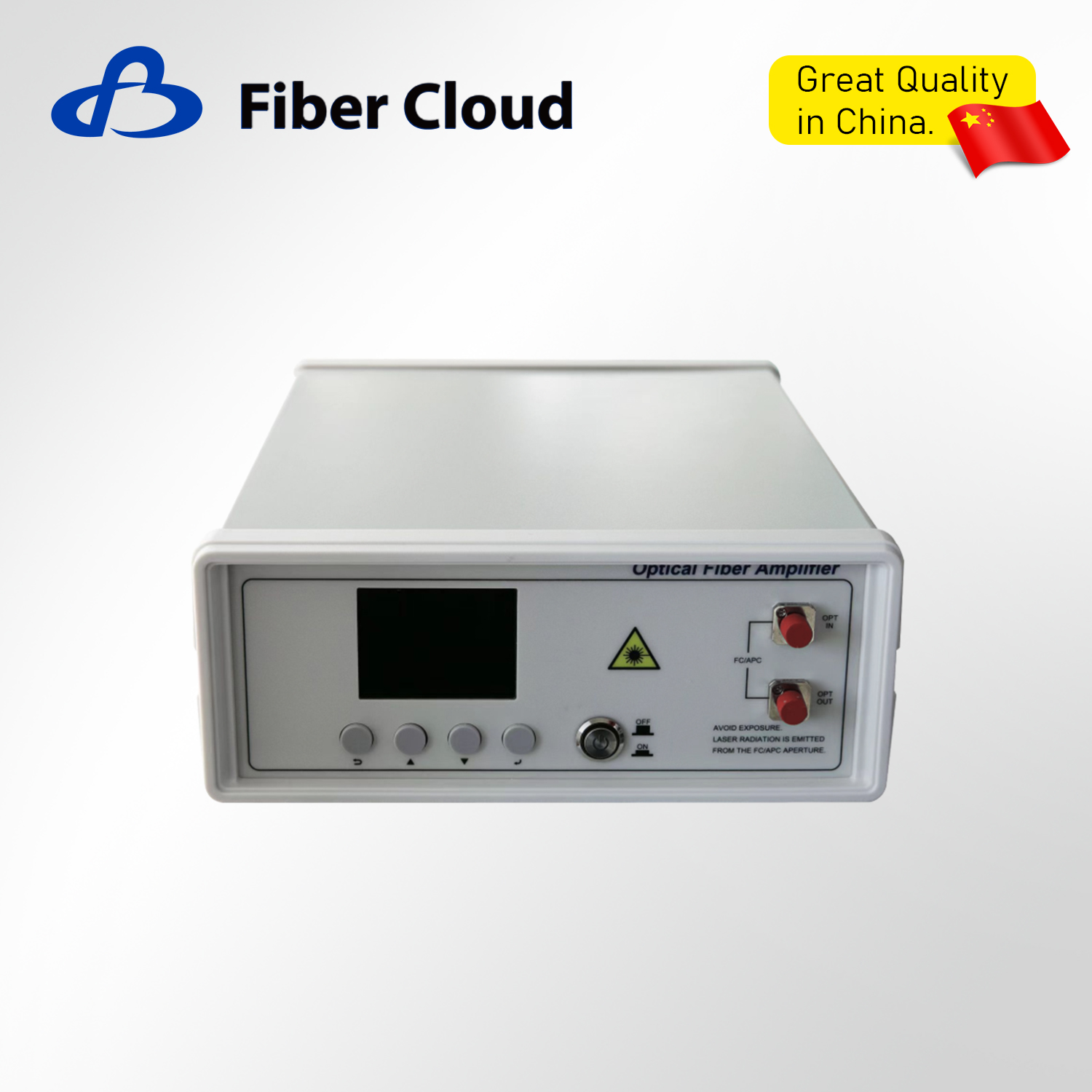

Benchtop Polarization-maintaining PM EDFA Amplifier

Benchtop Polarization-maintaining EDFA is specially designed for fibre optic sensing, communication system, laboratory testing, etc.. Low noise 980 pump laser and polarization-maintaining passive components are adopted to ensure relatively high extinction ratio. it operates in ACC or APC mode. Based on fine temperature control technology inside and satble components, it provides excellent temperature characteristics even under harsh working environment.

Characteristic

The output power can reach 33dBm
ACC/APC operation mode
Low noise figure
High stability and reliability
High extinction ratio, >20dB
Compliance with Telcordia GR-1312-CORE
Customizable

Availability:



Inquire Add to Basket

Product Description

Product type	EYA-S-C-TS-33/XX-P
Parameters	Minimum	Typical value	Maximum
Wavelength(nm)	1535	1550	1565
Control mode	ACC (default) /APC
Input power(dBm)	-10	0	10
Output power(dBm)	-	-	33
Extinction ratio(dB)	20	-	-
Noise figure(dB)	-	-	5
Supply voltage(V)	174	220	260
Communication interface	RS232
Optical interface type	FC/APC or Customizable
Dimension(mm)	(W×L×H) 260×320×120

Environmental Specifications

Parameters	Min	Max
Operating temperature (℃)	0	40
Storage temperature (℃)	-40	75
Relative humidity (%RH)	5	95
Environmental/Reliability testing	Compliant with Telcordia GR-1312
