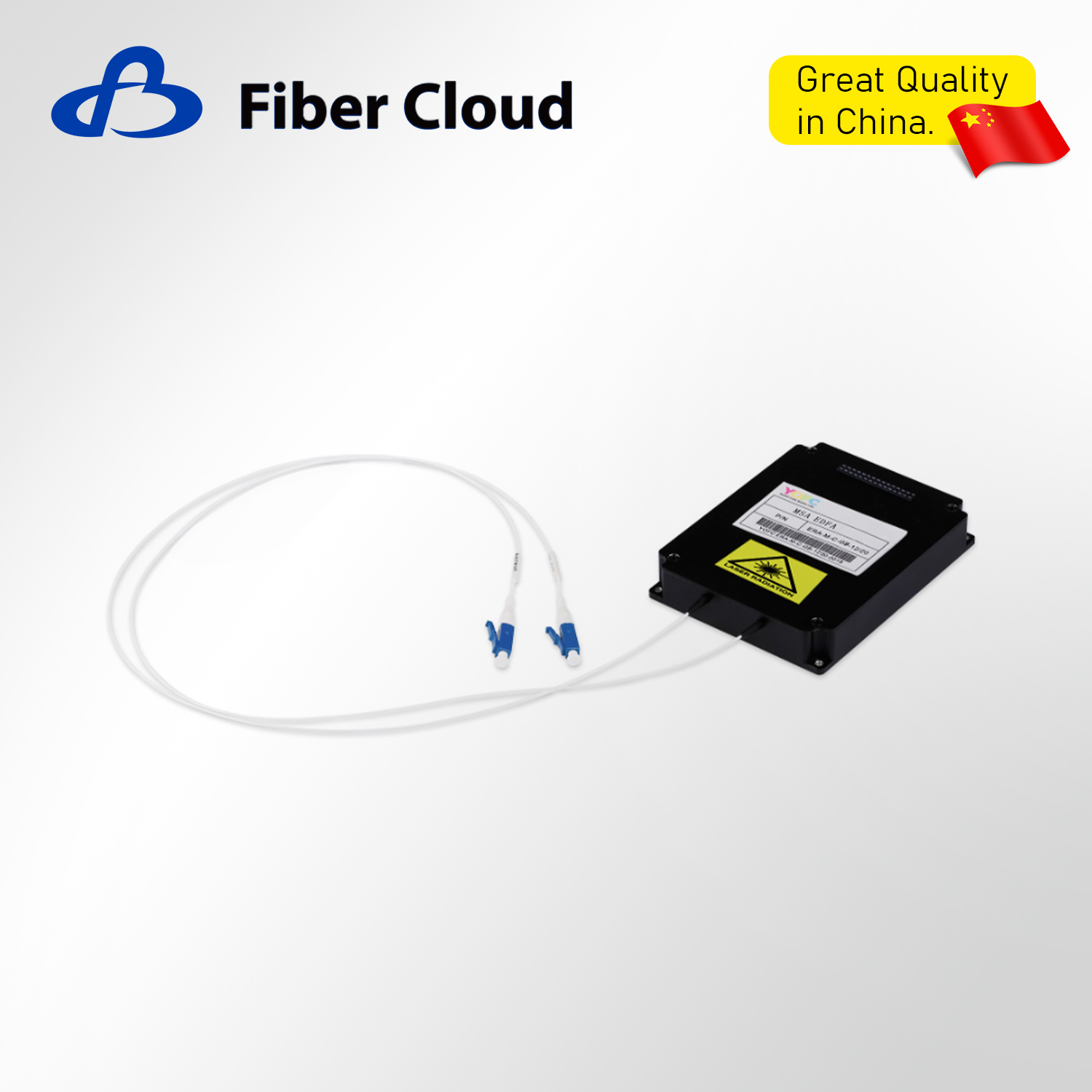

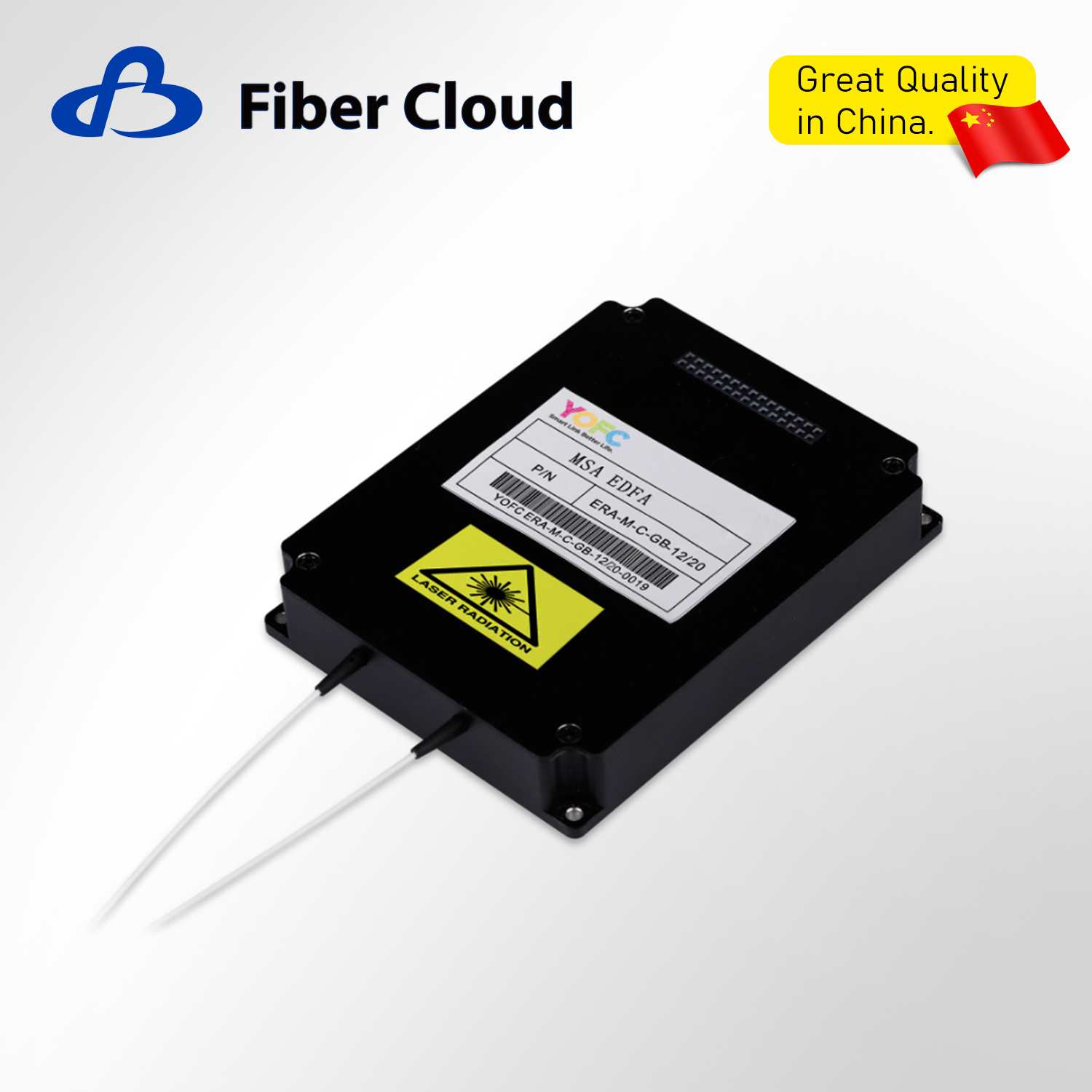

MSA EDFA manufacturers spectrum optical fiber amplifier

Maintain the complete waveform when amplifying signal, and support AGC, APC or ACC operation mode. It adopts high-reliability temperature controlling technique to ensure that the product has good thermal performance under a wide temperature range.
Characteristic
  • Complete waveform maintained
  • ACC/APC/AGC operation mode
  • Low noise figure and power consumption
  • High stability and reliability
  • Customizable
Availability:
Inquire Add to Basket

Product Description

Parameters

Minimum

Typical

Maximum
Wavelength (nm)

1528.77

-

1565.05

Input power (dBm)

-30

-

5

Output power (dBm)

0

-

20

Gain (dB)

0

-

30

Gain flatness (dB)

-

1

1.5

Noise figure (dB)

-

5.5 (@typical value)

6

Return loss (dB)

-

≤-45

-

Operating temperature (℃)

0

-

75

Storage temperature (℃)

-40

-

85

Supply voltage (V)

11.4

12

12.6

Power consumption (W)

-

-

30

Communication interface

RS232/485

Electrical connector

TEM-115-02-03.0-FG-D-L1 (Customizable)

Optical interface type

LC/SC/FC

Pigtail length (cm)

100±2

Dimension (mm)

90(L)x70(W)x15(H)


Applications

  • DWDM

  • Hydrophone system

  • Universities, research institutes

Product Description
Inquire

Related Products

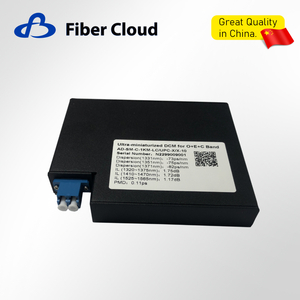

Miniaturized DCM for O+E+C Band Dispersion Compensating Module
Miniaturized DCM for O+E+C Band Dispersion Compensating Module

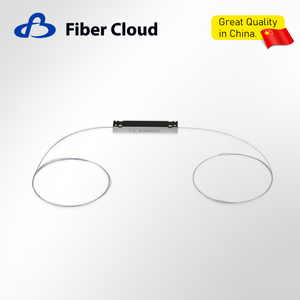

Optical Fibre Combiner (Optical Amplifier Module)
Optical Fibre Combiner (Optical Amplifier Module)

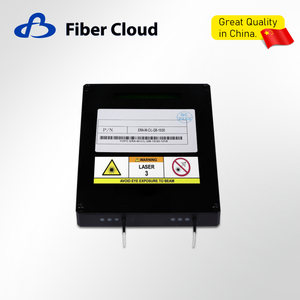

C+L Band Signal EDFA Amplifier Module
C+L Band Signal EDFA Amplifier Module

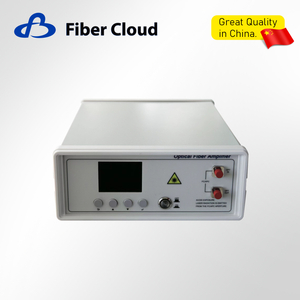

Benchtop Polarization-maintaining PM EDFA Amplifier
Benchtop Polarization-maintaining PM EDFA Amplifier

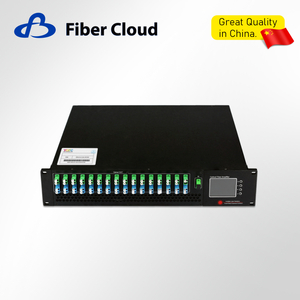

High Power EYDFA System (YOFC-50EYA Series 1U High Power EYDFA)
High Power EYDFA System (YOFC-50EYA Series 3U High Power EYDFA)
High Power EYDFA System (YOFC-50EYA Series 1U High Power EYDFA)
High Power EYDFA System (YOFC-50EYA Series 2U High Power EYDFA)
High Power EYDFA System (YOFC-50EYA Series 1U High Power EYDFA)
High Power EYDFA System (YOFC-50EYA Series 1U High Power EYDFA)

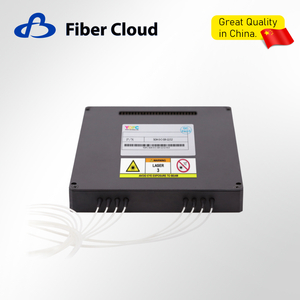

Manufacturers Spectrum Optical Fiber Amplifier
Manufacturers Spectrum Optical Fiber Amplifier
High Power EYDFA Optical Fiber Amplifier Structure Used in CATV System And FTTH
High Power EYDFA Optical Fiber Amplifier Structure Used in CATV System And FTTH

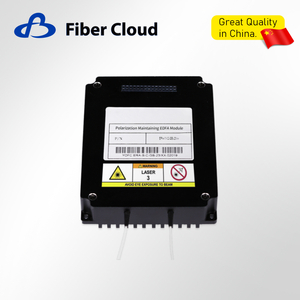

Manufacturers Polarization Maintaining EDFA Optical Fiber Amplifier
Manufacturers Polarization Maintaining EDFA Optical Fiber Amplifier

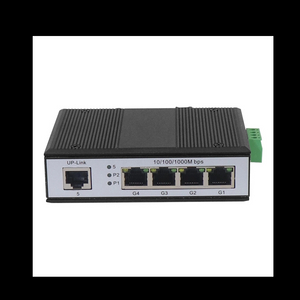

5-port Industrial Gigabit and Fast Ethernet network switch
5-port Industrial Gigabit and Fast Ethernet network switch

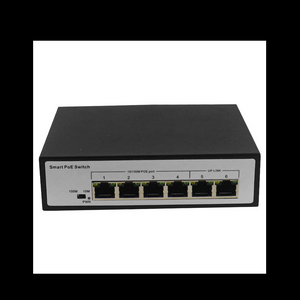

4+2 port 1000Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch
4+2 port 1000Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch

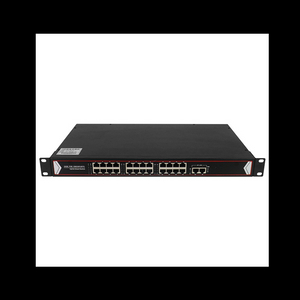

24+2 port 1000Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch
24+2 port 1000Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch

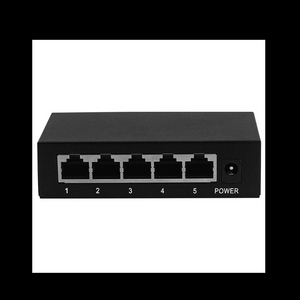

5 port 100Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch
5 port 100Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch

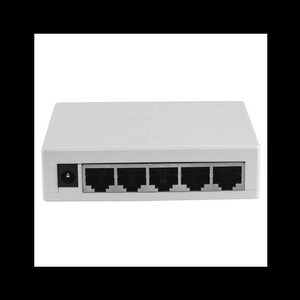

5-port 10/100Mbps Gigabit and Fast Desktop Ethernet network switch
5-port 10/100Mbps Gigabit and Fast Desktop Ethernet network switch
16+2 port 1000Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch
16+2 port 1000Mbps Gigabit and Fast Desktop Ethernet network Smart PoE Switch

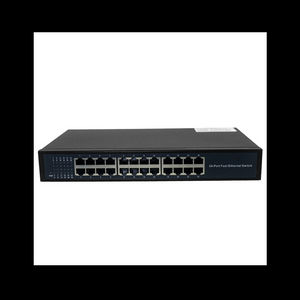

24-port 100/1000Mbps Gigabit and Fast Desktop Ethernet network switch
24-port 100/1000Mbps Gigabit and Fast Desktop Ethernet network switch

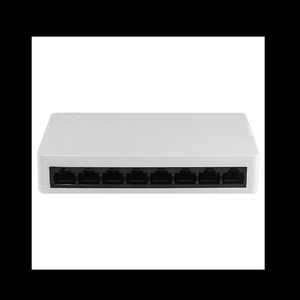

8-port 10/100Mbps Gigabit and Fast Desktop Ethernet network switch
8-port 10/100Mbps Gigabit and Fast Desktop Ethernet network switch

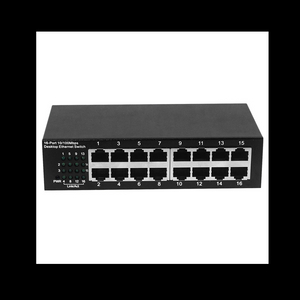

16-port 10/100Mbps Gigabit and Fast Desktop Ethernet network switch
16-port 10/100Mbps Gigabit and Fast Desktop Ethernet network switch

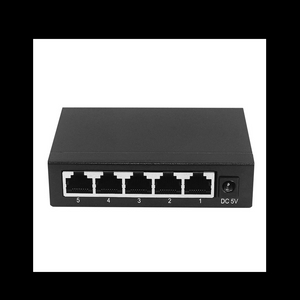

5-port Gigabit and Fast Ethernet network switch
