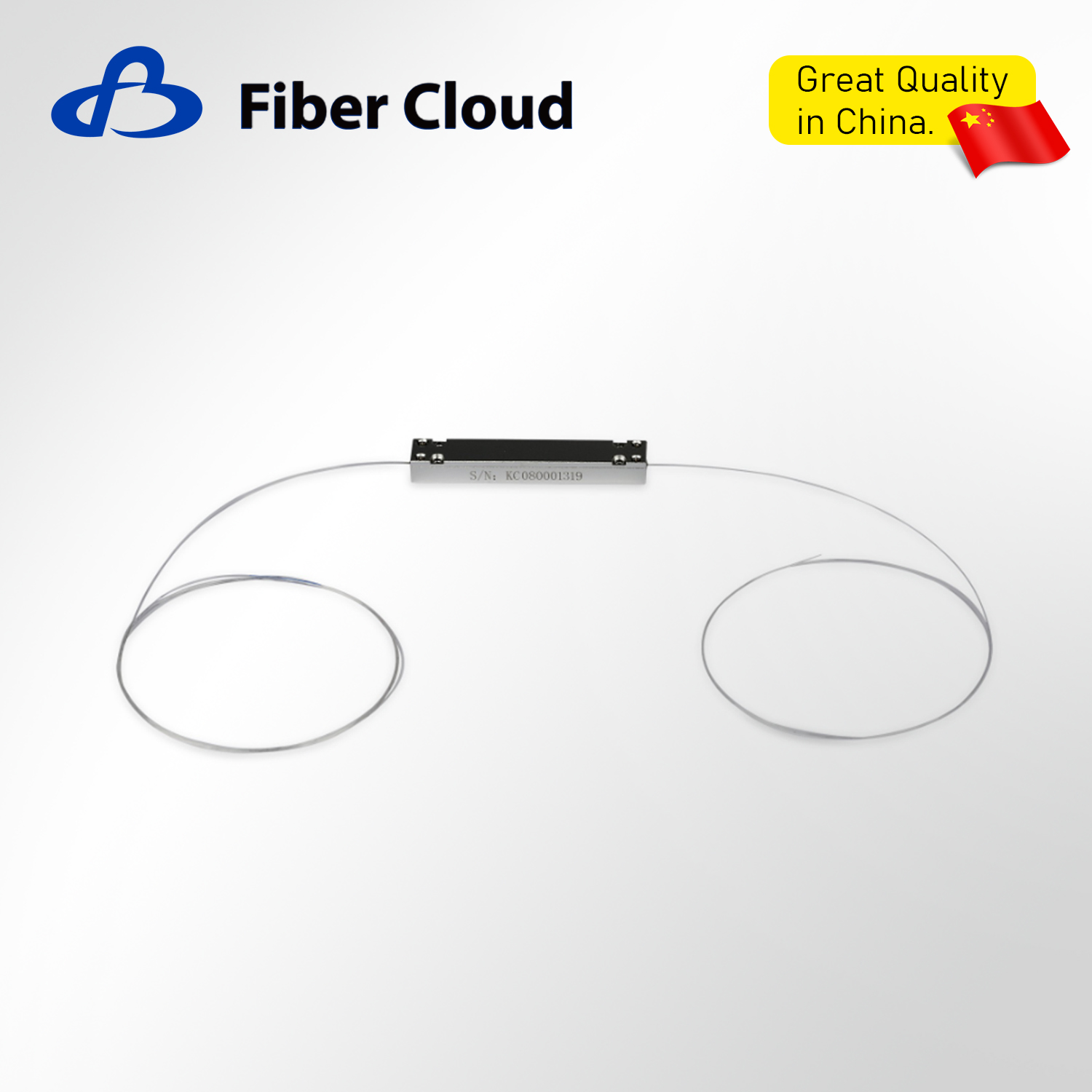

Optical Fibre Combiner (Optical Amplifier Module)

The multi-mode pump combiner is designed for high power EDFA. Excellent optical properties are obtained by the use of unique fusion tapering process. The input port includes two pump channels, and one signal channel, and the output port is double cladding fibre. The fibre type can be customized.
Characteristic
  • High pump efficiency
  • Low insertion loss
  • Customized
Availability:
Inquire Add to Basket

Product Description

Product Type

 MPC1-P12-S476 MPC2-P12-S476
Product Discription

（1+1）×1  Optical Fibre Combiner

（2+1）×1  Optical Fibre Combiner

Signal Operating wavelength (nm)

1500 - 1600, Typical 1550

Pump Operating wavelength (nm)

800 - 1000
Fibre Type

Input Pump Fiber

 SI 105/125 (0.22)

Input Signal Fiber

G.652.D or DCF 11/125 (0.12/0.46)

Output Fibre

 DCF 11/125（0.12/0.46）
Optical Properties
Pump Efficiency (%)

＞90 (Typical 93）

Insertion Loss (dB)

＜0.5 (Typical 0.3)

Isolator (dB)

≥25 (Typical 30)

Max Pump Power per Port (W)

 Typical 25
Environmental Properties
Operating Temperature (℃)

-5 to +70

Relative Humidity（RH%）

5 - 95

Storage Temperature (℃)

-40 to +85
Appearance
Dimensions (mm) 5×5×50，8×12×70

Fibre Length (m)

 1.0


Applications

  • CATV system

  • Communication system
