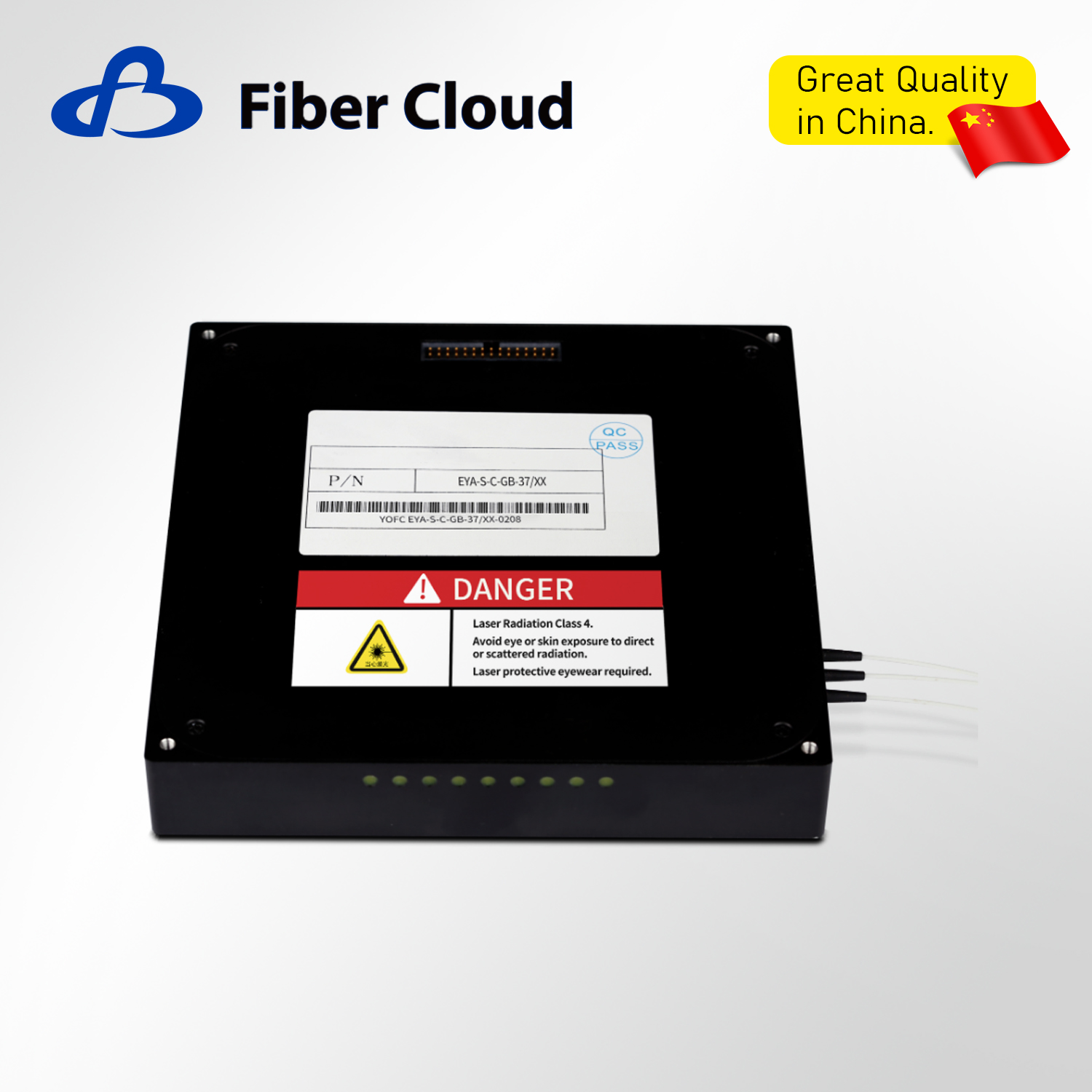

High Power EYDFA Optical Fiber Amplifier Structure Used in CATV System And FTTH

The high-power EYDFA adopts a two-stage amplifier structure, with the maximum output power up to 40dBm. It has been widely used in CATV system and FTTH. The product can work in ACC/APC/AGC mode and adopt high performance temperature control technology to empower the product good thermal performance in a wide temperature range.

Characteristic

High output power
ACC/APC/AGC operation mode
High stability and reliability
Customizable

Availability:



Inquire Add to Basket

Product Description

Product type	EYA-S- C- 6-XX/ XX- 1- 4/6* ①
Parameters	Minimum	Typical value	Maximum
Wavelength (nm)	1535	1550	1565
Input power (dBm)	-3	-	10
Output power (dBm)	30	-	40
Output power stability (dB)	± 0.1
Gain (dB)	-	40	-
Noise figure (dB)	6
Return loss (dB)	≤ -45
Gain slope accuracy (dBm)	0.6	0.8	1.0
Operating temperature (℃)	-5	-	55
Storage temperature (℃)	-40	-	85
Supply voltage (V)	11.4	12.0	12.6
Power consumption (W)	-	-	50
Communication interface	RS232/485
Electric connector	TEM-115-02-03.0-FG-D-L1 or Customizable
Optical interface type	FC/APC or Customizable
Tail fibre length (cm)	> 50
Dimension (mm)	200(L)×142(W)×30(H)
