| Availability: | |
|---|---|
Inner Conductor | Dielectric | Outer Conductor | Jacket | |

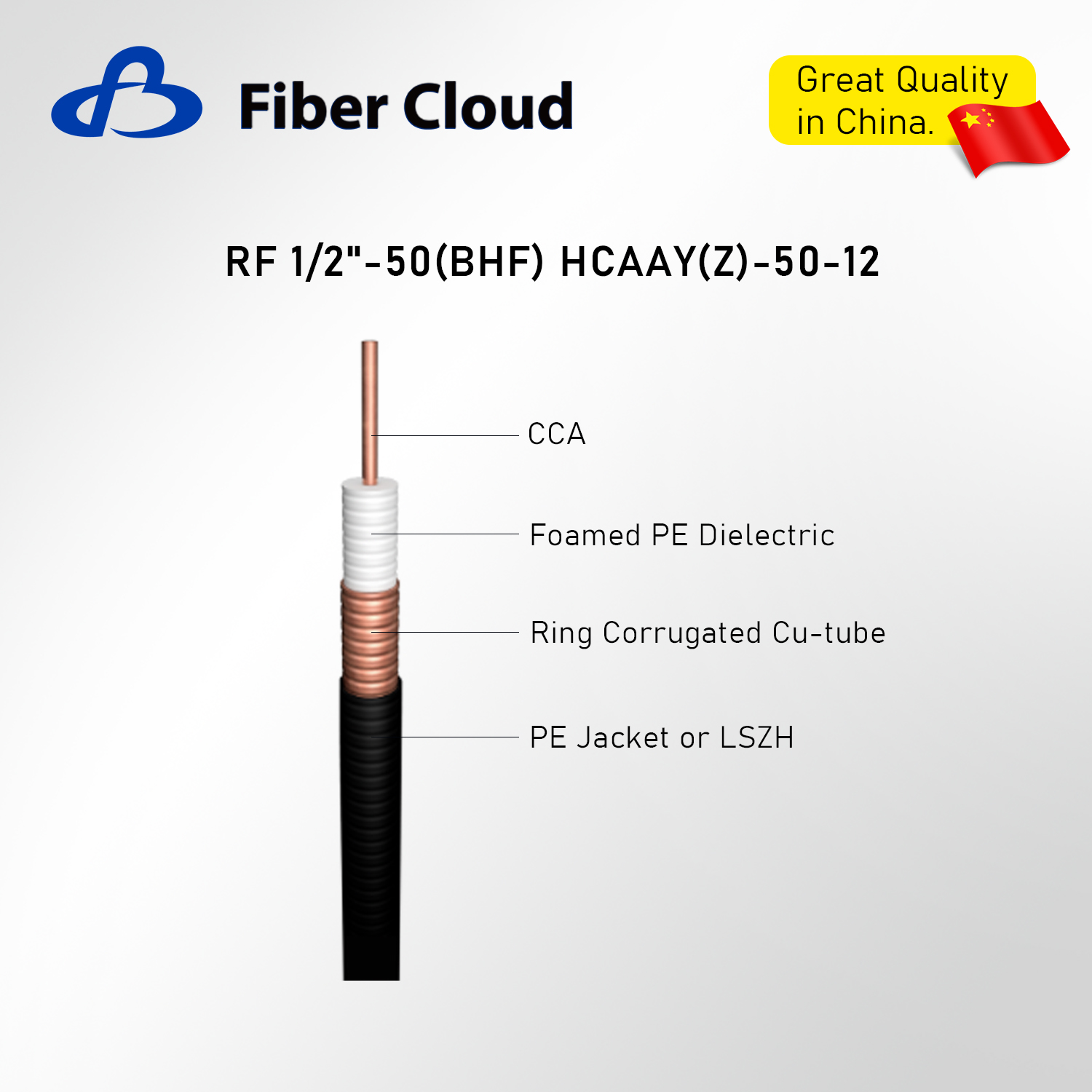

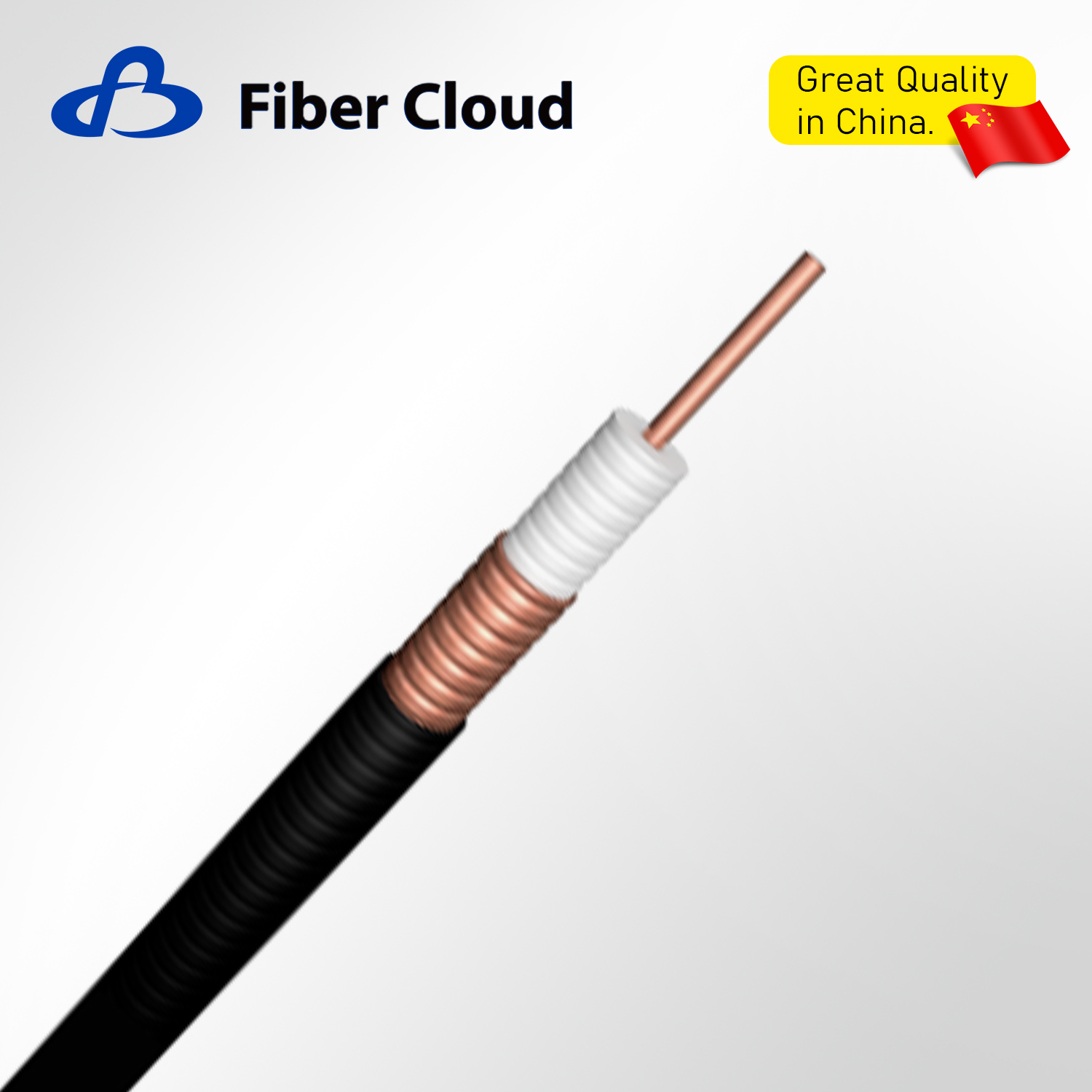

| RF 1/2" RF Coaxial Cable | 4.80mm | 12.10mm | 13.90mm | 16.00mm |
RFF 1/2" Superflexible RF Coaxial Cable | 3.55mm | 9.00mm | 11.90mm | 13.50mm |
RFF 1/3" Superflexible RF Coaxial Cable | 2.65mm | 6.80mm | 7.60mm | 8.80mm |
RF 7/8" RF Coaxial Cable | 9.00mm | 22.20mm | 24.90mm | 27.50mm |
RFA 7/8" RF Coaxial Cable | 9.40mm | 22.50mm | 25.40mm | 27.80mm |
RFA 1 1/4" RF Coaxial Cable | 13.00mm | 32.20mm | 35.80mm | 39.00mm |
RFA 1 5/8" RF Coaxial Cable | 17.60mm | 42.20mm | 46.30mm | 50.00mm |
Electrical Characteristics at +20℃
Characteristic Impedance | 50 ± 1Ω |
| Return Loss for | |
| 320 ‒ 480 MHz | As specified by customer |
700 ‒ 960 MHz | As specified by customer |
1700 ‒ 1880 MHz | As specified by customer |
1880 ‒ 2180 MHz | As specified by customer |
2300 ‒ 3000 MHz | As specified by customer |
3300 ‒ 3700 MHz | As specified by customer |
4800 ‒ 5000 MHz | As specified by customer |
Other Bands Also Available on Request | |
| Attenuation | See table |
Velocity Factor | 0.88 |
Capacitance | 76 pF/m |
Maximum Frequency | 9800 MHz |
Max Power Rating | See table |
Peak RF Voltage Rating | 1.8kV |
Peak Power Rating | 25.9 kW |
| Frequency（MHz） | 1200 | 1400 | 1600 | 1800 | 1900 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | 3500 | 4000 | 6000 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 8.05 | 8.77 | 9.44 | 10.1 | 10.4 | 10.7 | 11.3 | 11.9 | 12.4 | 12.9 | 13.5 | 14.7 | 15.9 | 20.2 |
| Power rating ambient +40℃ inner conductor +100℃KW | 1.0 | 0.90 | 0.84 | 0.79 | 0.76 | 0.74 | 0.70 | 0.66 | 0.63 | 0.61 | 0.58 | 0.54 | 0.48 | 0.39 | |
| Frequency（MHz） | 10 | 30 | 50 | 100 | 200 | 300 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 950 | 1000 | |
| Attenuation Ambient temperature +20℃dB/100m | Typical | 0.669 | 1.17 | 1.51 | 2.16 | 3.09 | 3.83 | 4.45 | 4.74 | 5.01 | 5.53 | 6.01 | 6.45 | 6.88 | 7.09 | 7.29 |
| Power rating ambient +40℃ inner conductor +100℃KW | 12 | 6.9 | 5.3 | 3.7 | 2.6 | 2.1 | 1.8 | 1.7 | 1.6 | 1.5 | 1.3 | 1.2 | 1.2 | 1.1 | 1.1 | |
Weight | Crush Resistance | Maximum Pulling Force | Single Bending | Repeated Bending | Operating Temperature Range | Min. installation temperature |
| 230kg/km | 20N/mm | 1130N | 80 mm | 125 mm | -55℃ to +80℃ | See Jacketing Options |
Type | Jacket | IEC60754-1/-2 halogenfree, noncorrosive | IEC61034 low smoke emission | IEC60332-1/3C fire retardant | Min. installation temperature |
| HCAAY-50-12 | Black polyethylene | Yes | No | No | -40℃ |
HCAAYZ-50-12 | Black halogen free fire retardant thermoplastic | Yes | Yes | Yes | -20℃ |
